SQUARE D

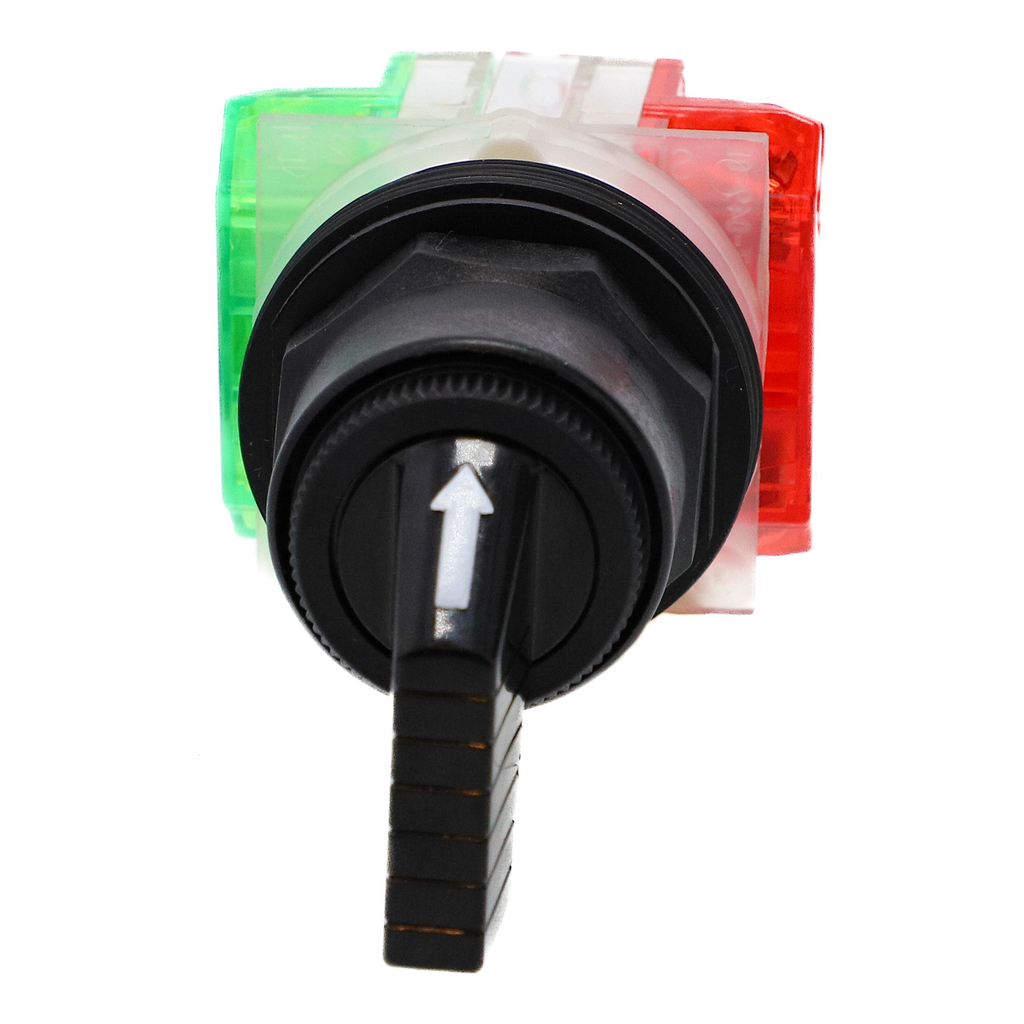

Selector switch, Harmony 9001SK, plastic, long handle, black, 30mm, 3 positions, spring return right to center, 1 NC + 1 NO

SELECTOR SWITCH 600VAC 10A 30M

SQD9001SKS72FBH37 9001SKS72FBH37 785901398769
148.18 / EACH
http://schema.org/OutOfStock
This selector switch provides a versatile interface for controlling your machines It provides an effective manner to set your machine in various operating modes It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
QTY
  • Specifications
  • Specifications
    • Range Of Product : Harmony 9001SK
    • Product Or Component Type : selector switch
    • Device Short Name : 9001SK
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Contacts Type And Composition : 1 NC + 1 NO
    • Bezel Material : plastic
    • Operator Position Information : 3 positions
    • Mounting Diameter : 30 mm
    • Device Presentation : complete product
  • Offer Sustainability
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP120820EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Environment
    • Product Certifications : CSA LR24590 class 3211 03 || CE || UL listed file E42259 CCN NKCR
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/4X/6/12/13
    • Electrical Shock Protection Class : class II IEC 61140
    • Protective Treatment : TC
    • Ip Degree Of Protection : IP66 IEC 60529
