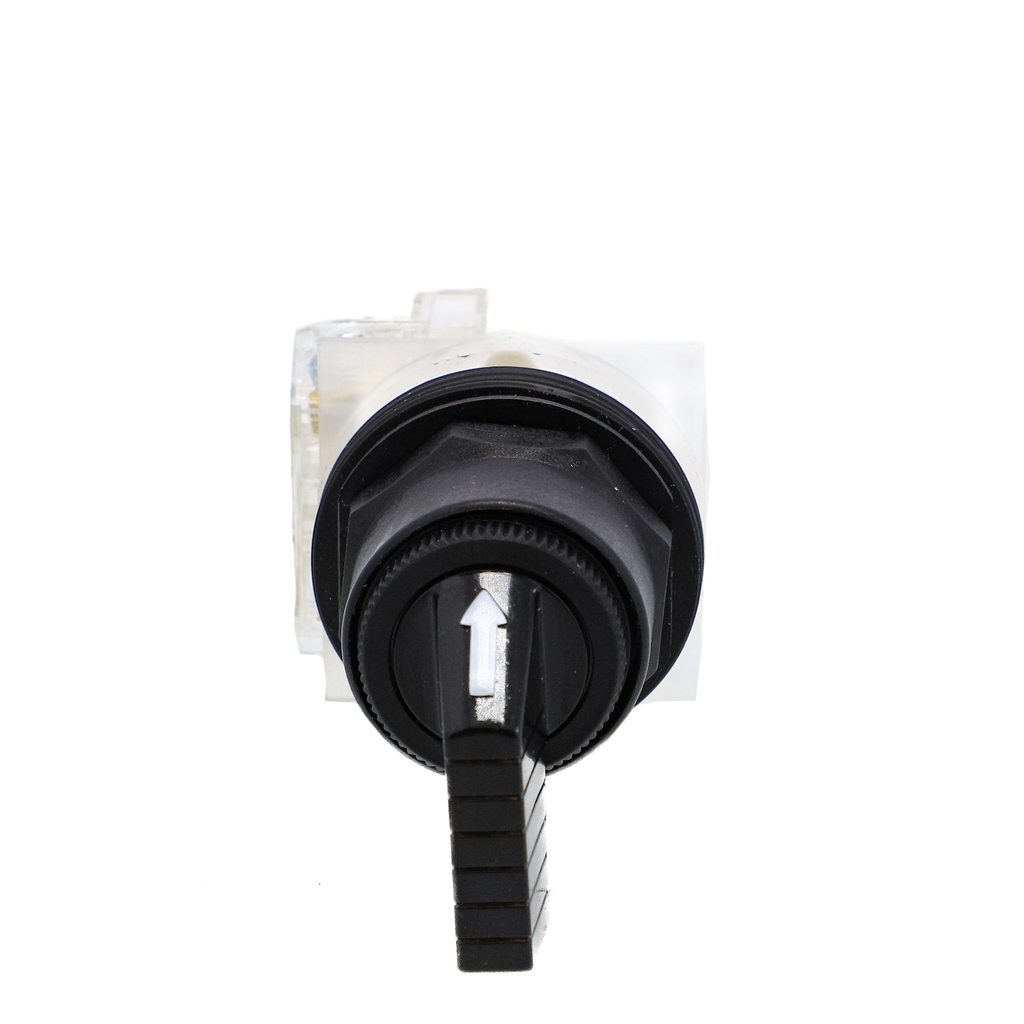

Selector switch, Harmony 9001SK, plastic, long handle, black, 30mm, 3 positions, stay put, 1 C/O

SELECTOR SWITCH 600VAC 10A 30M

SQD9001SKS43FBH13 9001SKS43FBH13 785901043812
113.83 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Selector switch, Harmony 9001SK, plastic, long handle, black, 30mm, 3 positions, stay put, 1 C/O-2
  • Bezel Material: Plastic
  • Certifications: CE, CSA LR24590 Class 3211 03, UL Listed File E42259 CCN NKCR
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony 9001SK, black selector switch with long handle and C cam has 3 positions, operates with a stay-put mechanism. It has a double insulated plastic bezel and uses screw-clamp terminals and has 1 x NO + 1 x NC contacts. This selector switch with long handle provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Specifications
This Harmony 9001SK, black selector switch with long handle and C cam has 3 positions, operates with a stay-put mechanism. It has a double insulated plastic bezel and uses screw-clamp terminals and has 1 x NO + 1 x NC contacts. This selector switch with long handle provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Environment
    • Product Certifications : UL listed file E42259 CCN NKCR || CSA LR24590 class 3211 03 || CE
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/4X/6/12/13
    • Electrical Shock Protection Class : class II IEC 61140
    • Protective Treatment : TC
    • Ip Degree Of Protection : IP66 IEC 60529
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP120820EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • Contacts Type And Composition : 1 C/O
    • Bezel Material : plastic
    • Cam Profile : 3
    • Product Compatibility : 9001KA1 side 1 or 2
    • Operator Position Information : 3 positions
    • Mounting Diameter : 30 mm
    • Operator Profile : long handle
    • Type Of Operator : stay put
    • Cap/Operator Or Lens Colour : black
    • Size : 30 mm
    • Device Presentation : complete product
  • Specifications
    • Range Of Product : Harmony 9001SK
    • Operator Profile : black long handle
    • Type Of Operator : stay put
    • Product Or Component Type : selector switch
    • Device Short Name : 9001SK
