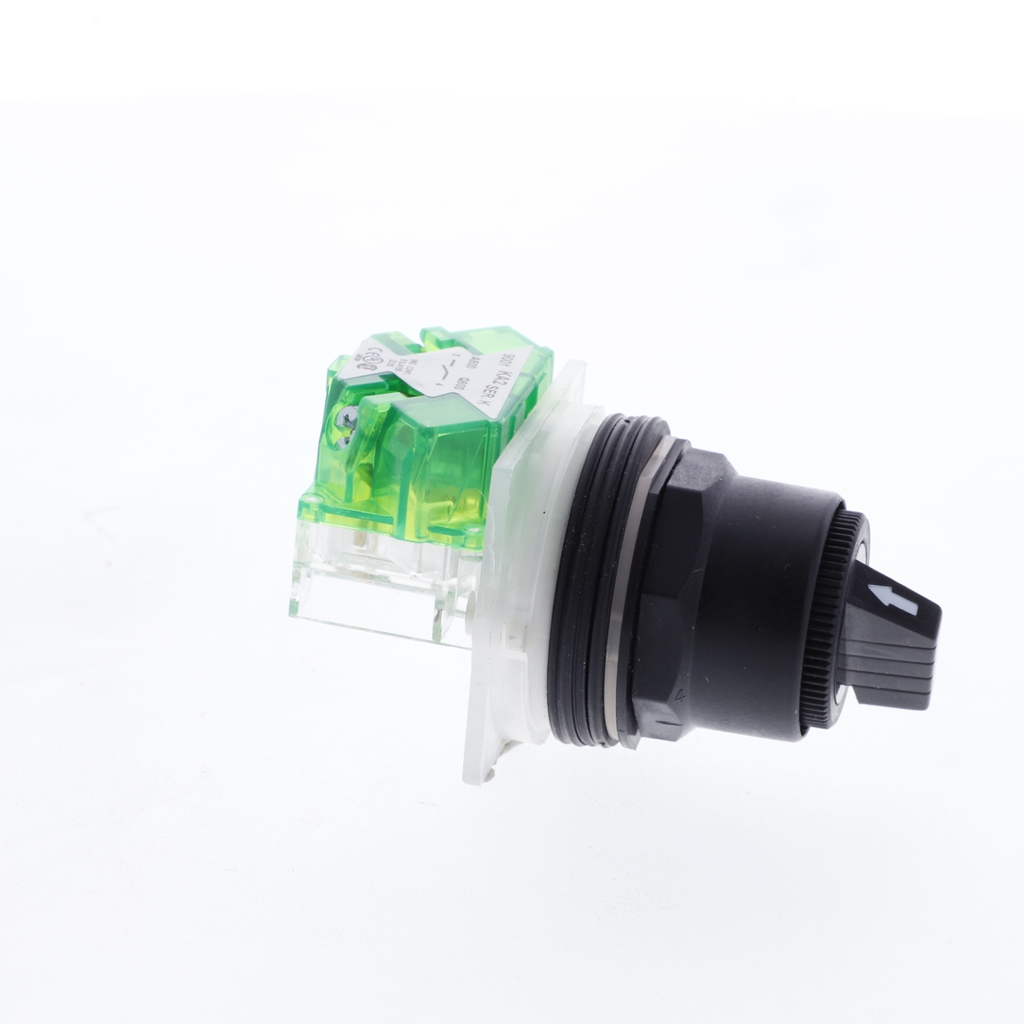

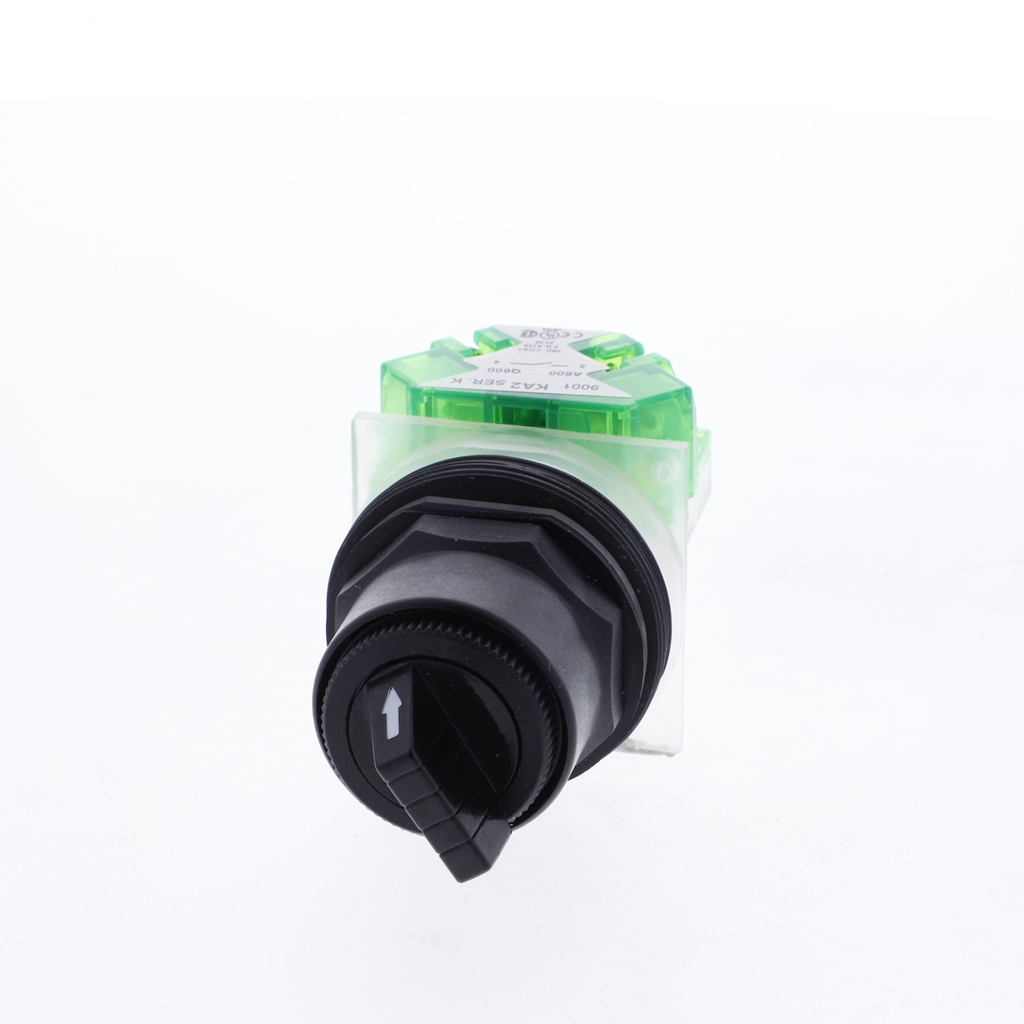

Selector switch, Harmony 9001SK, plastic, standard handle, black, 30mm, 2 positions, stay put, 1 NO

SELECTOR SWITCH 600VAC 10A 30M

SQD9001SKS11BH5 9001SKS11BH5 785901043553
96.30 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Selector switch, Harmony 9001SK, plastic, standard handle, black, 30mm, 2 positions, stay put, 1 NO-2
  • Bezel Material: Plastic
  • Warranty Length: 18 mth
This Harmony 9001SK, selector switch with a standard black handle has 2 positions and operates with a stay-put mechanism. This selector switch is equipped with one normally open (N/O) contact. It is easily installed into standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its IP66 rating, making it ideal for operation in harsh environments It complies with many international certifications, including CE, SA LR24590 class 3211 03 and UL-listed file E42259 CCN NKCR. Harmony 9001SK is a range of heavy-duty plastic pushbuttons, selector switches, pilot lights, and specialty operators. The Harmony 9001SK units, with a double insulated bezel, are designed for applications requiring high resistance to corrosion.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001SK, selector switch with a standard black handle has 2 positions and operates with a stay-put mechanism. This selector switch is equipped with one normally open (N/O) contact. It is easily installed into standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its IP66 rating, making it ideal for operation in harsh environments It complies with many international certifications, including CE, SA LR24590 class 3211 03 and UL-listed file E42259 CCN NKCR. Harmony 9001SK is a range of heavy-duty plastic pushbuttons, selector switches, pilot lights, and specialty operators. The Harmony 9001SK units, with a double insulated bezel, are designed for applications requiring high resistance to corrosion.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Electrical Shock Protection Class : class II conforming to IEC 61140, class II conforming to IEC 61140
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-16
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 2 - SELECTED (Migration)
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : plastic
    • Compatibility Code : 9001SK
    • Device Short Name : 9001SK
    • Mounting Diameter : 30 mm
    • Operator Position Information : 2 positions
    • Package Weight Lbs : 77.111 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : selector switch
    • Range Of Product : Harmony 9001SK
    • Returnability : No
    • Sustainable Packaging : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Pep Code : ENVPEP2503027EN
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP66 IEC 60529, IP66 IEC 60529
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/4X/6/12/13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : selector switch
    • Range Of Product : Harmony 9001SK
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Overview Attributes
    • Device Presentation : complete product
