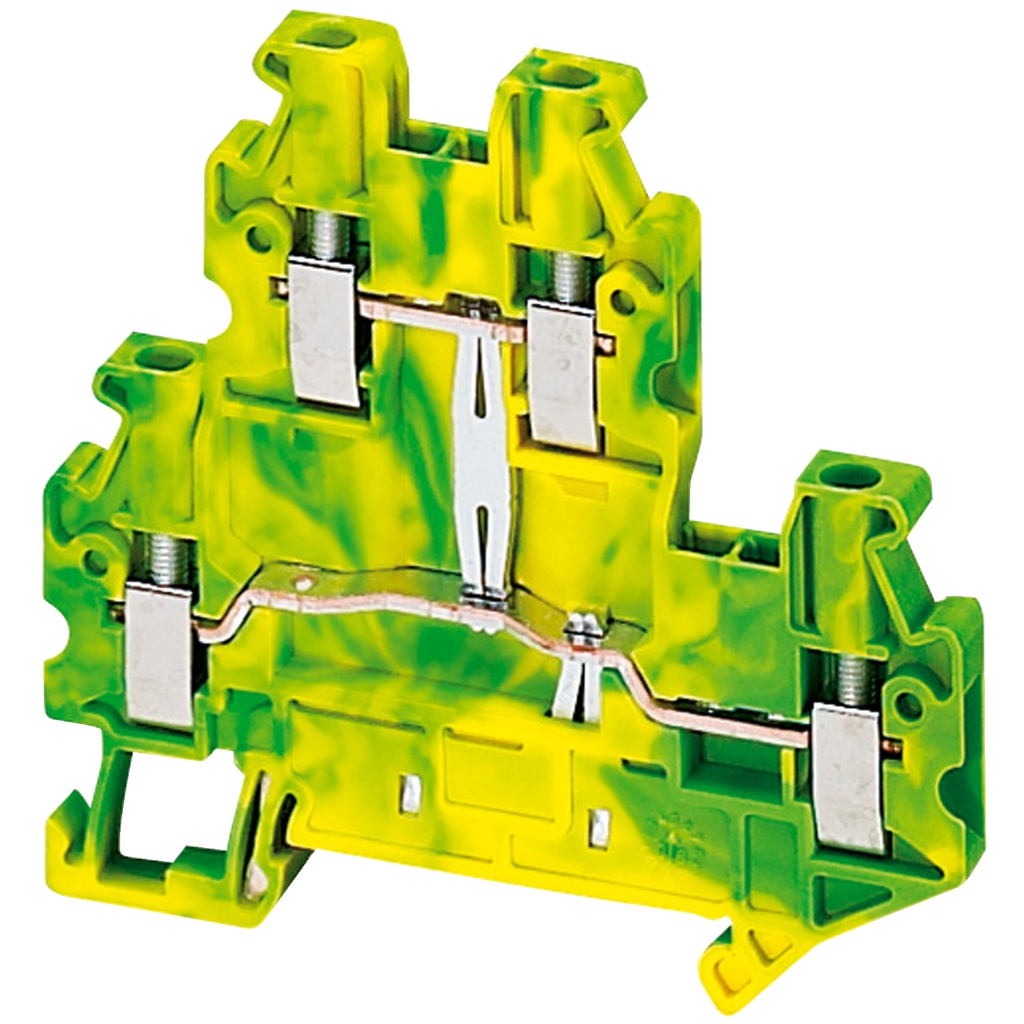

Linergy TR is terminal block for protective earth. It belongs to linergy protective earth terminal block with 2.5 mm² nominal cross section. Mounting by clip-on and top connection by Two-level 2x2 push-in terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT ,Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, IECEx, GL, LR).

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Color Options : NSYTRV24D, NSYTRV24DBL
• Color : green-yellow
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SI
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Cable Cross Section : 0.14-4 mm², solid, 0.2-2.5 mm², flexible with cable end, 0.14-4 mm², flexible without cable end
• Creep Resistance : 500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
• Dielectric Loss : 0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
• Range Compatibility : PrismaSeT G, PrismaSeT P, PrismaSeT Pack 250, PanelSeT, TeSys, Mureva, PrismaSeT XS
• Resistivity : 10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
• Surface Resistance : 1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
• Tool Type : connection screwdriver, disconnection screwdriver
• Carbon Footprint Of The Distribution Phase A4 : 0.002662373, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.049863535
• Carbon Footprint Of The Installation Phase A5 : 0.001126191, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.1 kg CO2 eq., 0.110061314
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 4 kg CO2 eq., 4.4787
• Connections Terminals : 1 x screw terminal upstream, 1 x screw terminal downstream
• Color Options : NSYTRV24D, NSYTRV24DBL
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-10
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : terminal block
• Connection Position : sideways
• Device Short Name : TRV
• Dielectric Constant : 3.7 at 1 MHz
• Dielectric Strength : 1000 V IEC 60243-1
• Flame Retardance : V0 0.8 mm UL 94
• Halogen Free Status : Halogen free plastic parts product
• Material : polyamide 6/6: insulating case
• Nominal Cross Section : 2.5 mm²
• Package Weight Lbs : 20.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : terminal block
• Range : Linergy
• Range Of Product : Linergy
• Returnability : Yes
• Sustainable Packaging : Yes
• Terminal Block Type : protective earth
• Tightening Torque : 0.5-0.6 N.m
• Total Lifecycle Carbon Footprint : 5 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2309022EN
• Pep Verification Date : 2023-12-03
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent external review
• Functional Unit Description : Connect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 21 A, a rated cross-section 2.5 mm2, a rated voltage 690 V.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Environment Attributes Main
• Ambient Air Temperature For Operation : -40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• ROHS Exemption Information : Yes
• Take Back : No
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Silicon Free : Yes
• Carbon Footprint : 4.642413413
• Environmental Disclosure : ENVPEP2309022EN
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2309022EN
• Pep Verification Date : 2023-12-03
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : terminal block
• Range Of Product : Linergy
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Number Of Measurement Input : 4
