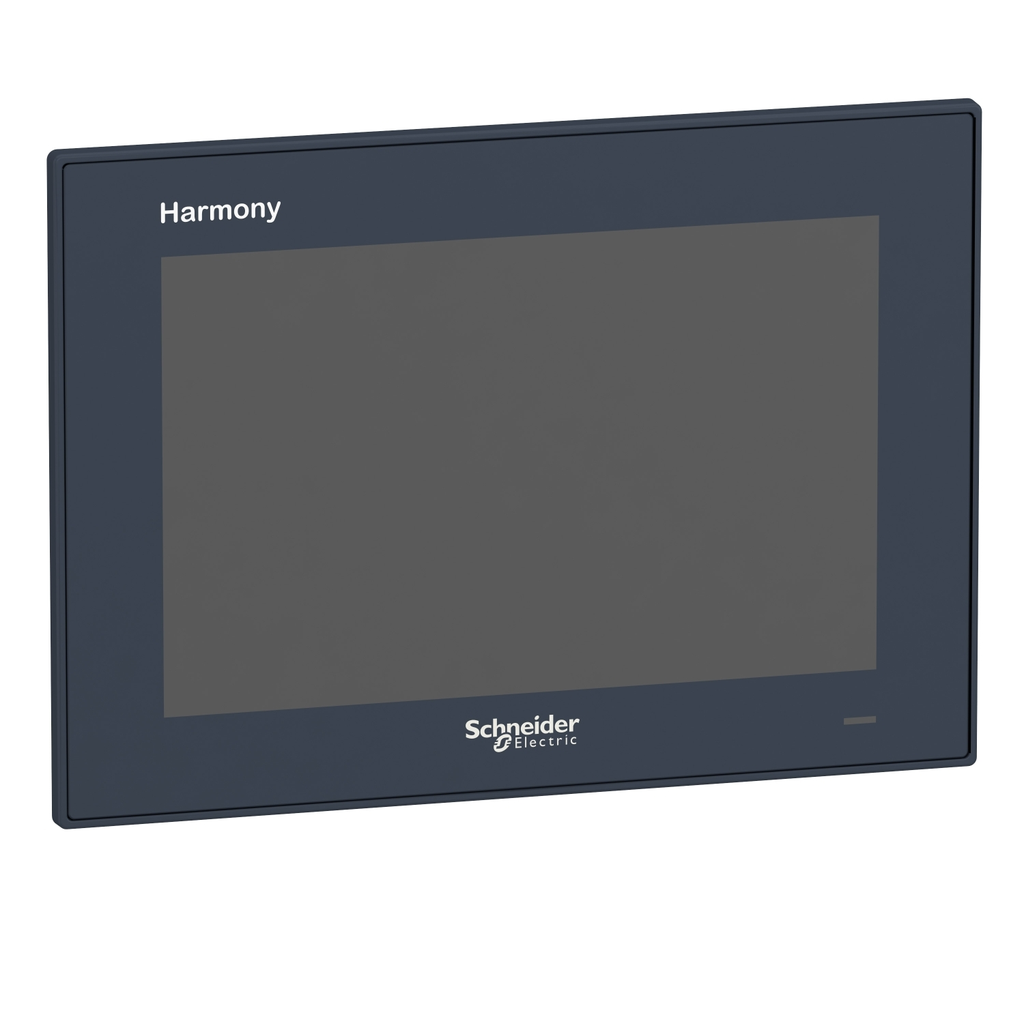

This product is part of the Harmony iPC range, an offer of Harmony HMIPSO S-Panel PCs. These simple-in-design PCs with Intel Atom dual-core CPU cater for the performance requirements of most automation applications in the field. It features a 10" LCD mul

• Memory Type
• 4 GB RAM DDR3 internal
• Free Slots
• 1 Internal SATA HDD/SSD
• 1 CFast
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.31860357142857143
• 0.3 kg CO2 eq.
• Display Size
• 10" wide multi-touch
• 10.1 inch
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 4 kg CO2 eq.
• 3.822857142857143
• Standards
• UL 60950
• CSA C22.2 No. 60950
• FCC Part 15 class A
• CISPR 11
• IEC 61000-6-4
• IEC 61000-6-2
• IEC 60950
• Ip Degree Of Protection
• IP66 front panel:
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 230 kg CO2 eq.
• 230.42857142857144
• Data Storage Equipment
• 128 GB extension back side SSD 1500000 h
• Processor Name
• Intel Atom E3827 dual core at 1.75 GHz
• Vibration Resistance
• 1 gn 5-500 Hz)HDD
• 2 gn 5-500 Hz)SSD
• 2 gn 5-500 Hz)Cfast card
• Type Of Cooling
• fanless
• passive
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 1 994 kg CO2 eq.
• 1994.348571428571
• Number Of Slots
• 1 mini PCI Express full-size
• Display Type
• colour TFT LCD
• LED
• Relative Humidity
• 10-95 % non-condensing
• Directives
• 2004/108/EC - electromagnetic compatibility
• 2006/95/EC - low voltage directive
• Us Rated Supply Voltage
• 24 V DC +/- 20 %
• 100...240 V AC with additional adaptor HMIYPSOMAC1
• Carbon Footprint Of The Distribution Phase A4
• 0.7817857142857143
• 0.8 kg CO2 eq.
• Mechanical Robustness
• hardness anti-scratch 7H
• Operating System
• Windows 10 IoT Enterprise 64 bitmulti-language
• Software Package
• EcoStruxture secure connect advisor annual subscription cyber security license not included
• EcoStruxture secure connect advisor annual subscription cyber security
• Local Signalling
• buzzer
• LED (green) for on
• LED (orange) for stand-by
• Ambient Air Temperature For Operation
• 0-55 °C SSD
• 0-55 °C Cfast card
• 0-45 °C HDD
• 0-45 °C Mini PCIe
• Product Certifications
• AS/NZS
• C-tick
• CCC
• CE
• RCM
• EAC

• Physical Attributes
• Display Color : 267000 colours
• Complementary Attributes
• Line Rated Current : 1.9 A
• Important Information Attributes
• B2B Bullet Point 1 : 10" wide TFT multi-touch screens, LED backlight, IP66 protection, and 7H hardness anti-scratch front
• B2B Bullet Point 2 : Maintenance-free non-rotating parts and operation up to +55 °C/131 °F
• B2B Bullet Point 3 : Integration of software applications such as HMI EcoStruxure Operator Terminal Expert and third-party Windows software
• B2B Bullet Point 4 : Expansions with optional interfaces based on mini PCIe (Com, USB, HD audio, Video, networks, wireless, etc.)
• B2B Bullet Point 5 : Available with Windows 10 or without an operating system in Configured-to-order offer
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Device Type : HMI - Industrial PC
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 7 year(s)
• Manufacturing Carbon Footprint : 230.428571428571
• Distribution Carbon Footprint : 0.781785714285714
• Installation Carbon Footprint : 0.318603571428571
• Use Carbon Footprint : 1994.34857142857
• End Of Life Carbon Footprint : 3.82285714285714
• WEEE Applicability : Finished product
• WEEE Scope : In
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2307029EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 2527
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 4
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Aspect Ratio : 16:9
• Chipset Type : Intel Atom SoC
• Cut Out Dimensions : 274.6 (+/- 0.7) x 193.8 (+/- 0.4)
• Display Color : 267000 colours
• Display Resolution : 1280 x 800 pixels WSVGA
• F Gas Free : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Function Available : operate with water on screen
• Halogen Free Status : Product contains halogen above thresholds
• Luminance : 300 cd/m²
• Main Type : Optimised
• Number Of Points : 5
• Package Weight Lbs : 4.765 kg
• Pixel Resolution : 4096 x 4096
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : multi-touch screen
• Range Of Product : Harmony iPC
• Returnability : No
• Silicone Free : No
• Sustainable Packaging : No
• Terminal Type : touchscreen display
• Total Lifecycle Carbon Footprint : 2 230 kg CO2 eq.
• Touch Panel : projected capacitive technology (PCT)
• Video Controller Type : Intel HD Graphics
• View Angle Horizontal X Vertical : 160 x 160°
• Watchdog Timer : 1-255 ms
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 2229.7003892857138
• Relationshiptype : Compatible relationship
• Accessories : HMIYPSOMAC1
• General Attributes
• Product Or Component Type : multi-touch screen
• Range Of Product : Harmony iPC
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=435834349&lang=en-us
• Take Back : No
• Halogene Performance : Product contains halogen above thresholds
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Silicon Free : No
• Carbon Footprint : 2229.70038928571
• Ambient Air Temperature For Storage : -20-60 °C
• Circularity Profile : ENVEOLI2307029EN
• Environmental Disclosure : ENVPEP2307029EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• F Gas Usage Performance : Only air and vacuum used for insulation / breaking, no F-gas including SF6
• Halogen Content Performance : Product contains halogen above thresholds
• Operating Altitude : 2000
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Specifications
• Height : 7.96 in
• Width : 11.15 in
• Depth : 3.37 in
• Batteries & Runtime Attributes
• Removable Battery : USER_REPLACEABLE
