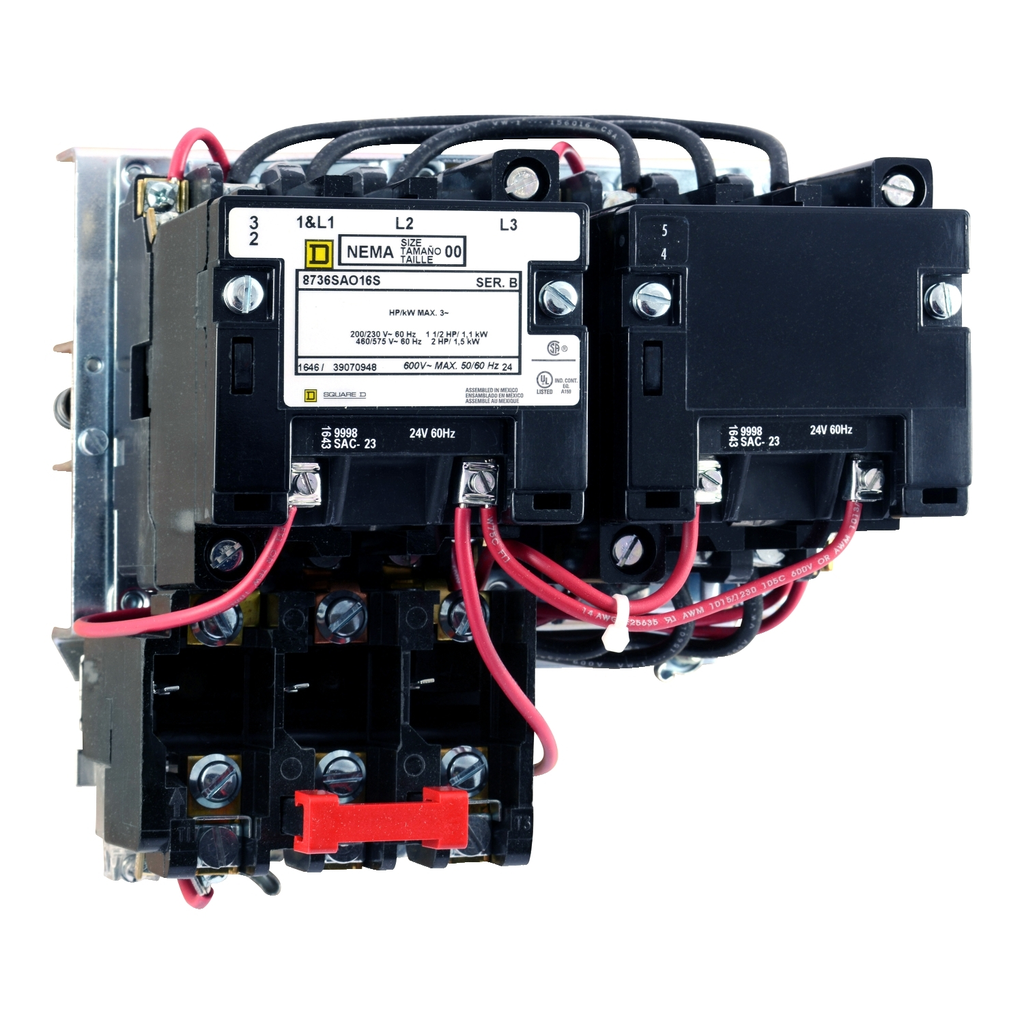

Type S NEMA reversing magnetic starters are used for full voltage starting, stopping, and reversing AC squirrel cage motors. NEMA 8736 reversing starters are available in NEMA Sizes 00 to 7 and have ratings up to 810 amperes. NEMA reversing starters cons

• Uc Control Circuit Voltage
• 110 V AC 50 Hz
• 120 V AC 60 Hz
• Rated Power In Hp
• 7.5 HP 200 V AC
• 7.5 HP 230 V AC
• 10 HP 460 V AC
• 10 HP 575 V AC
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Ue Rated Operational Voltage
• 600 V AC
• Accessories
• 9999SX6
• 9999SX7
• 9999SX8
• 9999SX11
• 9999SX12
• 9999ST1
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• Thermal Overload Type
• melting alloy 3
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Product Certifications
• UL Listed
• CSA

• Complementary Attributes
• Control Circuit : separate control circuit
• Line Rated Current : 27 A
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Flexible with four overload relays types
• B2B Bullet Point 2 : Customizable with hundreds of combinations
• B2B Bullet Point 3 : Streamline installation, wiring, maintenance and field modifications
• B2B Bullet Point 4 : Reliable build for long mechanical life and electrical endurance
• B2B Bullet Point 5 : Ideal for use in construction, industrial markets, building automation
• B2B Bullet Point 6 : This product is TAA compliant.
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-17
• ETIM 10 : EC001037
• Html Descr : Reversing magnetic starter, Size 1, 27 A, 3P, 110/120 VAC 50/60 Hz coil, melting alloy overload, open style
• Manufacturer : Schneider Electric
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• ROHS Eur In Scope : Yes
• ROHS Eur Status : Will not be Compliant
• ROHS Eur Full Compliance Status : Not compliant
• ROHS Eur Full Compliance Status Id : NOT_COMPLIANT
• China ROHS In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Control Units : no control units
• Electrical Connection : screw clamp terminals
• Installation Direction : horizontal
• Local Signalling : without pilot light
• Motor Starter Type : reversing
• Package Weight Lbs : 4.536 kg
• Phase : 3 phase
• Poles Description : 3P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : starter
• Range Of Product : S
• Returnability : Yes
• Sustainable Packaging : Yes
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Wiring Mode : 3 wires
• Relationshiptype : Compatible relationship
• General Attributes
• Phase : 3 phase
• Product Or Component Type : starter
• Range Of Product : S
• Environment Attributes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=541093&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Eu Rohs Directive : Not compliant
• Nema Degree Of Protection : not rated (open device)
• Nema Size : 1
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Height : 6.91 in
• Width : 7.13 in
• Compliance : TAA
• Depth : 5.28 in
