Regulated Power Supply, 100 to 240V AC, 24V, 3.8A, single phase, Optimized

REGULATED POWER SUPPLY, 100-24

SQDABLS1A24038 ABLS1A24038 3606481500212
232.49 / EA
http://schema.org/OutOfStock
Mayer-DDS-Regulated Power Supply, 100 to 240V AC, 24V, 3.8A, single phase, Optimized-2
  • Dielectric Strength: 3000 V
  • Input Voltage: ...240 V
  • Output Voltage: 24 V

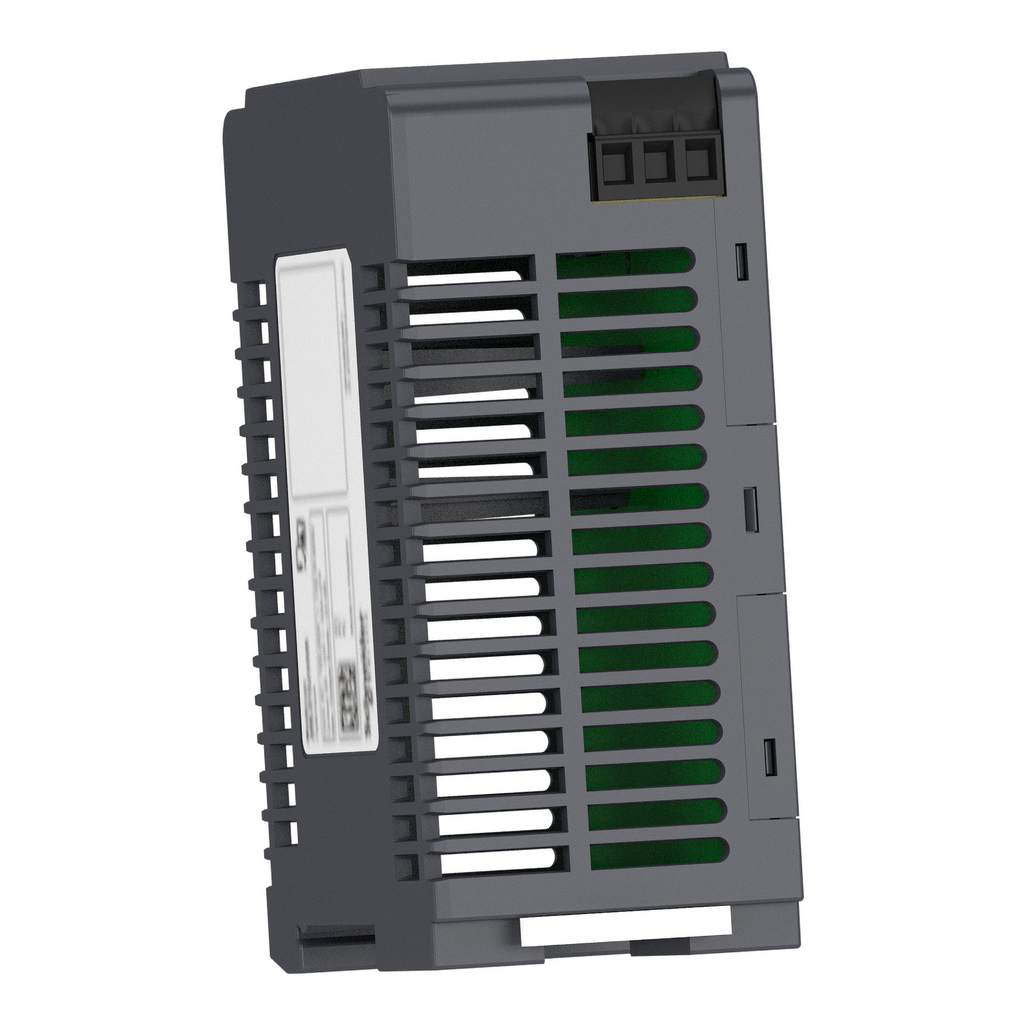

This ABLS regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 3,8A at 24V DC and a rated power output of 91,2W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 45mm, its height is 75mm, its depth is 100mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.325kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 6A, C curve or 10A, B-curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to its compact housing, it can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : CE, cUL Listed, cUL Recognized, RCM, CB Scheme, EAC, KC, NEC class 2
  • Complementary Attributes
    • Maximum Leakage Current : 1 mA 240 V AC
  • Important Information Attributes
    • Persona Type Ids : EU, OM, OM8
    • Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    • Current Consumption : < 1.2 A 115 V AC, < 1.2 A 115 V AC, < 1.2 A 115 V AC, < 0.6 A 230 V AC, < 0.6 A 230 V AC, < 0.6 A 230 V AC
    • Earthing System : TN, TT, IT
    • Efficiency : 87 % 115 V AC, 89 % 230 V AC
    • Electromagnetic Compatibility : immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2, immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2, immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to IEC 61000-4-3, immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to IEC 61000-4-3, immunity to fast transients - test level: 4 kV (on input-output) conforming to IEC 61000-4-4, surge immunity test - test level: 4 kV (between power supply and earth) conforming to IEC 61000-4-5, surge immunity test - test level: 3 kV (between phases) conforming to IEC 61000-4-5, immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to IEC 61000-4-6, immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to IEC 61000-4-8, immunity to voltage dips conforming to IEC 61000-4-11, disturbing field emission conforming to EN 55016-2-3, limits for harmonic current emissions conforming to IEC 61000-3-2, conforming to EN 55016-1-2, conforming to EN 55016-2-1
    • Electromagnetic Emission : conducted emissions IEC 61000-6-3, radiated emissions IEC 61000-6-4
    • Holding Time : > 20 ms 100 V AC, > 20 ms 100 V AC, > 20 ms 100 V AC, > 50 ms 230 V AC, > 50 ms 230 V AC, > 50 ms 230 V AC
    • Inrush Current : 45.0 A 115 V, 70.0 A 230 V
    • Line And Load Regulation : < 1 % network 0 to 100 % load at 25 °C, < 1 % network 0 to 100 % load at 25 °C, < 1 % network 0 to 100 % load at 25 °C, < 2 % network full voltage range in line at 25 °C, < 2 % network full voltage range in line at 25 °C, < 2 % network full voltage range in line at 25 °C
    • Mounting Support : top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, double-profile DIN rail
    • Power Factor : 0.90 at 115 V AC, 0.85 at 230 V AC
    • Supply : SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41
    • Vibration Resistance : 3 mm (f= 2-9 Hz) conforming to IEC 60068-2-6, 10 m/s² (f= 9-200 Hz) conforming to IEC 60068-2-6
    • Meantime Between Failure MTBF : 1500000 h at 25 °C, full load conforming to SR 332, 600000 h at 55 °C, 80 % load conforming to SR 332
    • Carbon Footprint Of The Distribution Phase A4 : 0.1475210034938676, 0.1 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.9357319741253928, 0.9 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.003936604130490754
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 10 kg CO2 eq., 10.43627653154866
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 643 kg CO2 eq., 642.6166134996078
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • HTML Description : Regulated Power Supply, 100-240V AC, 24V 3.8 A, single phase, Optimized
    • Manufacturer : Schneider Electric
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2001002EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Dielectric Strength : 3000 V AC with input to output
    • Efficiency At Full Load : 85...264 V AC
    • Electrical Shock Protection Class : class I
    • Load Capacitance : 3000 µF
    • Package Weight Lbs : 374.0 g
    • Power Supply Type : regulated switch mode
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : power supply
    • Range Of Product : Modicon Power Supply
    • Returnability : Yes
    • Service Life : 10 year(s)
    • Shock Resistance : 150 m/s² 11 ms
    • Status Led : 1 LED (Green) output voltage
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 654 kg CO2 eq.
    • Variant Option : optimized
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Connections Terminals : screw connection 0.5...2.5 mm², AWG 20...AWG 14) input/output
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2001002EN
    • Pep Verification Date : 2025-09-18
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : To supply control circuits in industrial atmosphere up to 480W at 100% for 10 years.To supply control circuits in industrial atmosphere up to 480W at 100% for 10 years.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
    • Product Manager : CHUNPING BAILLET
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m), -20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m), -20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m), -20--10 °C with current derating of 2 % per °C mounting position A < 6561.68 ft (2000 m), -10-55 °C without derating mounting position A < 6561.68 ft (2000 m), -10-55 °C without derating mounting position A < 6561.68 ft (2000 m), -10-55 °C without derating mounting position A < 6561.68 ft (2000 m), -10-55 °C without derating mounting position A < 6561.68 ft (2000 m), 55-70 °C with current derating of 3.33 % per °C mounting position A < 6561.68 ft (2000 m)
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 654.1400796129061
    • Circularity Profile : ENVEOLI2001002EN
    • Environmental Disclosure : ENVPEP2001002EN
    • IP Degree Of Protection : IP20
    • Operating Altitude : < 6561.68 ft (2000 m)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2001002EN
    • Pep Verification Date : 2025-09-18
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : power supply
    • Range Of Product : Modicon Power Supply
  • Output Attributes
    • Output Protection Type : against overload and short-circuits, protection technology: automatic reset, against over temperature, protection technology: manual reset, against overvoltage, protection technology: manual reset
    • Output Coupling : serial
    • Output Voltage : 24 V DC
  • Input Attributes
    • Efficiency : 87 % 115 V AC, 89 % 230 V AC
    • Input Protection Type : integrated fuse (not interchangeable) 3.15 A, external protection (recommended) 20 A Curve C, external protection (recommended) 10 A Curve B, external protection (recommended) 6 A Curve C
    • Input Voltage : 100...240 V AC single phase, 100...240 V AC phase to phase
    • Efficiency At Full Load : 85...264 V AC
