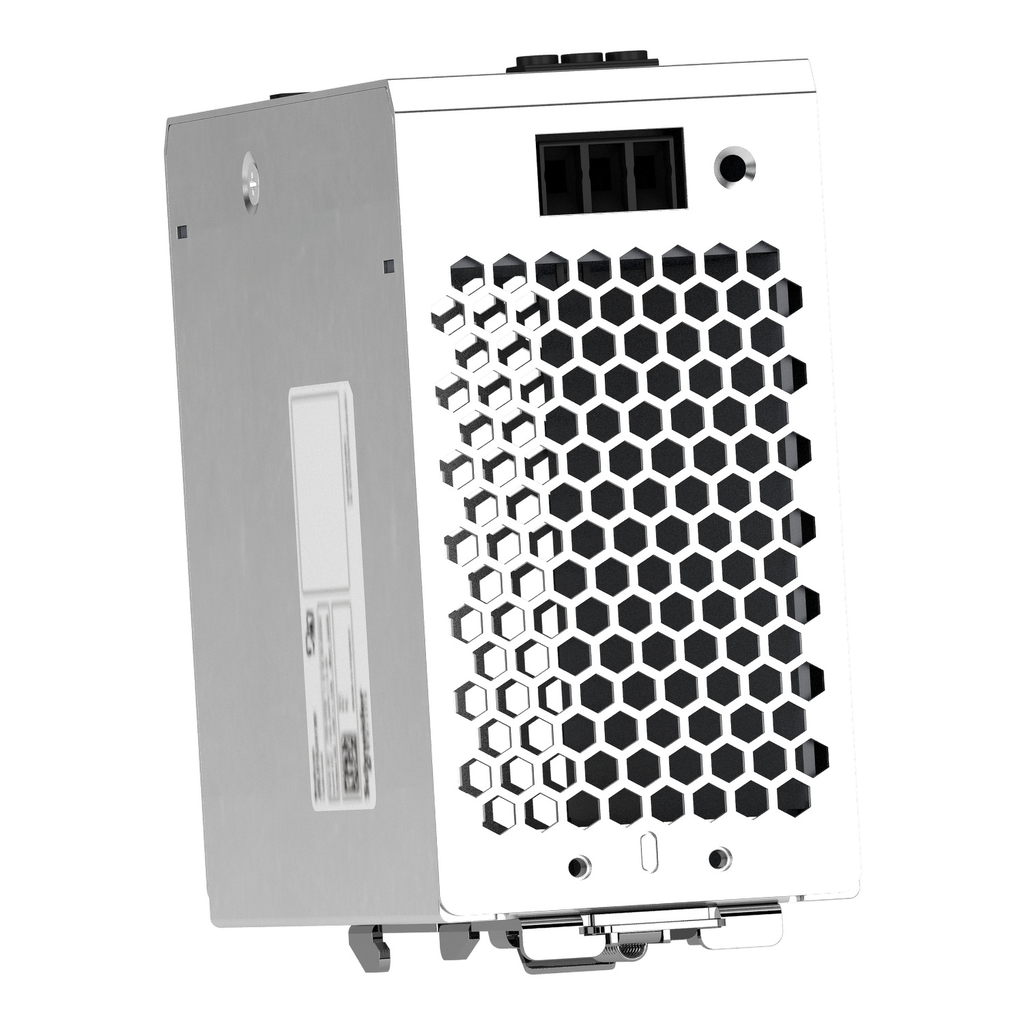

Regulated Power Supply, 100 to 240V AC, 24V, 10A, single phase, Optimized

REGULATED POWER SUPPLY, 100-24

SQDABLS1A24100 ABLS1A24100 3606481500250
342.24 / EA
http://schema.org/OutOfStock
Mayer-DDS-Regulated Power Supply, 100 to 240V AC, 24V, 10A, single phase, Optimized-2
  • Country of Origin: India
  • Depth: 4.61 in
  • Enclosure Material: Aluminum
  • Height: 4.87 in
  • Width: 2.36 in
This ABLS regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC and 140 V to 340 V DC, a rated output current of 10A at 24V DC and a rated power output of 240W. It is ideal for supplying DC vol
QTY
  • Product Description
  • Features
  • Specifications
This ABLS regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC and 140 V to 340 V DC, a rated output current of 10A at 24V DC and a rated power output of 240W. It is ideal for supplying DC vol
  • Connections Terminals
    • screw connection 0.5...4 mm², AWG 20...AWG 12) without wire end ferrule output
    • screw connection
  • Current Consumption
    • < 2.8 A 115 V AC
    • < 1.4 A 230 V AC
    • < 2.4 A 140 V DC
  • Mounting Support
    • top hat type TH35-15 rail IEC 60715
    • top hat type TH35-7.5 rail IEC 60715
    • double-profile DIN rail
    • double-prof
  • Power Factor
    • 0.95 at 115 V AC
    • 0.95 at 230 V AC
  • Inrush Current
    • 30.0 A 115 V
    • 60.0 A 230 V
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Earthing System
    • TN
    • TT
    • IT
  • Carbon Footprint Of The Installation Phase A5
    • 0.0117922356
    • 0 kg CO2 eq.
  • Holding Time
    • > 20 ms 115 V AC
    • > 20 ms 230 V AC
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.5 kg CO2 eq.
    • 0.5481940885
  • Standards
    • IEC 62368-1
    • EN/IEC 61204-3
    • IEC 61000-6-1
    • IEC 61000-6-2
    • IEC 61000-6-3
    • IEC 61000-6-4
    • IEC 61000-3-2
    • EN 61000-3-3
    • UL 62368-1
    • CSA C22.2 No 62368-1
    • UL 508
    • CSA C22.2 No. 107.1
    • EN/IEC 62368-1
  • Maximum Leakage Current
    • 1 mA 240 V AC
  • Status Led
    • 1 LED (Green) output voltage
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 11 kg CO2 eq.
    • 11.4615180547
  • Output Protection Type
    • against overload and short-circuits, protection technology: automatic reset
    • against over temperature, protection technology: manual reset
    • against over temperature, protection tec
  • Supply
    • SELV IEC 60950-1
    • SELV IEC 60204-1
    • SELV IEC 60364-4-41
  • Efficiency
    • 85 % 115 V AC
    • 88 % 230 V AC
  • Vibration Resistance
    • 3 mm (f= 2-9 Hz) conforming to IEC 60068-2-6
    • 10 m/s² (f= 9-200 Hz) conforming to IEC 60068-2-6
    • 10 m/s² (f= 9-200 H
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 1 545 kg CO2 eq.
    • 1545.12
  • Electromagnetic Compatibility
    • immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-2
    • immunity to electrostatic discharge - test level
  • Line And Load Regulation
    • < 0.5 % network 0 to 100 % load at 25 °C
    • < 1 % network full voltage range in line at 25 °C
    • < 1 % network full voltage rang
  • Input Voltage
    • 100...240 V AC single phase
    • 100...240 V AC phase to phase
    • 140...340 V DC
  • Dielectric Strength
    • 3000 V AC with input to output
  • Meantime Between Failure Mtbf
    • 700000 h at 25 °C, full load conforming to SR 332
  • Electromagnetic Emission
    • conducted emissions IEC 61000-6-3
    • radiated emissions IEC 61000-6-4
  • Carbon Footprint Of The Distribution Phase A4
    • 0.1256669889
    • 0.1 kg CO2 eq.
  • Output Coupling
    • parallel
    • serial
  • Efficiency At Full Load
    • 85...264 V AC without temperature derating
    • 120...375 V DC without temperature derating
    • 120...375 V DC without temperature de
  • Shock Resistance
    • 150 m/s² 11 ms
  • Input Protection Type
    • integrated fuse (not interchangeable) 6.3 A
    • external protection (recommended) 20 A Curve B
    • external protection (reco
  • Ambient Air Temperature For Operation
    • -20-40 °C without derating mounting position A 115 V AC < 6561.68 ft (2000 m)
    • -20-40 °C without de
  • Product Certifications
    • CE
    • cUL Listed
    • cUL Recognized
    • RCM
    • CB Scheme
    • EAC
    • KC
  • Output Voltage
    • 24 V DC
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Etim 10 : EC002540
    • Html Descr : Regulated Power Supply, 100-240V AC, 24V 10 A, single phase, Optimized
    • Manufacturer : Schneider Electric
    • Baan Price : 1007.79
    • Baan Currency : USD
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Manufacturing Carbon Footprint : 11.4615180547
    • Distribution Carbon Footprint : 0.1256669889
    • Installation Carbon Footprint : 0.0117922356
    • Use Carbon Footprint : 1545.12
    • End Of Life Carbon Footprint : 0.5481940885
    • Legacy Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2007005EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant with Exemptions
    • Rohs Eur Conformity Date : 2010
    • Rohs Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : No
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Wd Status : 1 - GSC certified
    • Electrical Shock Protection Class : class I
    • Enclosure Material : Aluminum
    • Kw Rating : 240 W
    • Load Capacitance : 8000 µF
    • Network Frequency Limits : 50-60 Hz
    • Overvoltage Category : II
    • Package Weight Lbs : 990.000 g
    • Power Dissipation In W : 36 W
    • Power Supply Type : regulated switch mode
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : power supply
    • Range Of Product : Modicon Power Supply
    • Residual Ripple : < 120 mV
    • Response Time : < 1 s
    • Returnability : Yes
    • Service Life : 10 year(s)
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 1 557 kg CO2 eq.
    • Variant Option : optimized
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 1557.2671713678
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : power supply
    • Range Of Product : Modicon Power Supply
  • ETIM
    • ETIM 8 : EC002540
    • ETIM 9 : EC002540
  • Output Attributes
    • Output Voltage Limits : 22...28 V
    • Power Supply Output Current : 10 A
  • Environment Attributes
    • Take Back : No
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 1557.2671713678
    • Circularity Profile : ENVEOLI2007005EN
    • Environmental Disclosure : ENVPEP2007005EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Ip Degree Of Protection : IP20
    • Operating Altitude : < 5000 m
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Specifications
    • Country of Origin : India
    • Height : 4.87 in
    • Width : 2.36 in
    • Depth : 4.61 in
