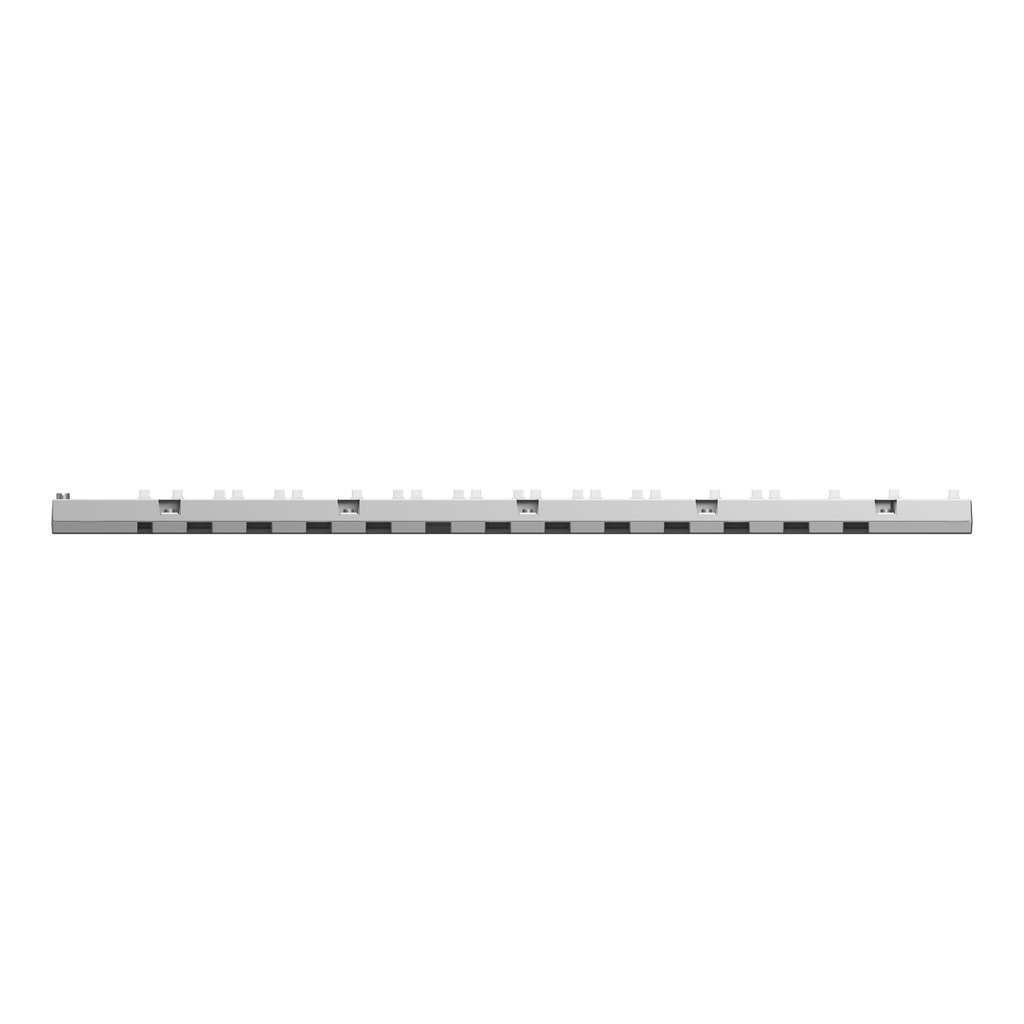

rack, Modicon X80, 12 slots, Ethernet backplane

12 SLOTS ETHERNET BACKPLANE

SQDBMEXBP1200 BMEXBP1200 3595864173924
813.60 / EA
http://schema.org/OutOfStock
Mayer-DDS-rack, Modicon X80, 12 slots, Ethernet backplane-1
  • Country of Origin: USA
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of programmable automation controllers. This 12-slot dual Ethernet and X-bus backplane provides 12 slots with 8 Ethernet and X-bus connectors for mixed modules and 4 X-bus connectors for X-bus modules. This product is robust, high quality and based on the latest innovative technology. It is an Ethernet backplane rack with a current of 164mA at 24V DC and 86mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 1500000 hours of MTBF. It is an IP20 rated product. It weighs 1.377kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply, BMX processor and BME processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Persona Type Ids : EU, OM8, SI
    • Persona Type Names : End User, OEM - Control Panelbuilder, System Integrator
    • Current Consumption : 164 mA 24 V DC, 86 mA 3.3 V DC
    • Fixing Mode : by 4 M6 screws plate, by 4 screws 4.32-6.35 mm panel
    • Number Of Slots : 8 bus X + Ethernet, 4 bus X
    • Power Consumption In W : 283 mW 3.3 V DC, 3.9 W 24 V DC
    • Carbon Footprint Of The Distribution Phase A4 : 0.182385, 0.2 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.5 kg CO2 eq., 0.516193125
    • Carbon Footprint Of The Installation Phase A5 : 0.0134728125, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 13 kg CO2 eq., 13.4715
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 202 kg CO2 eq., 201.8267188406
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-03-25
    • Return Indicator : Y
    • Stocking Flag : N
    • Stock Policy : 2
    • Device Type : PLC System - PLC Component
    • Serviceability : No
    • Traceability : Yes
    • Field Service Division : IDIBS
    • Average Life Duration : 20 year(s)
    • Manufacturing Carbon Footprint : 13.4715
    • Legacy Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2203018EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2007
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : INDUSTRIAL
    • Market Segmentation : Industrial
    • Product Kit Identifier : N
    • Electrical Connection : 1 connector (XBE) expansion module
    • Mtbf Reliability : 1166108 H
    • Product Availability : Stock - Normally stocked in distribution facility
    • Range Of Product : Modicon X80
    • Returnability : Yes
    • Software Version : EIME v5.9.3
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 216 kg CO2 eq.
    • Accessory Separate Part Type : rack
    • Warranty In Months : 18
    • Pep Code : ENVPEP2203018EN
    • Database Version : 2020-12
    • Pep Verification Date : 2022-04-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : nan
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : X80 Racks are used to install modules in a PLC station (power supply, processor, discrete, analog, and application-specific I/O) during 15 years with a 100% use rate.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : unit
    • Product Weight In G2 : 1386
    • Reference Lifetime In Y2 : 15
    • Energy Model Manufacturing A1 A3 2 : Energy model used: France
    • Energy Model Installation A5 2 : Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
    • Energy Model Use B6 2 : Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
    • Energy Model End Of Life C1 C4 2 : Electricity mix; AC; < 1kV; EU-27 / Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US
    • Offer Owner Code : 190786
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 2 : 11.9406
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 2 : 2.5788
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 218.9775
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2 : 8.8641
    • Water Pollution M3 Manufacturing A1 A3 2 : 1334.8125
    • Global Warming Kg Equivalent Co2 Manufacturing A1 A3 2 : 13.4715
  • Environment Attributes Main
    • Directives : 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    • Product Compatibility : I/O module, specific application module, BMXCPS power supply, BMX processor, BME processor
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 216.0102697781
    • Ambient Air Temperature For Operation : 0-60 °C
    • Circularity Profile : ENVEOLI2203018EN
    • Environmental Disclosure : ENVPEP2203018EN
    • Eu Rohs Directive : Compliant By Exemption
    • Ip Degree Of Protection : IP20
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 5-95 % without condensation
    • Pep Code : ENVPEP2203018EN
    • Pep Verification Date : 2022-04-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : nan
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Range Of Product : Modicon X80
  • ETIM
    • ETIM 8 : EC000810
    • ETIM 9 : EC000810
  • Specifications
    • Country of Origin : United States
