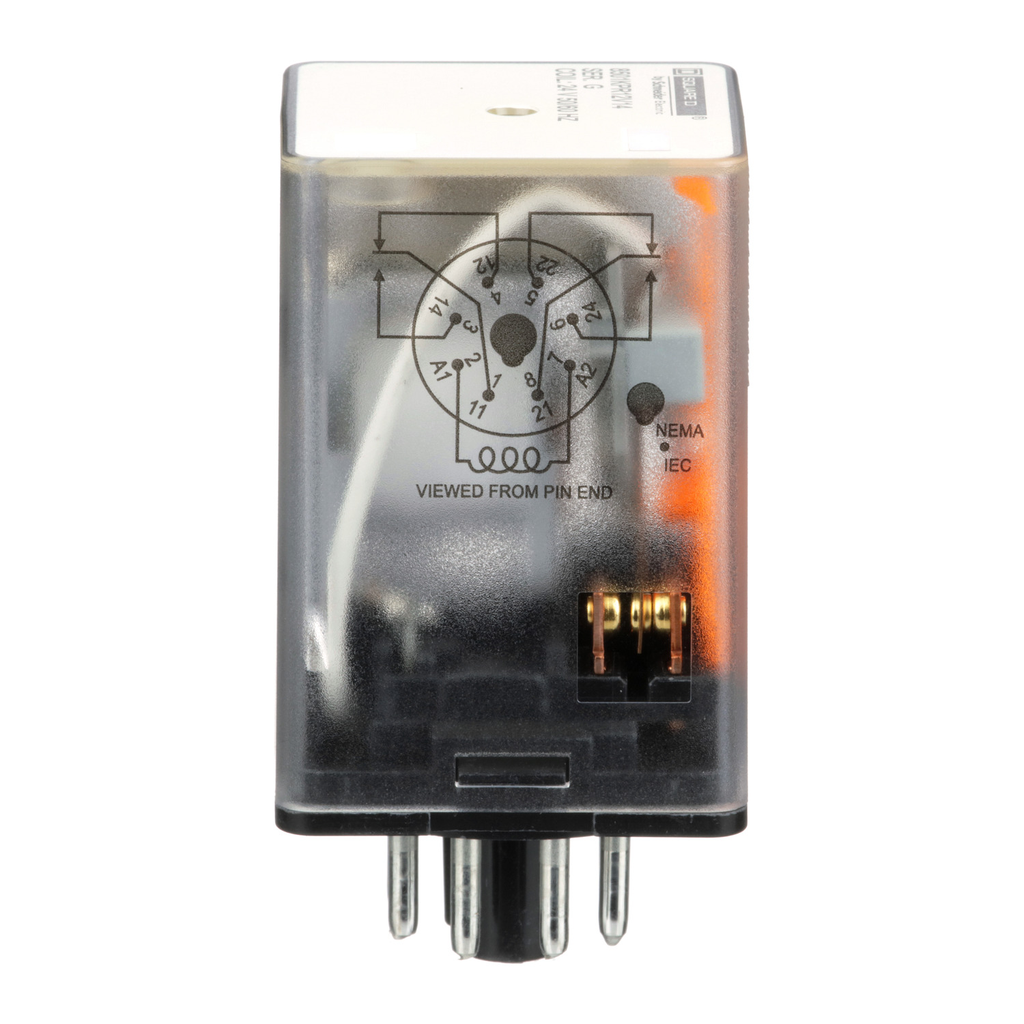

Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, 8 pin, DPDT, 2 NO, 2 NC, 12 VAC coil

RELAY 2CO CYL PIN 10A@240V 24V

SQD8501KPR12V14 8501KPR12V14 785901981107
74.57 / EA
http://schema.org/OutOfStock
Mayer-DDS-Plug in relay, Type KP, tubular, 1 HP at 277 VAC, 10A resistive at 120 VAC, 8 pin, DPDT, 2 NO, 2 NC, 12 VAC coil-2
8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR51 or 8501NR52 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VAC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR51 or 8501NR52 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VAC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Carbon Footprint : 23.9901717248
    • Circularity Profile : ENVEOLI1310013EN
    • Environmental Disclosure : ENVPEP1310013EN
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1310013EN
    • Pep Verification Date : 2022-10-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • Important Information Attributes
    • Operating Time : 20 ms - pick-up, 20 ms - drop-out
    • Carbon Footprint Of The Distribution Phase A4 : 0.011862795, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.1426203937
    • Carbon Footprint Of The Installation Phase A5 : 0.000731471, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.6 kg CO2 eq., 0.6038382604
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 23 kg CO2 eq., 23.2311188047
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-01-27
    • HTML Description : 8501K General Purpose Plug-in Relay8 pin plug-inPoles Description: 2 PolesSwitch Function: DPDTControl Circuit Voltage: 24V ACLocal Signaling: Indicator light when relay energizedRated Power in HP: 1 HP at 277V, 0.33 HP at 120V
    • Manufacturer : Schneider Electric
    • Legacy WEEE Scope : Out
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1310013EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Local Signalling : no indicator
    • Package Weight Lbs : 95.254 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : relay
    • Range Of Product : 8501K
    • Returnability : Yes
    • Shape Of Pin : tubular
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 24 kg CO2 eq.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1310013EN
    • Pep Verification Date : 2022-10-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 10 years with a 99% use rate, in compliance with French standards.
    • Functional Unit Unit : unité (unit)
    • Product Kit Identifier : N
  • General Attributes
    • Product Or Component Type : relay
    • Range Of Product : 8501K
  • Complementary Attributes
    • Maximum Switching Voltage : 300 V AC, 30 V DC
    • Rated Breaking Capacity : 3 A 120 V AC inductive control circuit UL 508, 1.5 A 240 V AC inductive control circuit UL 508, 10 A 277 V AC resistive control circuit UL 508, 10 A 30 V DC resistive control circuit UL 508
    • Rated Power In HP : 1 hp 277 V AC, 0.33 hp 120 V AC
    • UC Control Circuit Voltage : 24 V AC
