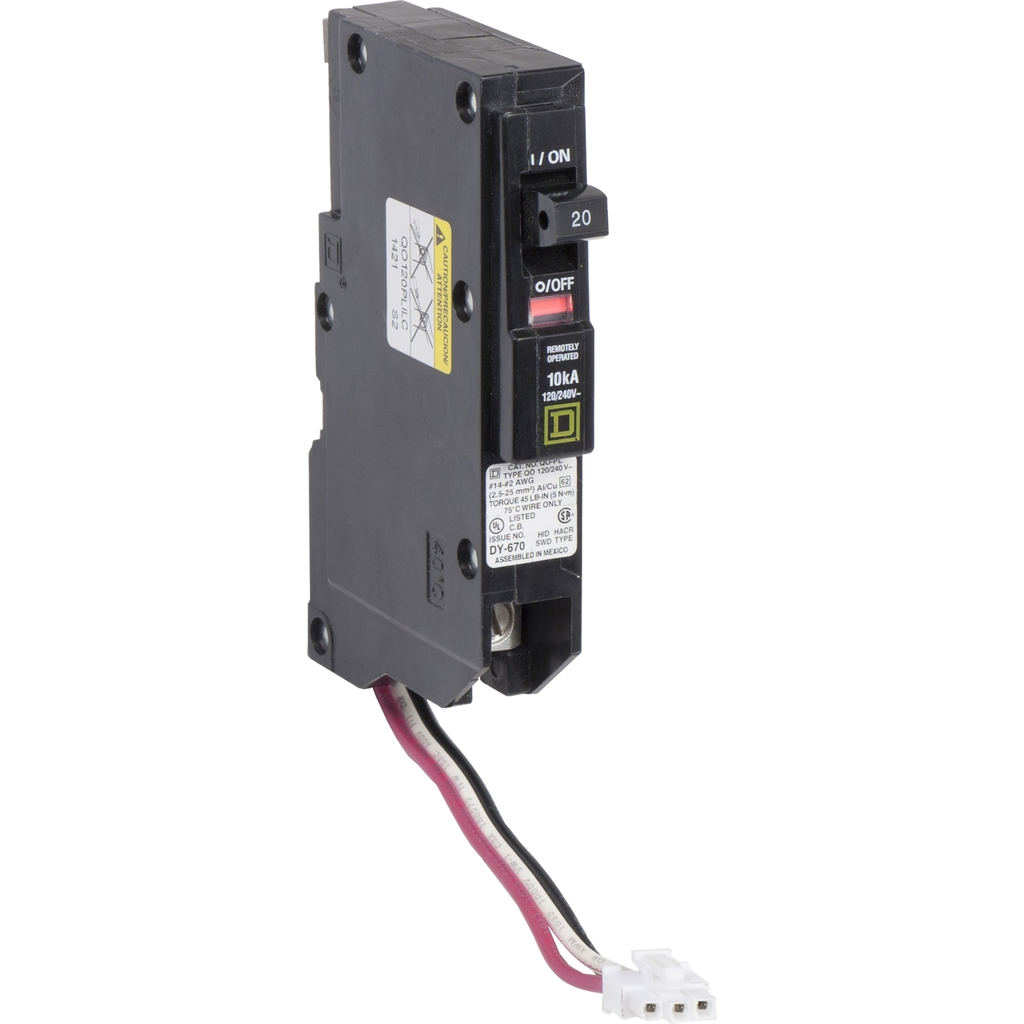

Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, plug in, Powerlink

CIRCUIT BREAKER 120/240V 20A 1

SQDQO120PL QO120PL 785901095705
147.05 / EA
http://schema.org/OutOfStock
Mayer-DDS-Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, plug in, Powerlink-2
  • Depth: 74 mm
  • Height: 116 mm
  • Net Weight: 0.213 kg
  • Warranty Length: 18 mth
  • Weight: 0.213 kg
  • Width: 19 mm
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product has a Powerlink feature. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
QTY
  • Product Description
  • Features
  • Specifications
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product has a Powerlink feature. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
  • Prop 65
    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed || CSA
    • Ambient Air Temperature For Operation : 40 °C
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Halogen Content Performance : Halogen free product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Take-Back : No
    • Eu Rohs Directive : Compliant
  • Complementary
    • Height : 116 mm
    • Tightening Torque : 4-4 N.m
    • Provided Equipment : 18 in lead
    • Number Of Spaces Required : 1
    • Net Weight : 0.213 kg
    • Breaking Capacity : 10 kA 120/240 V AC || 10 kA 240 V AC || 10 kA 120 V AC
    • Awg Gauge : AWG 12...AWG 2 aluminium || AWG 14...AWG 2 copper
    • Width : 19 mm
    • Depth : 74 mm
  • Specifications
    • Country of Origin : Mexico
    • Width : 19 mm
    • Height : 116 mm
    • Weight : 0.213 kg
    • Circuit Breaker Type : standard
    • Range Of Product : QO
    • Product Or Component Type : miniature circuit-breaker
    • Circuit Breaker Application : HACR rated
    • Mounting Mode : plug-in
    • Poles Description : 1P
    • Electrical Connection : box lugs
    • Line Rated Current : 20 A
    • [Ue] Rated Operational Voltage : 120/240 V AC || 240 V AC || 120 V AC
