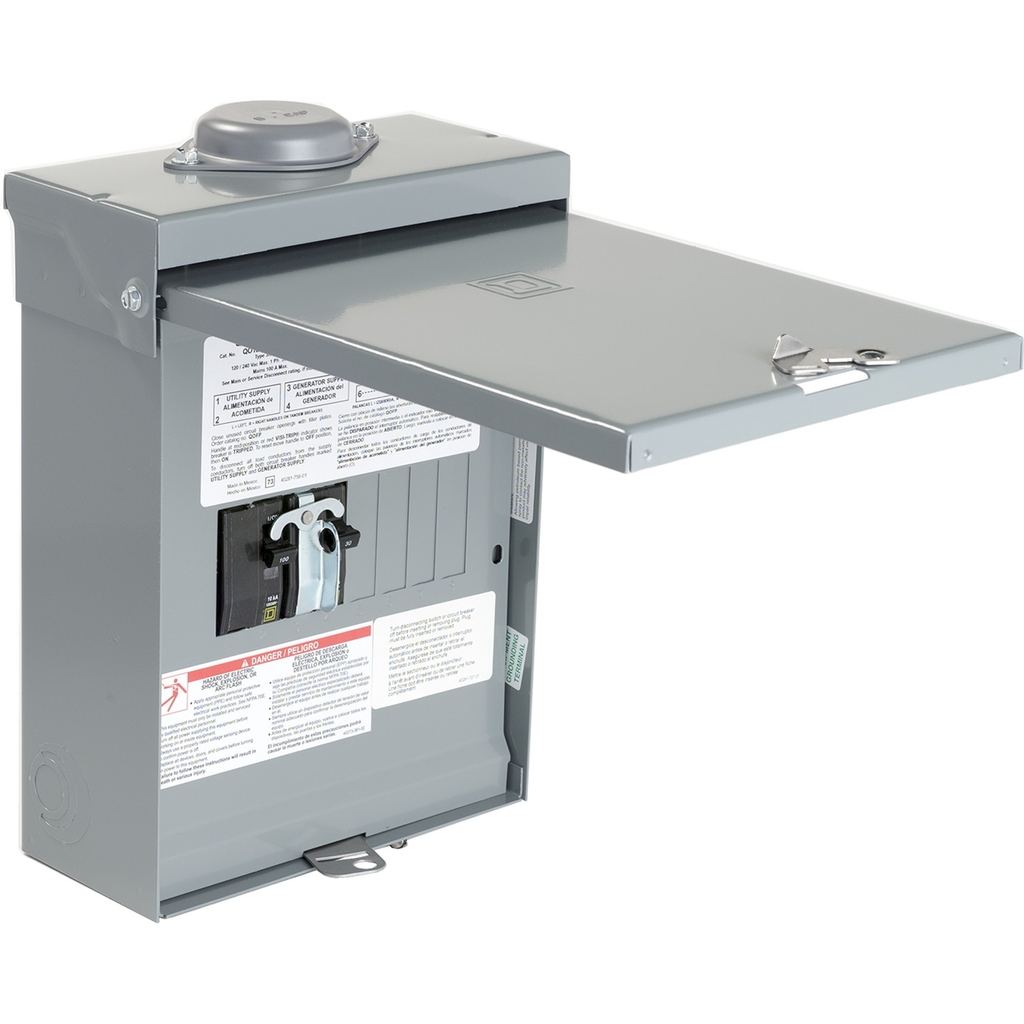

Generator panel, QO, 1 phase, 4 spaces, 8 circuits, 50A main breaker with interlock, NEMA3R, gnd bar

QO MB GEN PANEL TRANSFER 100/5

SQDQO1DM10050TRBR QO1DM10050TRBR 785901468806
384.69 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Generator panel, QO, 1 phase, 4 spaces, 8 circuits, 50A main breaker with interlock, NEMA3R, gnd bar-1
  • Cover Type: Surface Cover
  • Depth: 103 mm
  • Enclosure Material: Steel
  • Surface Finish: Baked Enamel Gray
  • Warranty Length: 18 mth
QO Generator Panels help with your backup power applications. These sub-panels connect directly to the main load center. They provide four single pole spaces that will accommodate up to eight circuits. The Generator Panels use two factory installed, two pole QO circuit breakers. One breaker is fed by the utility, while the second breaker is back-fed for the back-up power source. A factory installed mechanical interlock prevents both main breakers being in the ON position at the same time. Generator Panels are available in 30 A and 60 A versions. QO Generator Panels enable the use of a full complement of accessories. This 1 phase generator panel has 4 spaces and 8 circuits. This system provides 50A main breaker with interlock in a NEMA 3R enclosure. It also includes a ground bar, and is UL rated.
QTY
  • Product Description
  • Features
  • Specifications
QO Generator Panels help with your backup power applications. These sub-panels connect directly to the main load center. They provide four single pole spaces that will accommodate up to eight circuits. The Generator Panels use two factory installed, two pole QO circuit breakers. One breaker is fed by the utility, while the second breaker is back-fed for the back-up power source. A factory installed mechanical interlock prevents both main breakers being in the ON position at the same time. Generator Panels are available in 30 A and 60 A versions. QO Generator Panels enable the use of a full complement of accessories. This 1 phase generator panel has 4 spaces and 8 circuits. This system provides 50A main breaker with interlock in a NEMA 3R enclosure. It also includes a ground bar, and is UL rated.
  • Features
    • QO Load center provides superior performance and durability
    • Straight in wiring saves wire, labor, and time
    • Compatible with any Square D™ QO Circuit Breaker
    • The fully distributed neutral bar allows for QO™ plug-on neutral circuit breakers in any space
    • Complies with UL 67 listed, CSA, and IEC standards
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL Listed
  • Complementary Attributes
    • Line Rated Current : 100 A
  • Important Information Attributes
    • Persona Type Ids : EU, LC
    • Persona Type Names : End User, Contractor
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Safety
    • H And D Subrange : RESI
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • AWG Gauge : AWG 8...AWG 2 copper
    • Box Number : 17R
    • Cover Type : surface cover
    • Device Composition : grounding bar (factory installed)
    • Electrical Connection : lugs
    • Enclosure Material : welded galvannealed steel
    • Energy Efficiency Optimized : False
    • Load Center Type : main breaker
    • Material : tin plated aluminium: busbar
    • Package Weight Lbs : 5.545 kg
    • Phase : 1 phase 3 wires
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : panel
    • Range Of Product : QO
    • Returnability : Yes
    • Short Circuit Current : 10 kA
    • Surface Finish : baked enamel Gray
    • Sustainable Packaging : No
    • Medium Desc : Generator panel, QO, 1 phase, 4 spaces, 8 circuits, 50A main breaker with interlock, NEMA3R, gnd bar
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2212001EN
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • China ROHS Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Ambient Air Temperature For Operation : -5 °C, 40 °C
    • EU ROHS Directive : Compliant By Exemption , Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2212001EN
    • Nema Degree Of Protection : NEMA 3R weatherproof enclosure
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2212001EN
  • General Attributes
    • Phase : 1 phase 3 wires
    • Product Or Component Type : panel
    • Range Of Product : QO
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 103 mm
