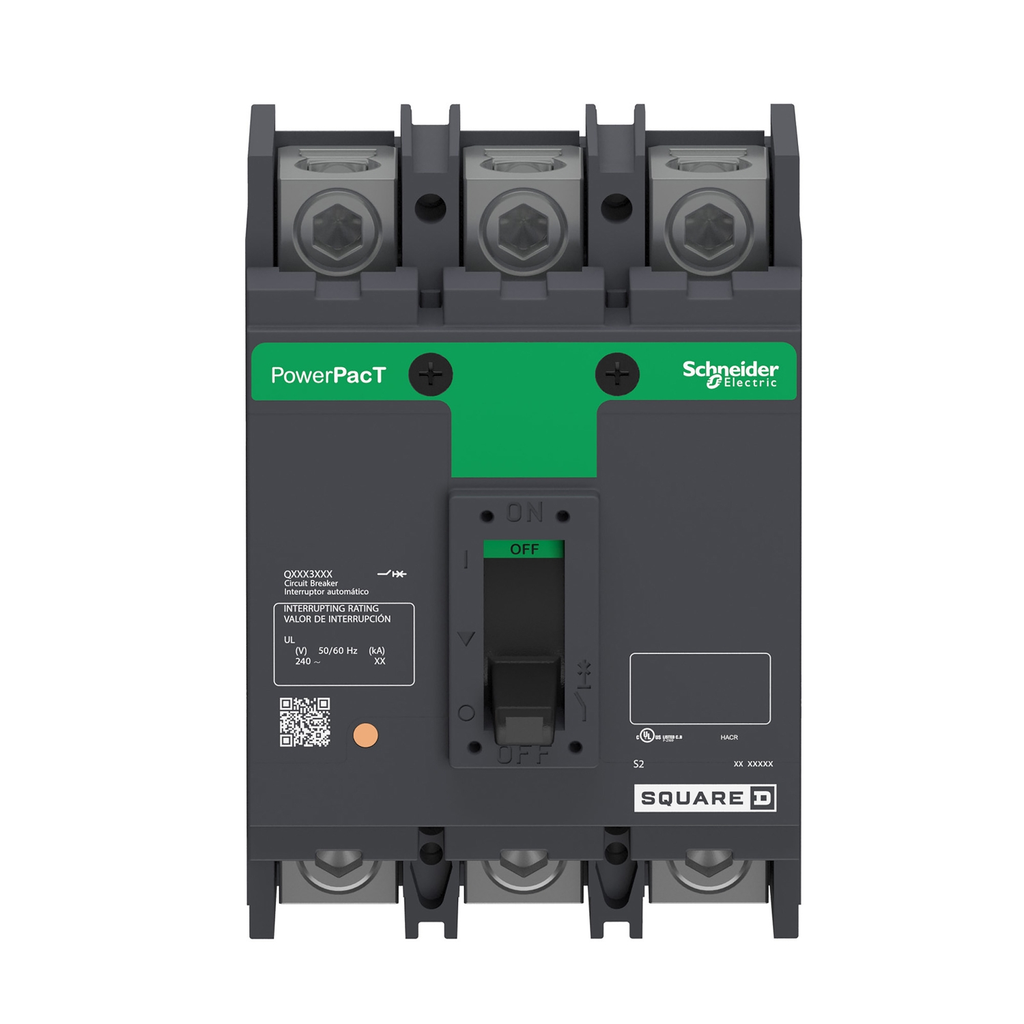

PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole

• Uimp Rated Impulse Withstand Voltage
• 8 kV UL
• Mounting Mode
• unit mount lug)
• Prop 65
• WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go t
• Mechanical Durability
• 1000 cycles loaded
• 5000 cycles no load
• Carbon Footprint Of The Installation Phase A5
• 0
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 3 kg CO2 eq.
• 3.006844443
• Standards
• UL
• CSA
• NEMA
• NOM-003-SCFI-2000
• Ue Rated Operational Voltage
• 240 V AC 50/60 Hz UL
• Electrical Connection
• terminal nut, line
• lugs, load
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 16 kg CO2 eq.
• 16.34920666
• Accessories
• QBMIK
• QBPA
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 259 kg CO2 eq.
• 258.6094594
• Line Rated Current
• 100-100 A
• 100 A
• Persona Type Ids
• LC
• OM
• OM8
• PB
• Carbon Footprint Of The Distribution Phase A4
• 0.447523962
• 0.4 kg CO2 eq.
• Tightening Torque
• 28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Local Signalling
• 1 trip indicator green)
• Product Certifications
• UL
• CSA
• NOM

• Physical Attributes
• Wire Stripping Length : 22 mm
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-15
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : Yes
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 16.34920666
• Distribution Carbon Footprint : 0.447523962
• Installation Carbon Footprint : 0
• Use Carbon Footprint : 258.6094594
• End Of Life Carbon Footprint : 3.006844443
• Legacy Weee Scope : In
• Weee Product Category : 4
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant with Exemptions
• Rohs Eur Conformity Date : 1909
• Rohs Eur Full Compliance Status : Compliant with Exemptions
• China Rohs In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : 2 - SELECTED (Migration)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• H And D Domain : Safety
• H And D Subrange : RESI
• H And D Enrichment Assignment : no
• H And D Enrichment Function : ENCLOSURES
• H And D Enrichment Class 3 : Circuit Breakers
• H And D Enrichment Class 4 : MCCB
• Circuit Breaker Application : HACR rated
• Continuous Current Rating : 80 %
• Control Type : operating handle
• Device Application : distribution
• Halogen Free Status : Halogen free product
• Magnetic Hold Current : 1200 A
• Magnetic Tripping Current : 2400-2400 A
• Mounting Support : lug
• Network Frequency : 50/60 Hz
• Package Weight Lbs : 2.07 kg
• Poles Description : 3P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : circuit breaker
• Range : PowerPact
• Returnability : Yes
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 278 kg CO2 eq.
• Trip Unit Technology : thermal-magnetic
• Utilisation Category : category A
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 278.4130345
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : circuit breaker
• Environment Attributes
• Take Back : No
• Halogene Performance : Halogen free product
• China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 278.4130345
• Ambient Air Temperature For Operation : 40-70 °C
• Environmental Disclosure : ENVPEP2311048EN
• Eu Rohs Directive : Compliant with Exemptions
• Halogen Content Performance : Halogen free product
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Height : 6.47 in
• Width : 4.5 in
• Depth : 3.93 in
