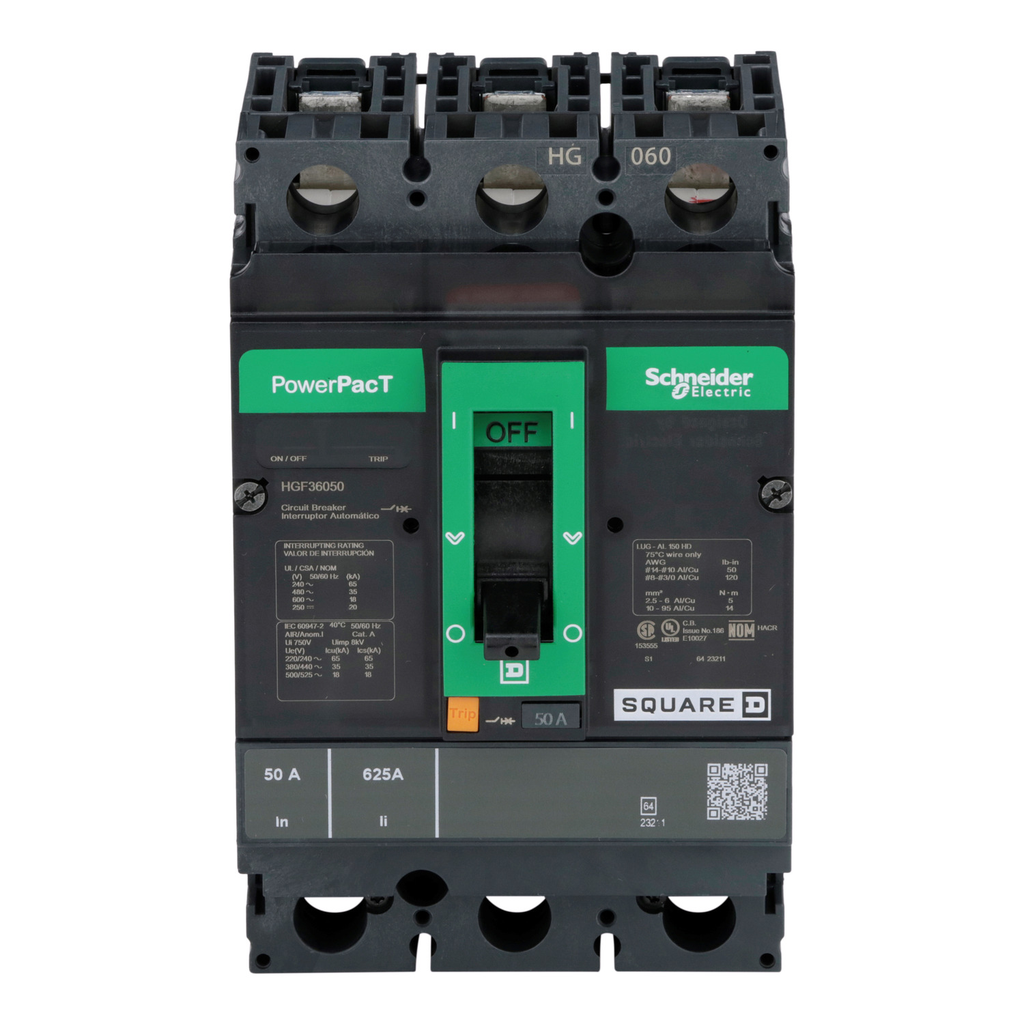

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has a busbar connection. This PowerPacT H, 50A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

• Prop 65
• WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Color : Black
• Conformance Attributes
• Product Certifications : UL, CSA, NOM
• Complementary Attributes
• ICS Rated Service Breaking Capacity : 65 kA 220/240 V AC 50/60 Hz IEC 60947-2, 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 18 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
• UE Rated Operational Voltage : 690 V AC 50/60 Hz IEC 60947-3
• UI Rated Insulation Voltage : 750 V IEC 60947-2
• UIMP Rated Impulse Withstand Voltage : 8 kV IEC 60947-2
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Electrical Connection : busbar connection, line, busbar connection, load
• Number Of Slots : 2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in), 1 overcurrent trip switch SDE plug-in), 1 voltage release MN or MX plug-in)
• Tightening Torque : 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10), 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
• ICS Rated Service Breaking Capacity : 65 kA 220/240 V AC 50/60 Hz IEC 60947-2, 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2, 18 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
• Carbon Footprint Of The Distribution Phase A4 : 0.3812916237468922, 0.4 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 3 kg CO2 eq., 3.391969932864633
• Carbon Footprint Of The Installation Phase A5 : 0.01827056403892661, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 9 kg CO2 eq., 9.231241412339646
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 199 kg CO2 eq., 198.79722630714696
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-13
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : Yes
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2206027_V2
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• AWG Gauge : AWG 14...AWG 3/0 aluminium/copper terminal
• Continuous Current Rating : 80 %
• Energy Efficiency Optimized : False
• Local Signalling : switched off (OFF) 1 trip indicator green)
• Magnetic Hold Current : 400 A
• Magnetic Tripping Current : 850-850 A
• Mounting Mode : unit mount busbar)
• Package Weight Lbs : 1.891 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : circuit breaker
• Protected Poles Description : 3t
• Quality Labels : CE
• Range : PowerPact
• Returnability : Yes
• Suitability For Isolation : yes IEC 60947-2
• Sustainable Packaging : No
• Terminal Identifier : AL150HD
• Total Lifecycle Carbon Footprint : 212 kg CO2 eq.
• Trip Unit Technology : thermal-magnetic
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2206027EN
• Pep Verification Date : 2025-05-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 12 08
• Type Of Verification For The Pep : Independent external review
• Functional Unit Description : Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
• Operating Altitude : < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating, 5000 m with derating
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 211.8199998401371
• Circularity Profile : ENVEOLI2206027_V2
• Environmental Disclosure : ENVPEP2206027EN
• IP Degree Of Protection : front cover IP40 IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2206027EN
• Pep Verification Date : 2025-05-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3-2023 12 08
• Type Of Verification For The Pep : Independent external review
• General Attributes
• Product Or Component Type : circuit breaker
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
