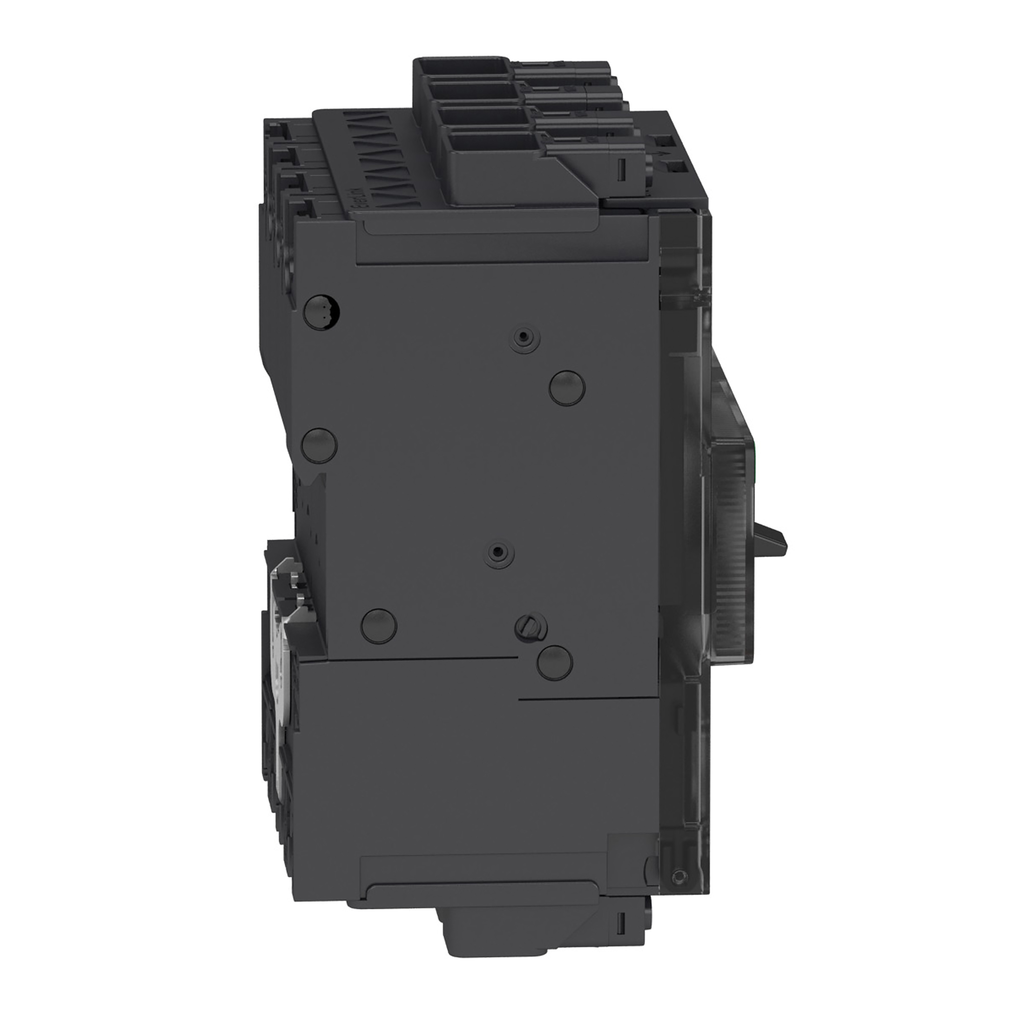

PowerPact B Circuit Breaker, 80A, 4P, 600Y/347V AC, 25kA at 600Y/347 UL EverLink

PowerPact B Circuit Breaker, 80A, 4P, 600Y/347V AC, 25kA at 600Y/347 UL EverLink

SQDBJL46080 BJL46080 785901085447
3037.00 / EA
  • Amperage: 80 A
  • Certifications: CCC, CSA, EAC, IEC, NOM, UL
  • Color: Gray RAL 7016)
  • Depth: 3.15 in, 80 mm
  • Height: 137 mm, 5.39 in
  • Mounting Type: By Screws Plate), Clip-on 35 X 15 Mm Symmetrical DIN Rail)
  • Number of Poles: 4
  • Standard: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
  • Voltage: 690 V
  • Weight: 1.441 kg, 3.18 lbs
  • Width: 108 mm, 4.25 in
PowerPact B-frame circuit breaker, offers proven performance, flexibility, and reliability. This PowerPact Molded Case Circuit Breaker feature new innovations such as the patented EverLink™ connections. PowerPact B-frame circuit breakers provides economical thermal magnetic circuit protection with a breaking capacity of 25kA at 220 / 240 VAC50/60 Hz. PowerPact B-frame circuit breakers come in 1 to 4-pole unit mount construction also 1 to 3-pole I-Line construction. This Powerpact B, 80 A, 4P, circuit breaker has a breaking capacity of 25kA@600Y/347VAC@50/60 Hz per UL 489 standards, This circuit breaker has a Thermal-magnetic trip unit technology with a mechanical service life of 20000 cycles and an electrical service life of 10000 cycles@440V. This clip-on breaker has a presence of auxiliary contacts green signaling function. The I-Line lug can accept an AWG gauge AWG 6 / AWG 2/0, aluminum/copper. This breakers complies to UL, IEC, CCC, EAC, CSA, NOM standards, Powerpact B-Frame breakers have an operating altitude test condition of 2000 m without derating and a 5000 m with derating. Dimensions for this product are 137 mm (H),108 mm (W),80 mm (D) and a weight of 1.441kg. This breaker has a continuous current rating of 80%.
  • Product Description
  • Additional Information
PowerPact B-frame circuit breaker, offers proven performance, flexibility, and reliability. This PowerPact Molded Case Circuit Breaker feature new innovations such as the patented EverLink™ connections. PowerPact B-frame circuit breakers provides economical thermal magnetic circuit protection with a breaking capacity of 25kA at 220 / 240 VAC50/60 Hz. PowerPact B-frame circuit breakers come in 1 to 4-pole unit mount construction also 1 to 3-pole I-Line construction. This Powerpact B, 80 A, 4P, circuit breaker has a breaking capacity of 25kA@600Y/347VAC@50/60 Hz per UL 489 standards, This circuit breaker has a Thermal-magnetic trip unit technology with a mechanical service life of 20000 cycles and an electrical service life of 10000 cycles@440V. This clip-on breaker has a presence of auxiliary contacts green signaling function. The I-Line lug can accept an AWG gauge AWG 6 / AWG 2/0, aluminum/copper. This breakers complies to UL, IEC, CCC, EAC, CSA, NOM standards, Powerpact B-Frame breakers have an operating altitude test condition of 2000 m without derating and a 5000 m with derating. Dimensions for this product are 137 mm (H),108 mm (W),80 mm (D) and a weight of 1.441kg. This breaker has a continuous current rating of 80%.
  • Specifications
    • Main
      • Range : PowerPact
      • Product Name : PowerPact B
      • Device Short Name : BJ 080
      • Product Or Component Type : Circuit breaker
      • Device Application : Distribution
    • Complementary
      • In Rated Current : 80 A
      • Number Of Poles : 4P
      • Control Type : Toggle
      • Rating Code : J
      • Breaking Capacity : 100 kA 208Y/120 V AC 50/60 Hz UL 489 || 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480/277 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600Y/347 V AC 50/60 Hz UL 489 || 50 kA 250 V DC UL 489
      • Ue Rated Operational Voltage : 690 V AC 50/60 Hz UL 489
      • Ics Rated Service Breaking Cap : 100 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 25 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 2.5 kA 690 V AC 50/60 Hz IEC 60947-2 || 65 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 65 kA 440 V AC 50/60 Hz IEC 60947-2
      • Uimp Rated Imp Wstd Voltage : 8 kV IEC 60947-2
      • Ui Rated Insulation Voltage : 800 V IEC 60947-2
      • Trip Unit Technology : Thermal-magnetic
      • Suitability For ISOlation : Yes IEC 60947-2
      • Utilisation Category : Category A
      • Mechanical Durability : 20000 cycles IEC 947-1 Annex K ed 5.2
      • Electrical Durability : 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
      • Connection Pitch : 1.06 in (27 mm)
      • Local Signalling : Presence of auxiliary contacts flag green)
      • Mounting Mode : Clip-on 35 x 15 mm symmetrical DIN rail) || By screws plate)
      • Electrical Connection : Everlink lug line || Everlink lug load
      • Awg Gauge : AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper
      • Tightening Torque : 44.25 lbf.in (5 N.m) 0.00…0.02 in² (2.5…16 mm²) AWG 14...AWG 4) || 79.66 lbf.in (9 N.m) 0.04…0.15 in² (25…95 mm²) AWG 3...AWG 3/0)
      • Number Of Slots : 1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
      • Power Wire Stripping Length : 0.79 in (20 mm)
      • Color : Gray RAL 7016)
      • 9 mm Pitches : 12
      • Height : 5.39 in (137 mm)
      • Width : 4.25 in (108 mm)
      • Depth : 3.15 in (80 mm)
      • Product Weight : 3.18 lb(US) (1.441 kg)
      • Quantity Per Set : Set of 1
      • Continuous Current Rating : 80 %
    • Environment
      • Quality Labels : CE
      • Standards : EN/IEC 60947-2 || EN/IEC 60947-5-1 || NMX J-266 || NEMA AB1 || CSA C22.2 No 5 || UL 489 || GB 14048.2
      • Product Certifications : UL || IEC || CCC || EAC || CSA || NOM
      • IP Degree Of Protection : Front cover IP40 IEC 60529
      • IK Degree Of Protection : IK07 IEC 62262
      • Pollution Degree : 3 IEC 60947-1
      • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
      • Ambient Air Temp For Storage : -58…185 °F (-50…85 °C)
      • Operating Altitude : < 6561.68 ft (2000 m) without derating || 5000 m with derating
    • Ordering And Shipping Details
      • Category : 01132 - BJ/BK UNIT MOUNT BREAKER/SWITCH
      • Discount Schedule : DE2
      • GTIN : 00785901085447
      • Nbr. Of Units In Pkg. : 1
      • Returnability : No
    • Offer Sustainability
      • Green Premium Status : Green Premium product
      • EU RoHs Directive : Compliant
      • Mercury Free : Yes
      • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
      • Pvc Free : Yes
      • Halogen Content Performance : Halogen free product
