PowerLogic HDPM6000 Color Touchscreen HMI Display 4.3 inch

POWERLOGIC HDPM6000 COLOR TOUC

SQDMETSEHDPM6HMI4 METSEHDPM6HMI4 3606481985378
1923.04 / EA
http://schema.org/OutOfStock

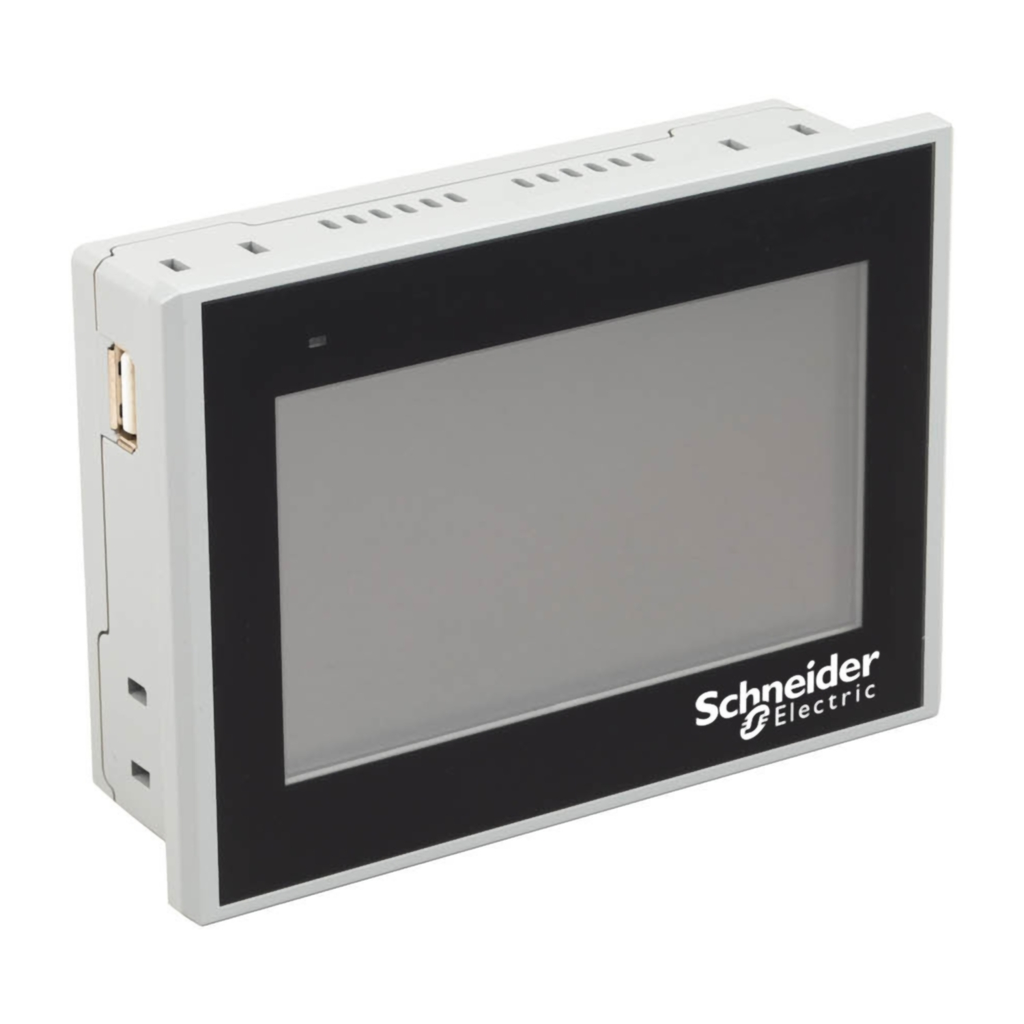

Mayer-DDS-PowerLogic HDPM6000 Color Touchscreen HMI Display 4.3 inch-1
  • Country of Origin: USA
The multi-circuit PowerLogic HDPM6000 series propose a monitor to visualise measured parameter of multiple head units. The interface can display mains data (volt, current, energy), quality (power, harmonic distortions), harmonics or individual branches. Configuration of the display can be password protected. The menu will help you configure your environment (device, panel) and input/outputs modues. Include a SD card port, 1 Ethernet bus, 2 USB (host+device), 1 serial bus. The viewable area consist of a color TFT LCD, 4.3inches, 480 pixels by 272 pixels. The device support and display data from 1 to 4 head unit. The display need to be supplied with a 24VDC isolated power, that can provide at least 420mA. The dimensions are 127.7mm in width, 90mm in height, 36.7mm in depth for a net weight of 250g. The recommanded enclosure cut-out should be 119.3mm x 81.3mm. Ingress Protection IP65 rating, waterproof, on front. The box includes 4 mounting clip screws to be front-mounted to a panel. Recommanded torque is 0.39Nm plus or minus 0.1Nm, screws need to be tightened evenly, not one by one.
QTY
  • Product Description
  • Features
  • Specifications
The multi-circuit PowerLogic HDPM6000 series propose a monitor to visualise measured parameter of multiple head units. The interface can display mains data (volt, current, energy), quality (power, harmonic distortions), harmonics or individual branches. Configuration of the display can be password protected. The menu will help you configure your environment (device, panel) and input/outputs modues. Include a SD card port, 1 Ethernet bus, 2 USB (host+device), 1 serial bus. The viewable area consist of a color TFT LCD, 4.3inches, 480 pixels by 272 pixels. The device support and display data from 1 to 4 head unit. The display need to be supplied with a 24VDC isolated power, that can provide at least 420mA. The dimensions are 127.7mm in width, 90mm in height, 36.7mm in depth for a net weight of 250g. The recommanded enclosure cut-out should be 119.3mm x 81.3mm. Ingress Protection IP65 rating, waterproof, on front. The box includes 4 mounting clip screws to be front-mounted to a panel. Recommanded torque is 0.39Nm plus or minus 0.1Nm, screws need to be tightened evenly, not one by one.
  • Control Type
    • touch screen
    • 1 x button
  • US Rated Supply Voltage
    • 24 V DC
  • Range Compatibility
    • PowerLogic PowerLogic HDPM6000 base unit
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Relative Humidity
    • 10-90 % 40-40 °C
  • Local Signalling
    • operating status (RUN) LED Blue)
  • Physical Attributes
    • Display Color : 65536 colours
    • Display Size : 4.3 inch
    • Embedding Depth : 32.8 mm
    • Projecting Depth : 3.9 mm
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-15
    • Device Type : Relay, Control & Measurement - measuring, monitoring device
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : DPIBS
    • Average Life Duration : 15 year(s)
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 2105
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : Yes
    • China ROHS Label : 7
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Display Color : 65536 colours
    • Energy Efficiency Optimized : False
    • Mounting Support : enclosure
    • Package Weight Lbs : 500.0 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : display
    • Range : PowerLogic
    • Returnability : No
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : display
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=526255109&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • EU ROHS Directive : Compliant with Exemptions
    • IP Degree Of Protection : IP65
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Specifications
    • Country of Origin : United States
