Power plug-in relay - Zelio RPM - 4 C/O - 12 V DC - 15 A

PLUG-IN RELAY 250V 15A RPM +OP

SQDRPM41JD RPM41JD 3389119402187
11.83 / EA
http://schema.org/OutOfStock

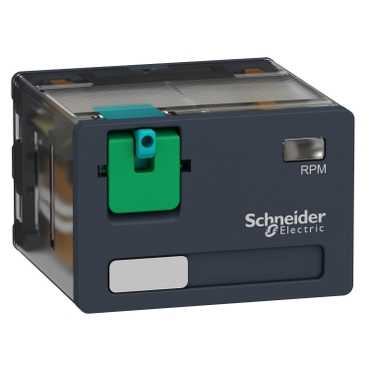

Mayer-Power plug-in relay - Zelio RPM - 4 C/O - 12 V DC - 15 A-1
  • Certifications: CSA, EAC, REACH, RoHS, UL
  • Control Circuit Voltage: 12 V
  • IP Rating: IP40
  • Package Quantity: 10
  • Rated Insulation Voltage: 250 V, 300 V
  • Warranty Length: 18 mth
  • Weight: 0.071 kg, 0.16 lb
QTY
  • Specifications
  • Main
    • Commercial Status : Commercialised
    • Range of product : Zelio Relay
    • Series name : Power
    • Product or component type : Plug-in relay
    • Device short name : RPM
    • Contacts type and composition : 4 C/O
    • Control circuit voltage : 12 V DC
    • [Ithe] conventional enclosed thermal current : 15 A at -40...131 °F (-40...55 °C)
    • Status LED : Without
    • Control type : Lockable test button
    • Utilisation coefficient : 20 %
  • Complementary
    • Shape of pin : Flat
    • [Ui] rated insulation voltage : 300 V conforming to UL
    • [Ui] rated insulation voltage : 300 V conforming to CSA
    • [Ui] rated insulation voltage : 250 V conforming to IEC
    • [Uimp] rated impulse withstand voltage : 4 kV 1.2/50 µs
    • Contacts material : AgNi
    • [Ie] rated operational current : 7.5 A at 28 V DC (NC) conforming to IEC
    • [Ie] rated operational current : 7.5 A at 250 V AC (NC) conforming to IEC
    • [Ie] rated operational current : 15 A at 28 V DC (NO) conforming to IEC
    • [Ie] rated operational current : 15 A at 250 V AC (NO) conforming to IEC
    • [Ie] rated operational current : 15 A at 28 V DC conforming to UL
    • [Ie] rated operational current : 15 A at 277 V AC conforming to UL
    • Maximum switching voltage : 250 V conforming to IEC
    • Load current : 15 A at 28 V DC
    • Load current : 15 A at 250 V AC
    • Maximum switching capacity : 420 W
    • Maximum switching capacity : 3750 VA
    • Minimum switching capacity : 170 mW at 10 mA, 17 V
    • Mechanical durability : 10000000 cycles
    • Electrical durability : 100000 cycles resistive load
    • Average consumption in W : 1.6 W
    • Drop-out voltage threshold : >= 0.1 Uc DC
    • Operating time : 20 ms at nominal voltage
    • Reset time : 20 ms at nominal voltage
    • Rated operational voltage limits : 9.6...13.2 V DC
    • Protection category : RT I
    • Operating position : Any position
    • Safety reliability data : B10d = 100000
    • Product weight : 0.16 lb(US) (0.071 kg)
  • Environment
    • Dielectric strength : 2000 V AC between poles with basic insulation
    • Dielectric strength : 2000 V AC between coil and contact with reinforced insulation
    • Dielectric strength : 1500 V AC between contacts with micro disconnection insulation
    • Standards : EN/IEC 61810-1
    • Standards : UL 508
    • Standards : CSA C22.2 No 14
    • Product certifications : CSA
    • Product certifications : RoHS
    • Product certifications : UL
    • Product certifications : REACH
    • Product certifications : EAC
    • Ambient air temperature for storage : -40...185 °F (-40...85 °C)
    • Ambient air temperature for operation : -40...131 °F (-40...55 °C)
    • Vibration resistance : 5 gn (f = 10...150 Hz), amplitude +/- 1 mm (on 5 cycles not operating)
    • Vibration resistance : 3 gn (f = 10...150 Hz), amplitude +/- 1 mm (on 5 cycles in operation)
    • IP degree of protection : IP40 conforming to EN/IEC 60529
    • Shock resistance : 30 gn not operating
    • Shock resistance : 15 gn in operation
    • Pollution degree : 3
  • Ordering and Shipping Details
    • Category : 21127 - ZELIO ICE CUBE RELAYS
    • Discount Schedule : CP2
    • GTIN : 00785901630050
    • Nbr. of units in pkg. : 10
    • Product availability : Stock - Normally stocked in distribution facility
    • Returnability : Y
    • Country of origin : CN
  • Contractual Warranty
    • Warranty period : 18 months
