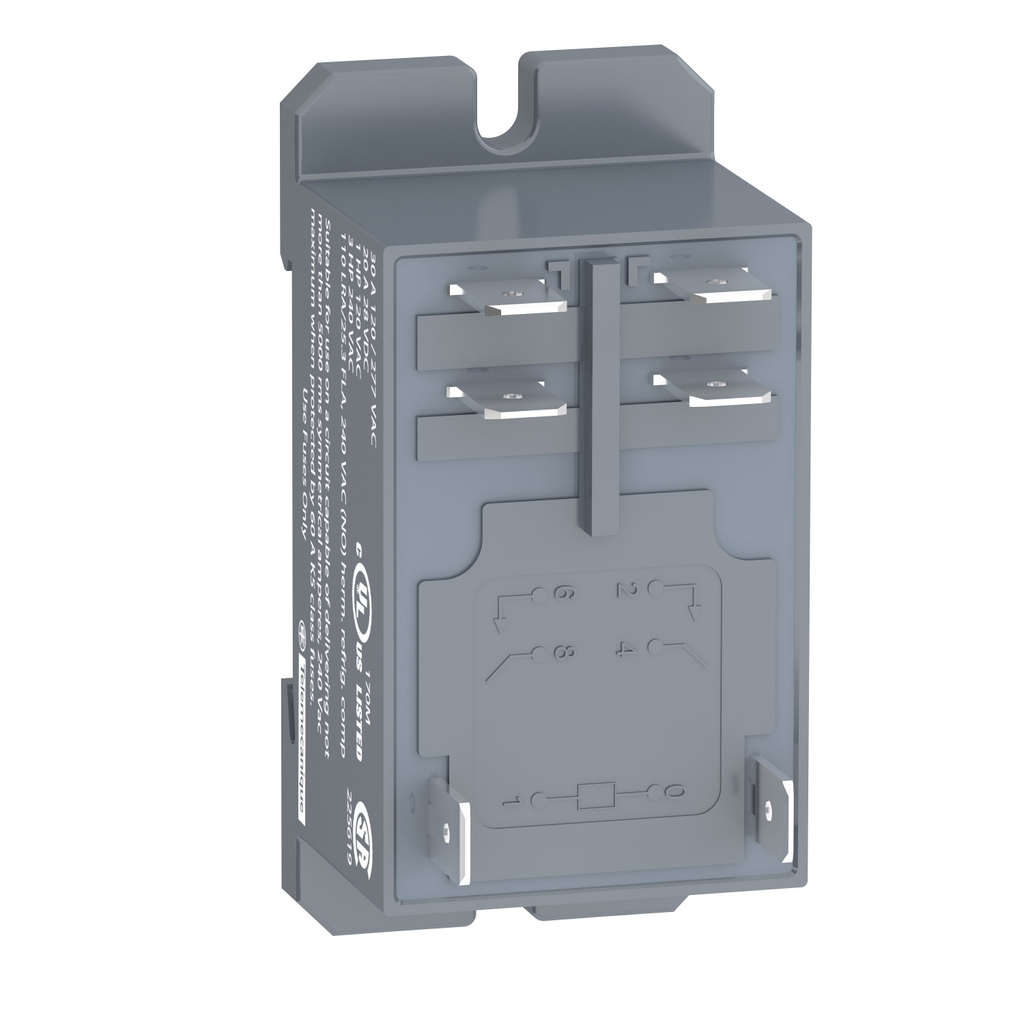

This Harmony RPF panel mounting power relay with fast-on terminals has a coil control voltage of 230V AC and has 2 normally open contacts with a rating of 30A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0 0 0

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0001784_3D-CAD
• Physical Attributes
• Cad Overall Depth : 39.2 mm
• Cad Overall Height : 68.5 mm
• Cad Overall Width : 33.7 mm
• Conformance Attributes
• Product Certifications : CSA, CE, GOST, UL
• Standards : CSA C22.2 No 14, IEC 61810-1, UL 508
• Complementary Attributes
• Ie Rated Operational Current : 30 A 277 V AC) NO UL, 20 A 28 V DC) NO UL, 30 A 250 V AC) NO IEC, 25 A 28 V DC) NO IEC
• Uc Control Circuit Voltage : 230 V AC 50/60 Hz, 230 V
• Ui Rated Insulation Voltage : 250 V IEC, 300 V UL
• Control Circuit Type : AC
• Control Circuit Voltage Limits : 184...253 V
• Line Rated Current : 30 A
• Maximum Switching Capacity : 7500 VA/700 W
• Maximum Switching Voltage : 250 V IEC
• Minimum Switching Capacity : 6000 mW 500 mA / 12 V NO
• Minimum Switching Current : 500 mA
• Uimp Rated Impulse Withstand Voltage : 4 kV 1.2/50 µs
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Dielectric Strength : 2000 V AC between poles with basic, 4000 V AC between coil and contact with reinforced, 1500 V AC between contacts with micro disconnection
• Drop Out Voltage Threshold : >= 0.15 Uc, >= 0.15 Uc
• Load Current : 25 A 28 V DC, 30 A 250 V AC
• Mounting Support : DIN rail, panel
• Operating Rate : <= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
• Shock Resistance : 10 gnin operation, 30 gnnot operating
• Vibration Resistance : 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 10 gn +/- 1 mm 10-150 Hz)5 cycles not operating
• Ie Rated Operational Current : 30 A 277 V AC) NO UL, 20 A 28 V DC) NO UL, 30 A 250 V AC) NO IEC, 25 A 28 V DC) NO IEC
• Ithe Conventional Enclosed Thermal Current : 25 A -40-55 °C relays side by side without a gap, 30 A -40-55 °C 13 mm gap between two relays
• Carbon Footprint Of The Distribution Phase A4 : 0.1088228116949584, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.2049589513618068, 0.2 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0002988727138061762
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.8 kg CO2 eq., 0.7674921091920147
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 29 kg CO2 eq., 29.24981057886085
• Medium Desc : power relay, Harmony electromechanical relays, DIN rail or panel mount relay, 30A, 2NO, 230V AC
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Global Commercial Status : Commercialised
• Html Descr : Zelio RPF Power relay plug-inControl circuit voltage : 230 V ACContacts type and composition : 2NOControl type : Without lockable test buttonResistive rated load : 25 A 28 V DC / 30 A 250 V ACMounting support : Panel, DIN rail.Control circuit voltage limits : 184...253 V
• Return Indicator : Y
• Stocking Flag : N
• Manufacturer : Schneider Electric
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Consumption : 4 VA 60 Hz
• Average Resistance : 15600 Ohm at 20 °C +/- 15 %
• Compatibility Code : RPF
• Contacts Material : silver tin oxide
• Contacts Type And Composition : 2 NO
• Control Type : without lockable test button
• Electrical Durability : 100000 cycles resistive
• Mechanical Durability : 5000000 cycles
• Operating Position : any position
• Operating Time : 25 ms
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : DIN rail/panel mount relay
• Protection Category : RT II
• Range Of Product : Harmony Electromechanical Relays
• Relay Type : power relay
• Returnability : Yes
• Safety Reliability Data : B10d = 100000
• Series Name : RPF series
• Shape Of Pin : flat (faston type)
• Software Version : v6.1
• Status Led : without
• Sustainable Packaging : Yes
• Test Levels : level A group mounting
• Total Lifecycle Carbon Footprint : 30 kg CO2 eq.
• Utilisation Coefficient : 10 %
• Connections Terminals : quick-connect terminal
• Contacts Composition : 2 NO
• Control Circuit Voltage : 230 V
• Control Circuit Type2 : AC
• Pep Code : ENVPEP2502021EN
• Database Version : 2023-02
• Pep Verification Date : 2025-02-23
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Data Source : referent product
• Functional Unit Description : To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal majorly in industrial applications. Product has lifetime of 10 years with a 30% use rate and product is adhering to international standards IEC 61810-1.not applicable
• Functional Unit Unit : Unit
• Energy Model Manufacturing A1 A3 2 : China, CN
• Energy Model Installation A5 2 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Environment Attributes Main
• Ambient Air Temperature For Operation : -40-55 °C, -40-55 °C
• Take Back : Nej
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Carbon Footprint : 30.331383323823434
• Ambient Air Temperature For Storage : -40-85 °C
• Environmental Disclosure : ENVPEP2502021EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP40 conforming to IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2502021EN
• Pep Verification Date : 2025-02-23
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : DIN rail/panel mount relay
• Range Of Product : Harmony Electromechanical Relays
• ETIM
• ETIM 8 : EC001437
• ETIM 9 : EC001437
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Singapore, United States
• Overview Attributes
• Device Presentation : complete product
