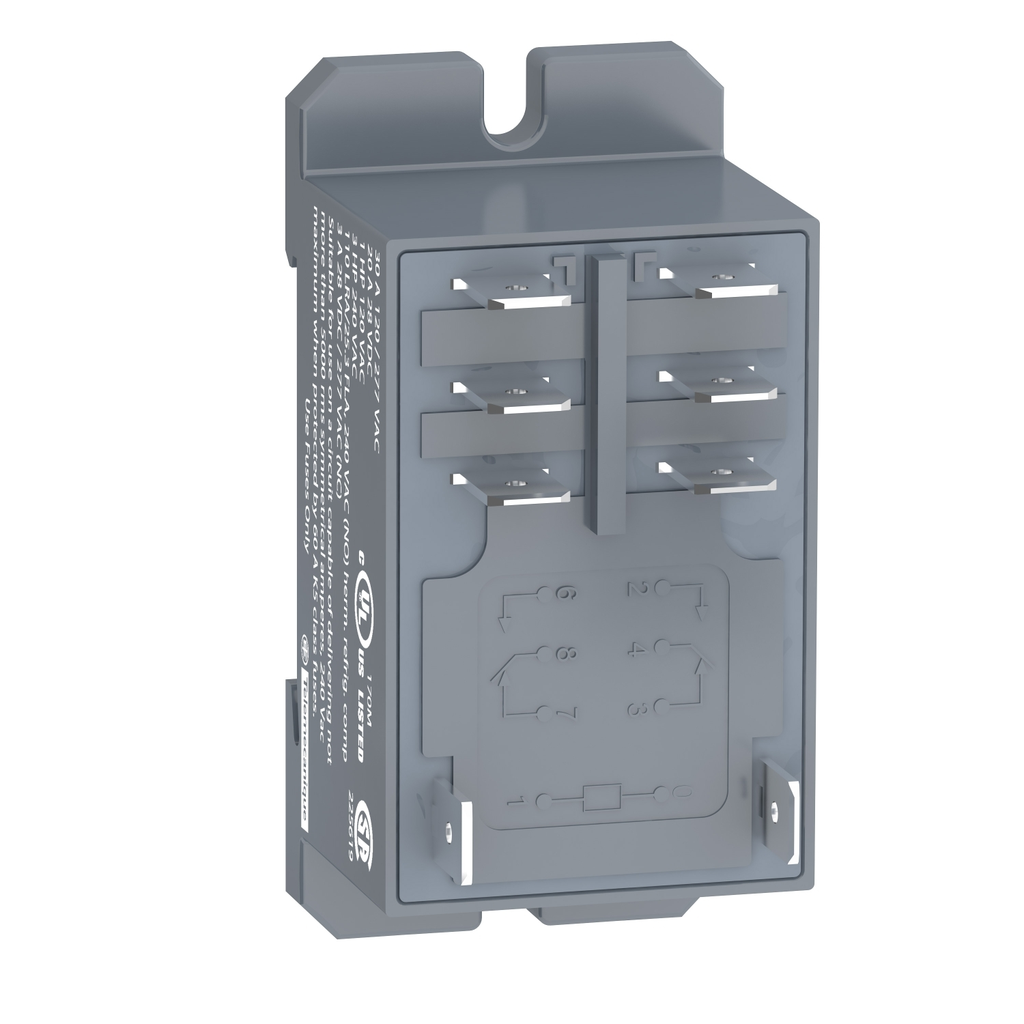

This Harmony RPF panel mounting power relay with fast-on terminals has a coil control voltage of 120V AC and has 2 normally open contacts with a rating of 30A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0 0 0

• Environment
• Product Certifications : UL || GOST || CE || CSA
• Standards : IEC 61810-1 || UL 508 || CSA C22.2 No 14
• Pollution Degree : 3
• Ambient Air Temperature For Operation : -40-55 °C
• Dielectric Strength : 2000 V AC between poles with basic || 4000 V AC between coil and contact with reinforced || 1500 V AC between contacts with micro disconnection
• Vibration Resistance : 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 10 gn +/- 1 mm 10-150 Hz)5 cycles not operating
• Shock Resistance : 10 gnin operation || 30 gnnot operating
• Ip Degree Of Protection : IP40 conforming to IEC 60529
• Ambient Air Temperature For Storage : -40-85 °C
• Contractual warranty
• Warranty : 18 months
• Offer Sustainability
• Rohs Exemption Information : Yes
• Environmental Disclosure : ENVPEP130203EN
• Sustainable Offer Status : Green Premium product
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc : Yes
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation : X
• Circularity Profile : N/A
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Maximum Switching Capacity : 7500 VA/700 W
• Safety Reliability Data : B10d = 100000
• Average Consumption : 4 VA 60 Hz
• Operating Rate : <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
• Protection Category : RT II
• Test Levels : level A group mounting
• Mounting Support : DIN rail || panel
• Electrical Durability : 100000 cycles resistive
• Reset Time : 25 ms
• Net Weight : 0.082 kg
• Cad Overall Height : 68.5 mm
• Maximum Switching Voltage : 250 V IEC
• Average Resistance : 4250 Ohm at 20 °C +/- 15 %
• Device Presentation : complete product
• [Ie] Rated Operational Current : 30 A 277 V AC) NO UL || 20 A 28 V DC) NO UL || 30 A 250 V AC) NO IEC || 25 A 28 V DC) NO IEC || 3 A 277 V AC) NC UL || 3 A 28 V DC) NC UL || 3 A 250 V AC) NC IEC || 3 A 28 V DC) NC IEC
• [Ui] Rated Insulation Voltage : 250 V IEC || 300 V UL
• Mechanical Durability : 5000000 cycles
• Operating Position : any position
• Control Circuit Voltage Limits : 96...132 V
• Operating Time : 25 ms
• Drop-Out Voltage Threshold : >= 0.15 Uc
• [Uimp] Rated Impulse Withstand Voltage : 4 kV 1.2/50 µs
• Cad Overall Width : 33.7 mm
• Cad Overall Depth : 39.2 mm
• Minimum Switching Capacity : 6000 mW 500 mA / 12 V NO || 170 mW 10 mA / 6 V NC
• Specifications
• Utilisation Coefficient : 10 %
• [Uc] Control Circuit Voltage : 120 V AC 50/60 Hz
• Range Of Product : Harmony Electromechanical Relays
• Contacts Material : silver tin oxide
• Shape Of Pin : flat
• Product Or Component Type : DIN rail/panel mount relay
• Control Type : without lockable test button
• Series Name : Power
• Contacts Type And Composition : 2 C/O
• Load Current : 25 A 28 V DC || 30 A 250 V AC
• Device Short Name : RPF
• [Ithe] Conventional Enclosed Thermal Current : 25 A -40-55 °C relays side by side without a gap || 30 A -40-55 °C 13 mm gap between two relays
