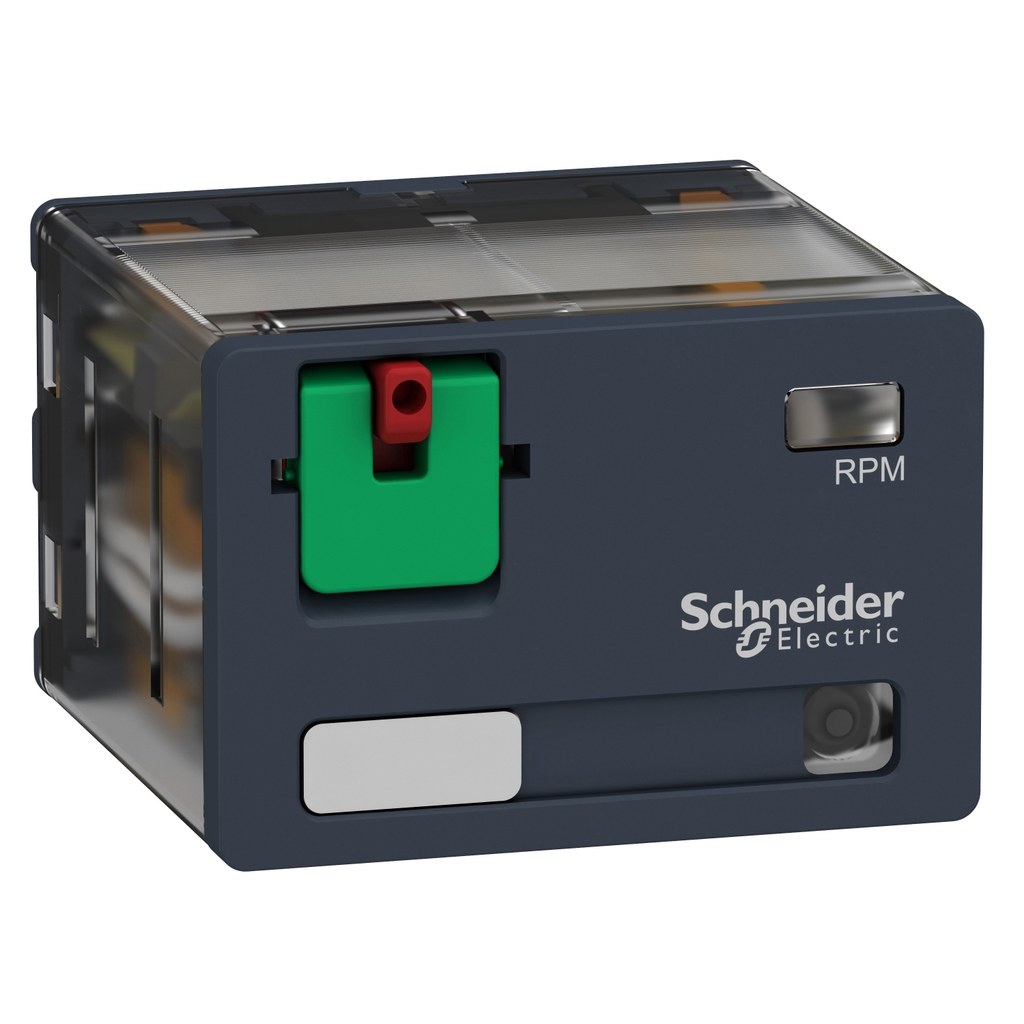

plug-in relay, Harmony electromechanical relays, 15A, 4CO, with LED, lockable test button, 120V AC

PLUG-IN RELAY 250V 15A RPM +OP

SQDRPM42F7 RPM42F7 3389119402248
21.63 / EA
http://schema.org/OutOfStock
Mayer-DDS-plug-in relay, Harmony electromechanical relays, 15A, 4CO, with LED, lockable test button, 120V AC-1
  • Country of Origin: China
  • Operating Position: Any Position
  • Warranty Length: 18 mth
This Harmony RPM power plug-in relay has a coil control voltage of 120V AC and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED ind
QTY
  • Product Description
  • Features
  • Specifications
This Harmony RPM power plug-in relay has a coil control voltage of 120V AC and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED ind
  • Uc Control Circuit Voltage
    • 120 V AC 50/60 Hz
  • Test Levels
    • level A group mounting
  • Uimp Rated Impulse Withstand Voltage
    • 4 kV 1.2/50 µs
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
  • Carbon Footprint Of The Installation Phase A5
    • 0 kg CO2 eq.
    • 0.00017537448677886803
  • Load Current
    • 15 A 250 V AC
    • 15 A 28 V DC
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.12900050089224432
    • 0.1 kg CO2 eq.
  • Standards
    • CSA C22.2 No 14
    • UL 508
    • IEC 61810-1
  • Ui Rated Insulation Voltage
    • 250 V IEC
    • 300 V CSA
    • 300 V UL
  • Operating Time
    • 20 ms at nominal voltage
  • Maximum Switching Voltage
    • 250 V IEC
  • Ip Degree Of Protection
    • IP40 conforming to IEC 60529
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.8 kg CO2 eq.
    • 0.7708014046727648
  • Electrical Durability
    • 100000 cycles resistive
  • Reset Time
    • 20 ms at nominal voltage
  • Vibration Resistance
    • 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation
    • 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
    • 5 gn +/- 1 mm 10-150 Hz
  • Market Segmentation
    • Commercial
    • Industrial
  • Rated Operational Voltage Limits
    • 96...132 V AC
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Drop Out Voltage Threshold
    • >= 0.15 Uc AC
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 35 kg CO2 eq.
    • 35.36891920468102
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Dielectric Strength
    • 1500 V AC between contacts with micro disconnection
    • 2000 V AC between coil and contact with reinfo
  • Average Coil Consumption In VA
    • 2.5 60 Hz
  • Carbon Footprint Of The Distribution Phase A4
    • 0.040106268715611425
    • 0 kg CO2 eq.
  • Average Resistance
    • 2100 Ohm at 20 °C +/- 15 %
  • Ie Rated Operational Current
    • 15 A 277 V AC) UL
    • 15 A 28 V DC) UL
    • 15 A 250 V AC) NO IEC
    • 15 A
  • Minimum Switching Capacity
    • 170 mW 10 mA, 17 V
  • Ithe Conventional Enclosed Thermal Current
    • 15 A -40-55 °C
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Operating Rate
    • <= 1200 cycles/hour under load
    • <= 18000 cycles/hour no-load
  • Maximum Switching Capacity
    • 3750 VA
    • 420 W
  • Shock Resistance
    • 15 gnin operation
    • 30 gnnot operating
  • Product Certifications
    • UL
    • EAC
    • CSA
  • Complementary Attributes
    • Control Circuit Type : AC
    • Line Rated Current : 15 A
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-18
    • ETIM 10 : EC001437
    • Html Descr : Power plug-in relay, Zelio RPM, 4 C/O, 120 V AC, 15 A, with LED
    • Manufacturer : Schneider Electric
    • Manufacturing Carbon Footprint : 0.770801404672765
    • Distribution Carbon Footprint : 4.01062687156114e-02
    • Installation Carbon Footprint : 1.75374486778868e-04
    • Use Carbon Footprint : 35.368919204681
    • End Of Life Carbon Footprint : 0.129000500892244
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1930
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Compatibility Code : RPM
    • Contacts Material : AgNi
    • Contacts Type And Composition : 4 C/O
    • Control Type : lockable test button
    • Mechanical Durability : 10000000 cycles
    • Mounting Support : plug-in
    • Operating Position : any position
    • Package Weight Lbs : 72.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : plug-in relay
    • Protection Category : RT I
    • Range Of Product : Harmony Electromechanical Relays
    • Relay Type : power relay
    • Returnability : Yes
    • Safety Reliability Data : B10d = 100000
    • Series Name : RPM series
    • Shape Of Pin : flat (faston type)
    • Status Led : with
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 36 kg CO2 eq.
    • Utilisation Coefficient : 20 %
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 36.309002753448425
    • Relationshiptype : Compatible relationship
    • Accessories : RPZF4
  • General Attributes
    • Product Or Component Type : plug-in relay
    • Range Of Product : Harmony Electromechanical Relays
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=648754&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Carbon Footprint : 36.3090027534484
    • Ambient Air Temperature For Operation : -40-55 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Environmental Disclosure : ENVPEP2506026EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : China
  • Overview Attributes
    • Device Presentation : complete product
