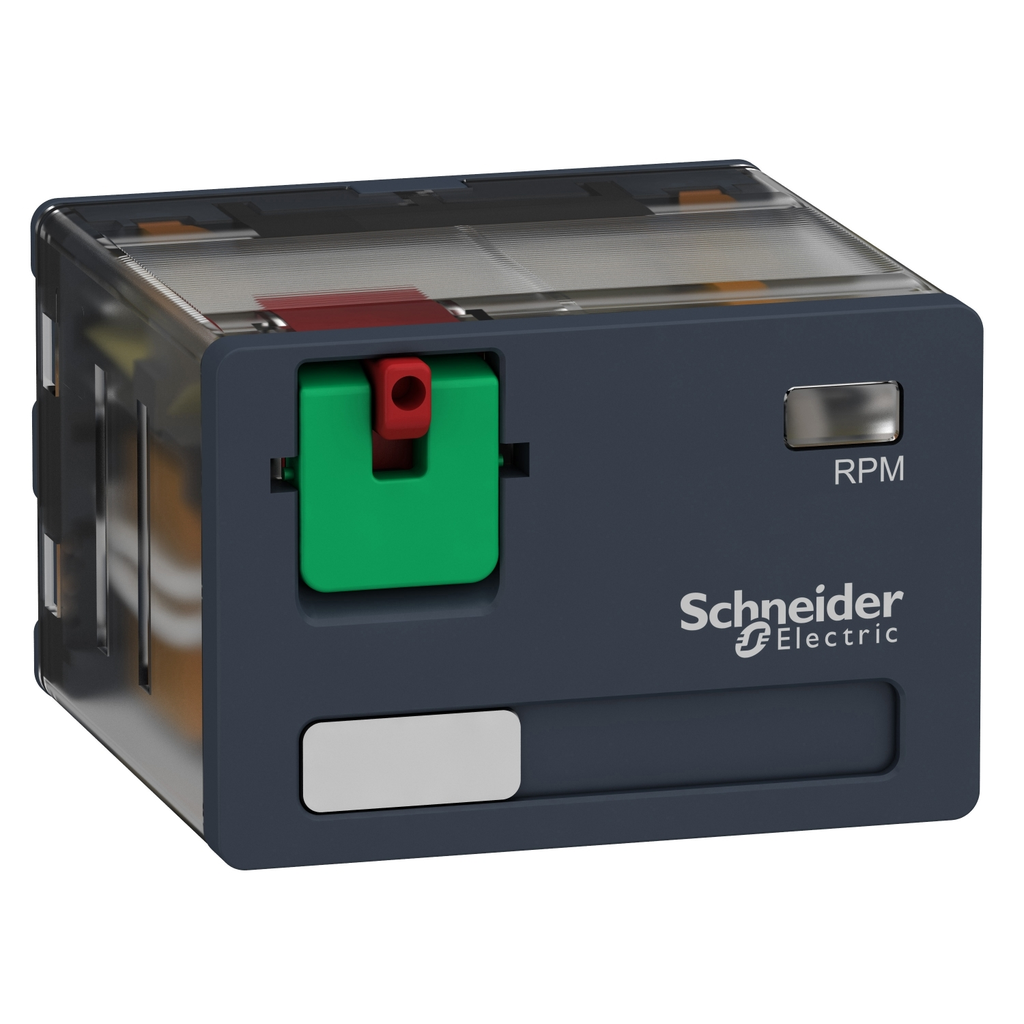

This Harmony RPM power plug-in relay has a coil control voltage of 120V AC and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type enables easy installation and maintenance. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : UL, CSA, EAC
• Standards : UL 508, IEC 61810-1, CSA C22.2 No 14
• Complementary Attributes
• Maximum Switching Capacity : 3750 VA, 420 W
• Ie Rated Operational Current : 15 A 28 V DC) NO IEC, 7.5 A 28 V DC) NC IEC, 15 A 277 V AC) UL, 15 A 28 V DC) UL, 15 A 250 V AC) NO IEC, 7.5 A 250 V AC) NC IEC
• Uc Control Circuit Voltage : 120 V AC 50/60 Hz, 120 V
• Ui Rated Insulation Voltage : 250 V IEC, 300 V CSA, 300 V UL
• Control Circuit Type : AC
• Line Rated Current : 15 A
• Maximum Switching Voltage : 250 V IEC
• Minimum Switching Capacity : 170 mW 10 mA, 17 V
• Rated Operational Voltage Limits : 96...132 V AC
• Uimp Rated Impulse Withstand Voltage : 4 kV 1.2/50 µs
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Control Type : lockable test button, lockable test button
• Dielectric Strength : 1500 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with reinforced, 2000 V AC between poles with basic
• Drop Out Voltage Threshold : >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.15 Uc AC
• Load Current : 15 A 250 V AC, 15 A 28 V DC
• Operating Rate : <= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
• Shock Resistance : 15 gnin operation, 30 gnnot operating
• Status Led : without, without
• Vibration Resistance : 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
• Ie Rated Operational Current : 15 A 28 V DC) NO IEC, 7.5 A 28 V DC) NC IEC, 15 A 277 V AC) UL, 15 A 28 V DC) UL, 15 A 250 V AC) NO IEC, 7.5 A 250 V AC) NC IEC
• Carbon Footprint Of The Distribution Phase A4 : 0.03905897092959206, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.12563190183512865, 0.1 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0001707949206010676
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.8 kg CO2 eq., 0.7506734139514496
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 32 kg CO2 eq., 32.233608349571526
• Contacts Composition : 4 C/O
• Local Data Status : Publishable
• Local Publishable Date : 2026-03-26
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : Y
• Stock Policy : 1
• Legacy Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• China Rohs Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Coil Consumption In Va : 2.5 60 Hz
• Average Resistance : 2100 Ohm at 20 °C +/- 15 %
• Compatibility Code : RPM
• Contacts Material : AgNi
• Contacts Type And Composition : 4 C/O
• Electrical Durability : 100000 cycles resistive
• Mechanical Durability : 10000000 cycles
• Mounting Support : plug-in
• Operating Position : any position
• Operating Time : 20 ms at nominal voltage
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : plug-in relay
• Protection Category : RT I
• Range Of Product : Harmony Electromechanical Relays
• Relay Type : power relay
• Reset Time : 20 ms at nominal voltage
• Returnability : Yes
• Safety Reliability Data : B10d = 100000
• Series Name : RPM series
• Shape Of Pin : flat (faston type)
• Software Version : v6.3.0.1-4
• Sustainable Packaging : Yes
• Test Levels : level A group mounting
• Total Lifecycle Carbon Footprint : 33 kg CO2 eq.
• Utilisation Coefficient : 20 %
• Ithe Conventional Enclosed Thermal Current : 15 A -40-55 °C
• Warranty In Months : 18
• Control Circuit Voltage : 120 V
• Pep Code : ENVPEP2506026EN
• Database Version : 2024-01
• Pep Verification Date : 2025-06-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal majorly in industrial applications. Product has lifetime of 10 years with a 30% use rate and product is adhering to international standards IEC 61810-1.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Product Weight In G2 : 74.59
• Reference Lifetime In Y2 : 10
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; High voltage; 2020; China, CN
• Energy Model Installation A5 2 : No energy used
• Energy Model Use B6 2 : Electricity Mix; Low voltage; 2020; Global, GLO
• Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
• Recyclability Potential In 2 : 67
• Offer Owner Code : 190786
• Environment Attributes Main
• Ambient Air Temperature For Operation : -40-55 °C, -40-55 °C
• Take Back : Nej
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Carbon Footprint : 33.149143431208294
• Ambient Air Temperature For Storage : -40-85 °C
• Environmental Disclosure : ENVPEP2506026EN
• Eu Rohs Directive : Compliant
• Ip Degree Of Protection : IP40 conforming to IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2506026EN
• Pep Verification Date : 2025-06-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : plug-in relay
• Range Of Product : Harmony Electromechanical Relays
• ETIM
• ETIM 8 : EC001437
• ETIM 9 : EC001437
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : complete product
