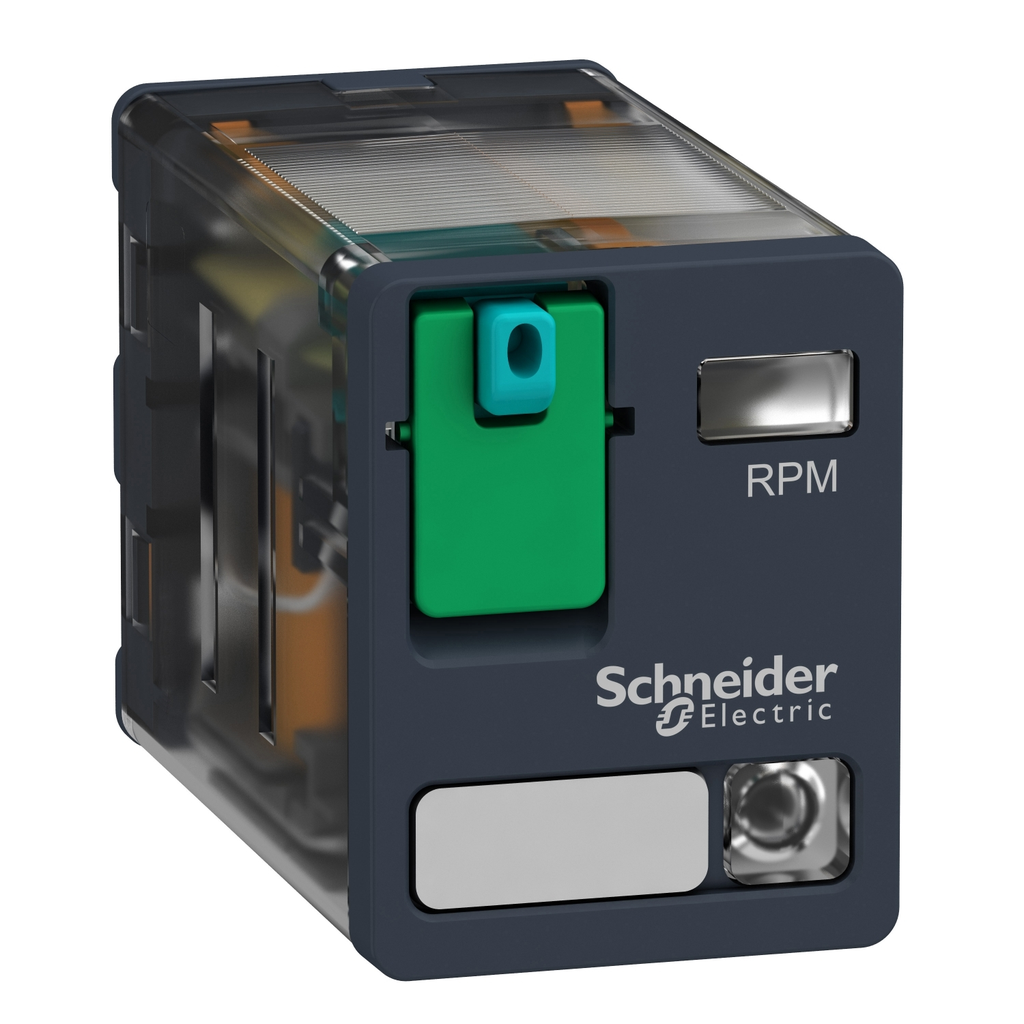

Power plug-in relay, 15 A, 2 CO, with LED, 24 V DC

Power plug-in relay, 15 A, 2 CO, with LED, 24 V DC

SQDRPM22BD RPM22BD 785901447863
10.50 / EACH
  • Certifications: CSA, EAC, REACH, RoHS, UL
  • Contact Material: Silver Alloy
  • Operating Cycles: <= 1200 Cycles/hour Under Load, <= 18000 Cycles/hour No-load
  • Standard: CSA C22.2 No 14, EN/IEC 61810-1, UL 508
  • Weight: 0.036 kg, 0.08 lbs
This Zelio RPM power plug-in relay has a coil control voltage of 24V DC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere. This RPM product is IP40. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Status display with LED: clearly signal both in the day and night.
  • Product Description
  • Additional Information
This Zelio RPM power plug-in relay has a coil control voltage of 24V DC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere. This RPM product is IP40. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Status display with LED: clearly signal both in the day and night.
  • Specifications
    • Main
      • Range Of Product : Zelio Relay
      • Series Name : Power
      • Product Or Component Type : Plug-in relay
      • Device Short Name : RPM
      • Contacts Type And Composition : 2 C/O
      • Uc Control Circuit Voltage : 24 V DC
      • Ithe Cnvtl Enclosed Therm Crrt : 15 A -40…131 °F (-40…55 °C)
      • Status Led : With
      • Control Type : Lockable test button
      • Utilisation Coefficient : 20 %
    • Complementary
      • Shape Of Pin : Flat
      • Ui Rated Insulation Voltage : 250 V IEC || 300 V CSA || 300 V UL
      • Uimp Rated Imp Wstd Voltage : 4 kV 1.2/50 µs
      • Contacts Material : AgNi
      • Ie Rated Operational Current : 15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC
      • Maximum Switching Voltage : 250 V IEC
      • Resistive Load Current : 15 A 250 V AC || 15 A 28 V DC
      • Maximum Switching Capacity : 3750 VA || 420 W
      • Minimum Switching Capacity : 170 mW 10 mA, 17 V
      • Operating Rate : <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
      • Mechanical Durability : 10000000 cycles
      • Electrical Durability : 100000 cycles resistive
      • Average Coil Consumption : 0.85 W
      • Drop-Out Voltage Threshold : >= 0.1 Uc DC
      • Operate Time : 20 ms at nominal voltage
      • Release Time : 20 ms at nominal voltage
      • Average Coil Resistance : 640 Ohm 68 °F (20 °C) +/- 10 %
      • Rated Opr Voltage Limits : 19.2...26.4 V DC
      • Protection Category : RT I
      • Test Levels : Level A
      • Operating Position : Any position
      • Pollution Degree : 3
      • Safety Reliability Data : B10d = 100000
      • Product Weight : 0.08 lb(US) (0.036 kg)
      • Device Presentation : Complete product
    • Environment
      • Dielectric Strength : 1500 V AC between contacts micro disconnection || 2000 V AC between coil and contact reinforced || 2000 V AC between poles basic
      • Standards : CSA C22.2 No 14 || EN/IEC 61810-1 || UL 508
      • Product Certifications : EAC || REACH || UL || CSA || RoHS
      • Ambient Air Temp For Storage : -40…185 °F (-40…85 °C)
      • Ambient Air Temp For Op : -40…131 °F (-40…55 °C)
      • Vibration Resistance : 3 gn +/- 1 mm 10…150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10…150 Hz)5 cycles not operating
      • Degree Of Protection (Housing Only) : IP40 EN/IEC 60529
      • Shock Resistance : 15 gnin operation || 30 gnnot operating
    • Ordering And Shipping Details
      • Category : 21127 - ZELIO ICE CUBE RELAYS
      • Discount Schedule : CP2
      • GTIN : 00785901447863
      • Nbr. Of Units In Pkg. : 10
      • Returnability : Yes
      • Country Of Origin : CN
    • Offer Sustainability
      • Green Premium Status : Green Premium product
      • REACh Free Of SVHC : Yes
      • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
      • Toxic Heavy Metal Free : Yes
      • Mercury Free : Yes
      • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Contractual Warranty
      • Warranty : 18 months
