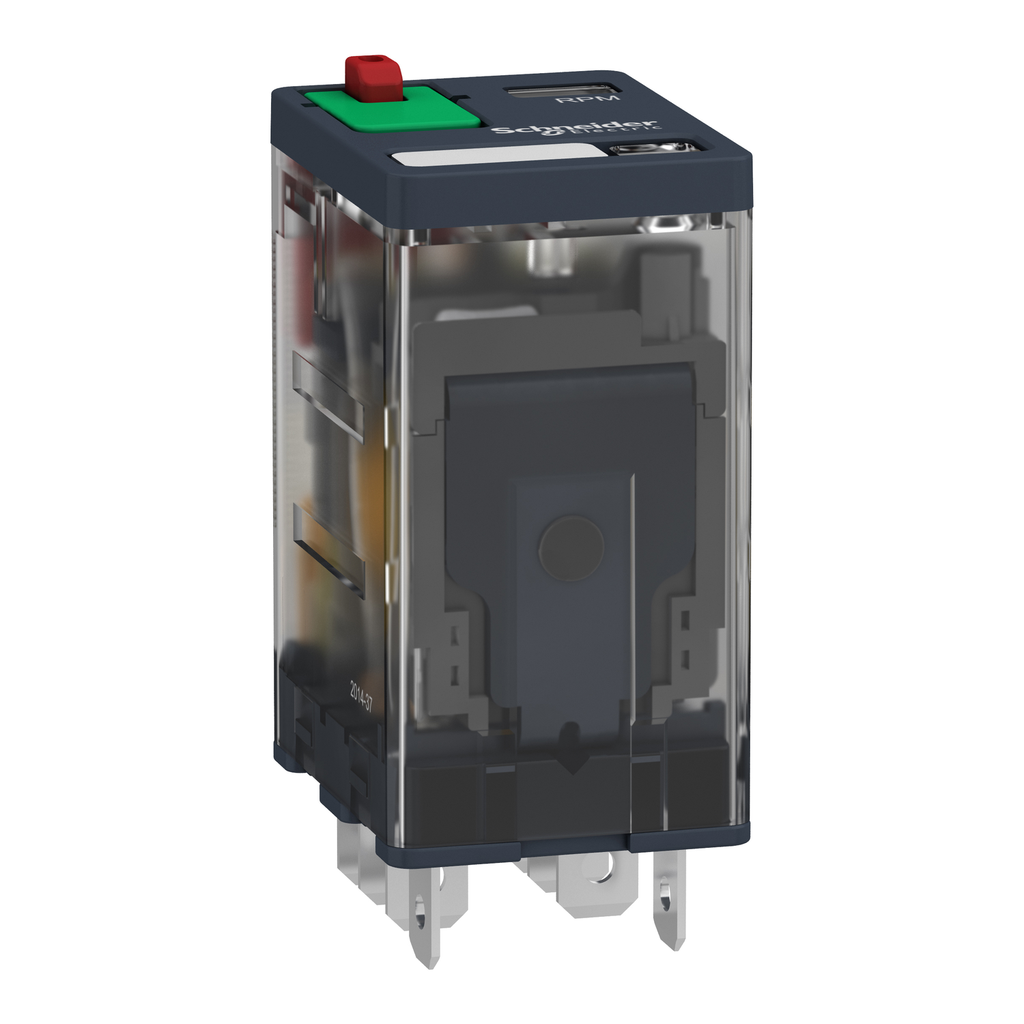

Harmony, Power plug-in relay, 15 A, 2 CO, with LED, with lockable test button, 24 V AC

DPDT 24VAC 8BLADE CUBE RELAY

SQDRPM22B7 RPM22B7 785901447856
10.50 / EACH
  • Certifications: CSA, EAC, UL
  • Contact Material: Silver Alloy
  • Net Weight: 0.036 kg
  • Operating Cycles: <= 1200 Cycles/hour Under Load, <= 18000 Cycles/hour No-load
  • Operating Temperature: -40-55 °C
  • Standard: CSA C22.2 No 14, EN/IEC 61810-1, UL 508
  • Storage Temperature: -40-85 °C
  • Warranty Length: 18 mth
This Zelio RPM power plug-in relay has a coil control voltage of 24V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere. This RPM product is IP40. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Status display with LED: clearly signal both in the day and night.
  • Product Description
  • Specifications
This Zelio RPM power plug-in relay has a coil control voltage of 24V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere. This RPM product is IP40. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Status display with LED: clearly signal both in the day and night.
  • Complementary
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV 1.2/50 µs
    • Minimum Switching Capacity : 170 mW 10 mA, 17 V
    • Safety Reliability Data : B10d = 100000
    • Maximum Switching Voltage : 250 V IEC
    • Operating Position : any position
    • Operating Rate : <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
    • Average Coil Consumption In Va : 1.1 60 Hz
    • Device Presentation : complete product
    • Average Resistance : 177 Ohm at 20 °C +/- 15 %
    • Operating Time : 20 ms at nominal voltage
    • Mechanical Durability : 10000000 cycles
    • Reset Time : 20 ms at nominal voltage
    • Rated Operational Voltage Limits : 19.2...26.4 V AC
    • Protection Category : RT I
    • Shape Of Pin : flat
    • [Ui] Rated Insulation Voltage : 250 V IEC || 300 V CSA || 300 V UL
    • [Ie] Rated Operational Current : 15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC
    • Pollution Degree : 3
    • Test Levels : level A
    • Electrical Durability : 100000 cycles resistive
    • Drop-Out Voltage Threshold : >= 0.15 Uc AC
    • Load Current : 15 A 250 V AC || 15 A 28 V DC
    • Maximum Switching Capacity : 3750 VA || 420 W
    • Contacts Material : AgNi
    • Net Weight : 0.036 kg
  • Utilisation Coefficient : 20 %
  • Range Of Product : Harmony Electromechanical Relays
  • Product Or Component Type : plug-in relay
  • Contacts Type And Composition : 2 C/O
  • [Uc] Control Circuit Voltage : 24 V AC 50/60 Hz
  • Control Type : lockable test button
  • Device Short Name : RPM
  • [Ithe] Conventional Enclosed Thermal Current : 15 A -40-55 °C
  • Series Name : Power
  • Status Led : with
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Sustainable Offer Status : Green Premium product
    • Environmental Disclosure : ENVPEP1406038EN
    • Toxic Heavy Metal Free : Yes
    • China Rohs Regulation : X
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Rohs Exemption Information : Yes
  • Environment
    • Ip Degree Of Protection : IP40 conforming to EN/IEC 60529
    • Ambient Air Temperature For Operation : -40-55 °C
    • Product Certifications : EAC || UL || CSA
    • Shock Resistance : 15 gnin operation || 30 gnnot operating
    • Dielectric Strength : 1500 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
    • Standards : UL 508 || CSA C22.2 No 14 || EN/IEC 61810-1
    • Vibration Resistance : 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
    • Ambient Air Temperature For Storage : -40-85 °C
