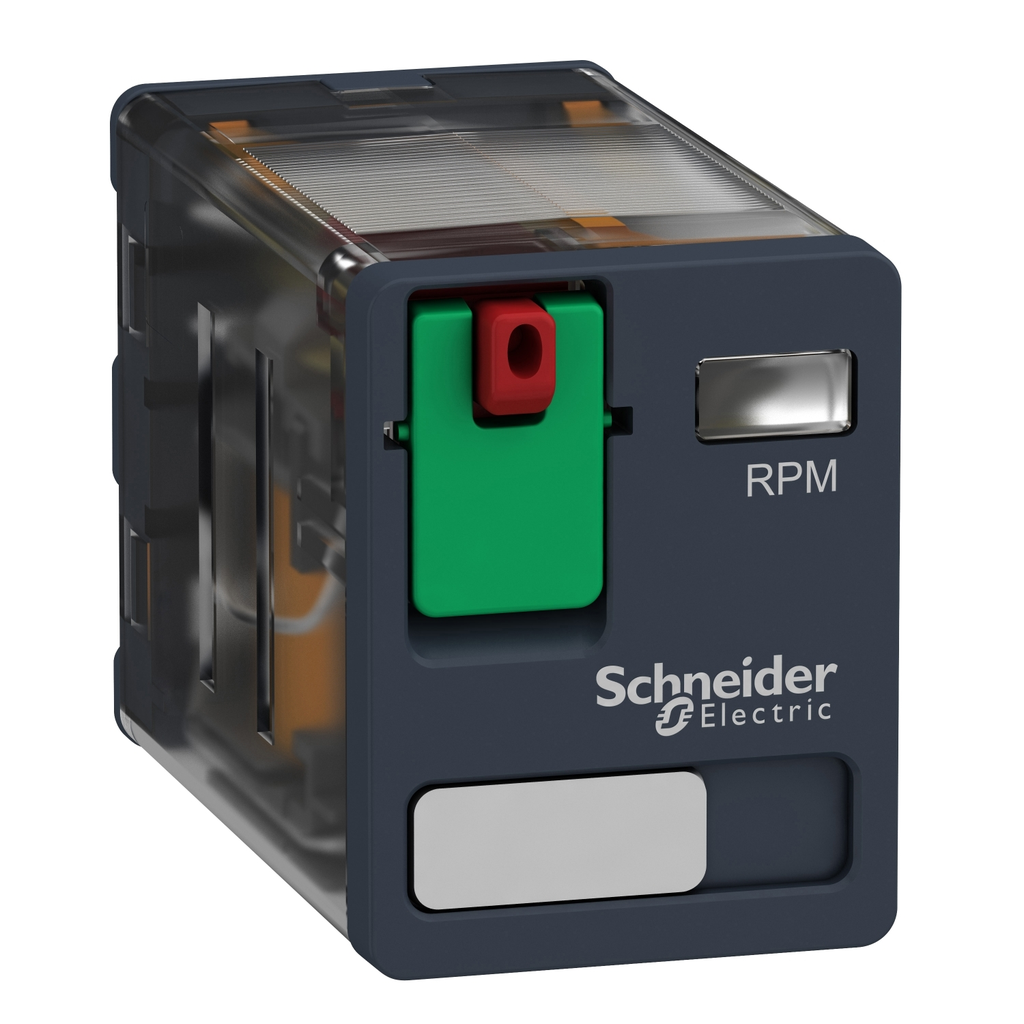

Harmony, Power plug-in relay, 15 A, 2 CO, with lockable test button, 230 V AC

Harmony, Power plug-in relay, 15 A, 2 CO, with lockable test button, 230 V AC

SQDRPM21P7 RPM21P7 785901639787
9.26 / EACH
  • Certifications: CSA, EAC, UL
  • Contact Material: Silver Alloy
  • Net Weight: 0.036 kg
  • Operating Cycles: <= 1200 Cycles/hour Under Load, <= 18000 Cycles/hour No-load
  • Operating Temperature: -40-55 °C
  • Standard: CSA C22.2 No 14, EN/IEC 61810-1, UL 508
  • Storage Temperature: -40-85 °C
  • Warranty Length: 18 mth
This Zelio RPM power plug-in relay has a coil control voltage of 230V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability: you can mount nearly everywhere. Plug in type enables easy installation and maintenance. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs).
  • Product Description
  • Specifications
This Zelio RPM power plug-in relay has a coil control voltage of 230V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It helps to reduce the size of enclosures and increases machine reliability: you can mount nearly everywhere. Plug in type enables easy installation and maintenance. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs).
  • Series Name : Power
  • Range Of Product : Harmony Electromechanical Relays
  • [Uc] Control Circuit Voltage : 230 V AC 50/60 Hz
  • Product Or Component Type : plug-in relay
  • Device Short Name : RPM
  • [Ithe] Conventional Enclosed Thermal Current : 15 A -40-55 °C
  • Status Led : without
  • Utilisation Coefficient : 20 %
  • Control Type : lockable test button
  • Contacts Type And Composition : 2 C/O
  • Complementary
    • Drop-Out Voltage Threshold : >= 0.15 Uc AC
    • Reset Time : 20 ms at nominal voltage
    • Pollution Degree : 3
    • Net Weight : 0.036 kg
    • Operating Position : any position
    • [Ui] Rated Insulation Voltage : 250 V IEC || 300 V CSA || 300 V UL
    • Shape Of Pin : flat
    • Protection Category : RT I
    • Average Coil Consumption In Va : 1.1 60 Hz
    • Safety Reliability Data : B10d = 100000
    • Operating Rate : <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
    • Mechanical Durability : 10000000 cycles
    • Maximum Switching Capacity : 3750 VA || 420 W
    • Operating Time : 20 ms at nominal voltage
    • Test Levels : level A
    • Maximum Switching Voltage : 250 V IEC
    • Device Presentation : complete product
    • Load Current : 15 A 250 V AC || 15 A 28 V DC
    • Rated Operational Voltage Limits : 184...253 V AC
    • Contacts Material : AgNi
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV 1.2/50 µs
    • Average Resistance : 16270 Ohm at 20 °C +/- 15 %
    • [Ie] Rated Operational Current : 15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC
    • Electrical Durability : 100000 cycles resistive
    • Minimum Switching Capacity : 170 mW 10 mA, 17 V
  • Environment
    • Shock Resistance : 15 gnin operation || 30 gnnot operating
    • Ambient Air Temperature For Operation : -40-55 °C
    • Standards : EN/IEC 61810-1 || UL 508 || CSA C22.2 No 14
    • Ip Degree Of Protection : IP40 conforming to EN/IEC 60529
    • Vibration Resistance : 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
    • Ambient Air Temperature For Storage : -40-85 °C
    • Product Certifications : UL || EAC || CSA
    • Dielectric Strength : 1500 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with reinforced || 2000 V AC between poles with basic
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1406038EN
    • Sustainable Offer Status : Green Premium product
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
