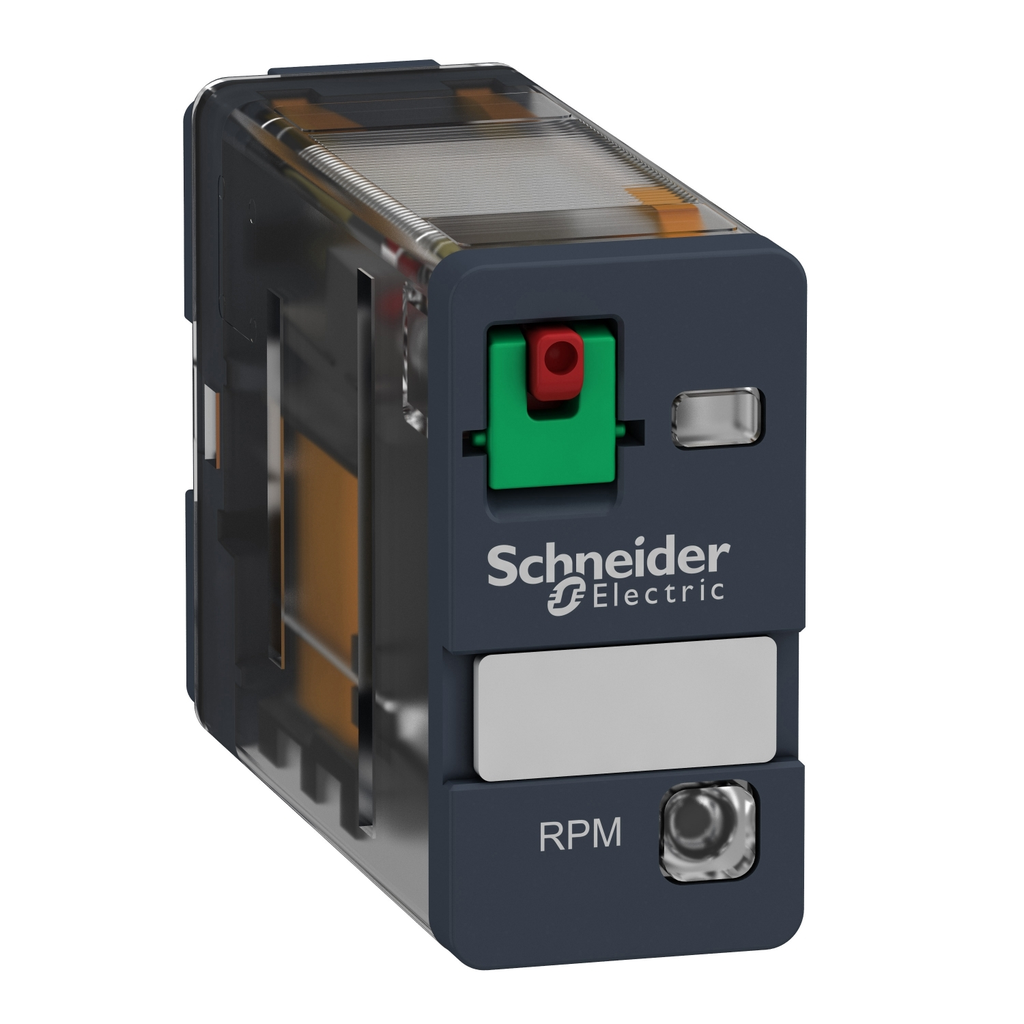

This Harmony RPM power plug-in relay has a coil control voltage of 230V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0 0 0

• Features
• High performance ensuring machine and system availability
• Flexibility to meet most industrial applications
• Pre-assembled to simplify selection and installation
• Simplicity of use with test button and visual indicators
• Status display with LED
• Mechanical durability of 10 million cycles
• Electrical durability of 100,000 cycles
• IP40 degree of protection
• Wide range of operating temperature from -40°F to 131°F
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : CSA, EAC, UL
• Standards : CSA C22.2 No 14, UL 508, IEC 61810-1
• Complementary Attributes
• Maximum Switching Capacity : 3750 VA, 420 W
• Control Circuit Type : AC
• Line Rated Current : 15 A
• Maximum Switching Voltage : 250 V IEC
• Minimum Switching Capacity : 170 mW 10 mA, 17 V
• Rated Operational Voltage Limits : 184...253 V AC
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Dielectric Strength : 1500 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with reinforced
• Drop Out Voltage Threshold : >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.15 Uc AC, >= 0.15 Uc AC
• Load Current : 15 A 250 V AC, 15 A 28 V DC
• Shock Resistance : 15 gnin operation, 30 gnnot operating
• Vibration Resistance : 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
• Ie Rated Operational Current2 : 15 A 277 V AC) UL, 15 A 28 V DC) UL, 15 A 250 V AC) NO IEC, 7.5 A 250 V AC) NC IEC
• Uc Control Circuit Voltage2 : 230 V AC 50/60 Hz, 230 V
• Ui Rated Insulation Voltage2 : 250 V IEC, 300 V CSA, 300 V UL
• Carbon Footprint Of The Distribution Phase A4 : 0.003096547, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.003218339, 0 kg CO2 eq.
• Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0000781022
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.2 kg CO2 eq., 0.2296505109
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 19 kg CO2 eq., 18.8471369192
• Operating Rate : <= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
• Ie Rated Operational Current5 : 15 A 277 V AC) UL, 15 A 28 V DC) UL, 15 A 250 V AC) NO IEC, 15 A 28 V DC) NO IEC, 7.5 A 250 V AC) NC IEC, 7.5 A 28 V DC) NC IEC
• Ui Rated Insulation Voltage5 : 250 V IEC, 300 V CSA, 300 V UL
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Manufacturer : Schneider Electric
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : RPM
• Contacts Material : AgNi
• Contacts Type And Composition : 1 C/O
• Control Type : lockable test button
• Electrical Durability : 100000 cycles resistive
• Mechanical Durability : 10000000 cycles
• Mounting Support : plug-in
• Operating Position : any position
• Operating Time : 20 ms at nominal voltage
• Package Weight Lbs : 24.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : plug-in relay
• Range Of Product : Harmony Electromechanical Relays
• Relay Type : power relay
• Returnability : Yes
• Series Name : RPM series
• Shape Of Pin : flat (faston type)
• Status Led : with
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 19 kg CO2 eq.
• Ithe Conventional Enclosed Thermal Current2 : 15 A -40-55 °C
• Uimp Rated Impulse Withstand Voltage2 : 4 kV 1.2/50 µs
• Medium Desc : plug-in relay, Harmony electromechanical relays, 15A, 1CO, with LED, lockable test button, 230V AC
• Stocking Flag : N
• Product Kit Identifier : N
• Pep Code : ENVPEP2506026EN
• Database Version : 2018-03
• Pep Verification Date : 2018-05-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
• Functional Unit Unit : unité (unit)
• Energy Model Manufacturing A1 A3 2 : Energy model used: China
• Energy Model Installation A5 2 : Electricity mix; AC; < 1kV; EU-27
• Energy Model Use B6 2 : Electricity mix; AC; < 1kV; EU-27
• Energy Model End Of Life C1 C4 2 : Electricity mix; AC; < 1kV; EU-27
• Average Coil Consumption In Va : 1.6 60 Hz
• Average Resistance : 16270 Ohm at 20 °C +/- 15 %
• Protection Category : RT I
• Reset Time : 20 ms at nominal voltage
• Safety Reliability Data : B10d = 100000
• Test Levels : level A group mounting
• Utilisation Coefficient : 20 %
• Global Commercial Status : Commercialised
• Ithe Conventional Enclosed Thermal Current5 : 15 A -40-55 °C
• Uc Control Circuit Voltage5 : 230 V AC 50/60 Hz
• Uimp Rated Impulse Withstand Voltage5 : 4 kV 1.2/50 µs
• Environment Attributes Main
• Take Back : Nej, No
• Ambient Air Temperature For Operation : -40-55 °C, -40-55 °C
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Carbon Footprint : 19.0831804183
• Ambient Air Temperature For Storage : -40-85 °C
• Environmental Disclosure : ENVPEP2506026EN
• IP Degree Of Protection : IP40 conforming to IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2506026EN
• Pep Verification Date : 2018-05-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : plug-in relay
• Range Of Product : Harmony Electromechanical Relays
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United States
• Overview Attributes
• Device Presentation : complete product
