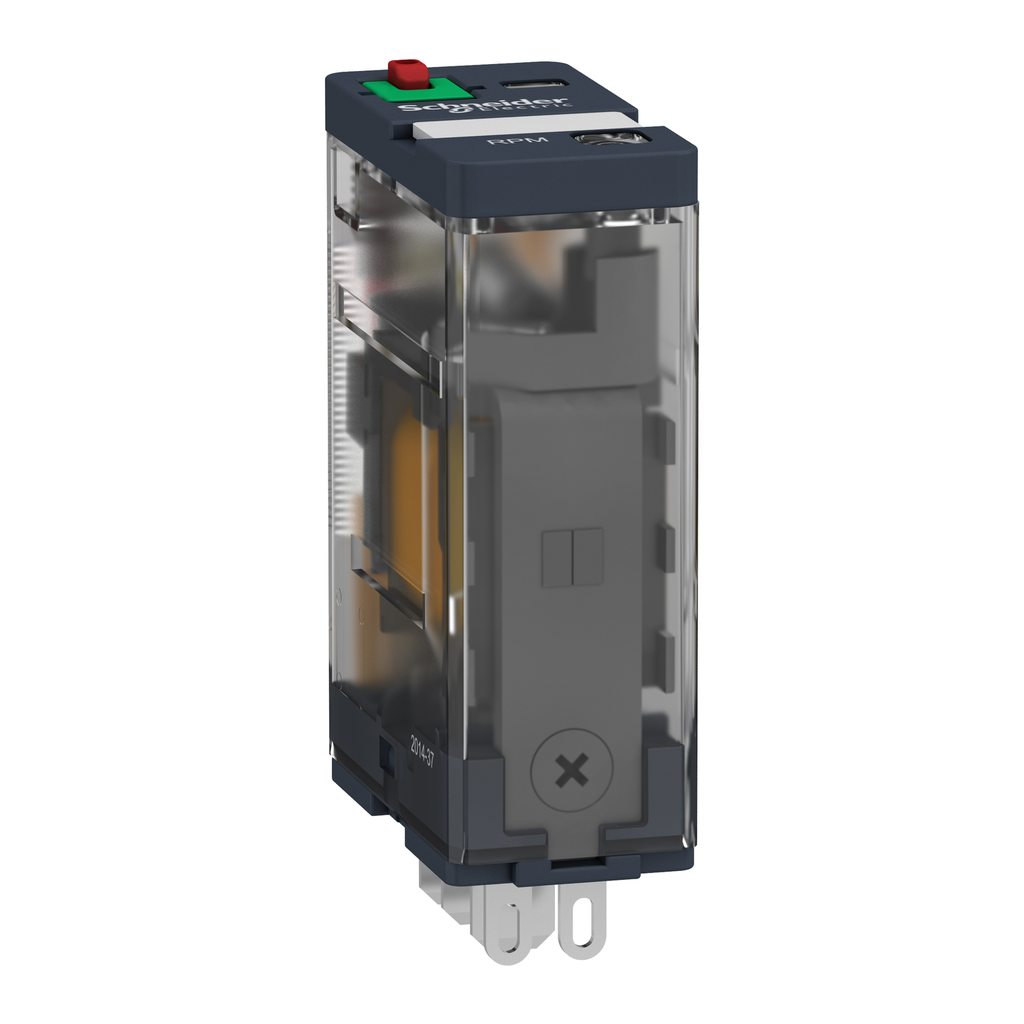

Power plug-in relay, 15 A, 1 CO, with LED, 120 V AC

Power plug-in relay, 15 A, 1 CO, with LED, 120 V AC

SQDRPM12F7 RPM12F7 785901447795
8.18 / EACH
  • Certifications: CSA, EAC, REACH, RoHS, UL
  • Contact Material: Silver Alloy
  • Country of Origin: China
  • Operating Cycles: <= 1200 Cycles/hour Under Load, <= 18000 Cycles/hour No-load
  • Standard: CSA C22.2 No 14, EN/IEC 61810-1, UL 508
  • Warranty Length: 18 mth
  • Weight: 0.026 kg, 0.06 lb
This Zelio RPM power plug-in relay has a coil control voltage of 120V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere. This RPM product is IP40. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Status display with LED: clearly signal both in the day and night.
  • Product Description
  • Specifications
This Zelio RPM power plug-in relay has a coil control voltage of 120V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability: you can mount nearly everywhere. This RPM product is IP40. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Status display with LED: clearly signal both in the day and night.
  • Ordering And Shipping Details
    • Discount Schedule : CP2
    • Country Of Origin : CN
    • GTIN : 00785901447795
    • Category : 21127 - ZELIO ICE CUBE RELAYS
    • Nbr. Of Units In Pkg. : 10
    • Returnability : Yes
  • Main
    • Device Short Name : RPM
    • Product Or Component Type : Plug-in relay
    • Utilisation Coefficient : 20 %
    • Status Led : With
    • Range Of Product : Harmony Relay
    • Ithe Cnvtl Enclosed Therm Crrt : 15 A -40…131 °F (-40…55 °C)
    • Series Name : Power
    • Contacts Type And Composition : 1 C/O
    • Uc Control Circuit Voltage : 120 V AC
    • Control Type : Lockable test button
  • Complementary
    • Operating Position : Any position
    • Minimum Switching Capacity : 170 mW 10 mA, 17 V
    • Rated Opr Voltage Limits : 96...132 V AC
    • Test Levels : Level A
    • Average Coil Resistance : 4430 Ohm 68 °F (20 °C) +/- 15 %
    • Pollution Degree : 3
    • Protection Category : RT I
    • Maximum Switching Voltage : 250 V IEC
    • Device Presentation : Complete product
    • Operating Rate : <= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
    • Safety Reliability Data : B10d = 100000
    • Ie Rated Operational Current : 15 A 277 V AC) UL || 15 A 28 V DC) UL || 15 A 250 V AC) NO IEC || 15 A 28 V DC) NO IEC || 7.5 A 250 V AC) NC IEC || 7.5 A 28 V DC) NC IEC
    • Mechanical Durability : 10000000 cycles
    • Product Weight : 0.06 lb(US) (0.026 kg)
    • Electrical Durability : 100000 cycles resistive
    • Ui Rated Insulation Voltage : 250 V IEC || 300 V CSA || 300 V UL
    • Contacts Material : AgNi
    • Drop-Out Voltage Threshold : >= 0.15 Uc AC
    • Shape Of Pin : Flat
    • Average Coil Consumption In Va : 1.6 60 Hz
    • Uimp Rated Imp Wstd Voltage : 4 kV 1.2/50 µs
    • Release Time : 20 ms at nominal voltage
    • Resistive Load Current : 15 A 250 V AC || 15 A 28 V DC
    • Operate Time : 20 ms at nominal voltage
    • Maximum Switching Capacity : 3750 VA || 420 W
  • Contractual Warranty
    • Warranty : 18 months
  • Environment
    • Degree Of Protection (Housing Only) : IP40 EN/IEC 60529
    • Ambient Air Temp For Op : -40…131 °F (-40…55 °C)
    • Ambient Air Temp For Storage : -40…185 °F (-40…85 °C)
    • Shock Resistance : 15 gnin operation || 30 gnnot operating
    • Standards : CSA C22.2 No 14 || EN/IEC 61810-1 || UL 508
    • Product Certifications : EAC || REACH || CSA || UL || RoHS
    • Dielectric Strength : 1500 V AC between contacts micro disconnection || 2000 V AC between coil and contact reinforced
    • Vibration Resistance : 3 gn +/- 1 mm 10…150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10…150 Hz)5 cycles not operating
  • Offer Sustainability
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • REACh Free Of SVHC : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Green Premium Status : Green Premium product
