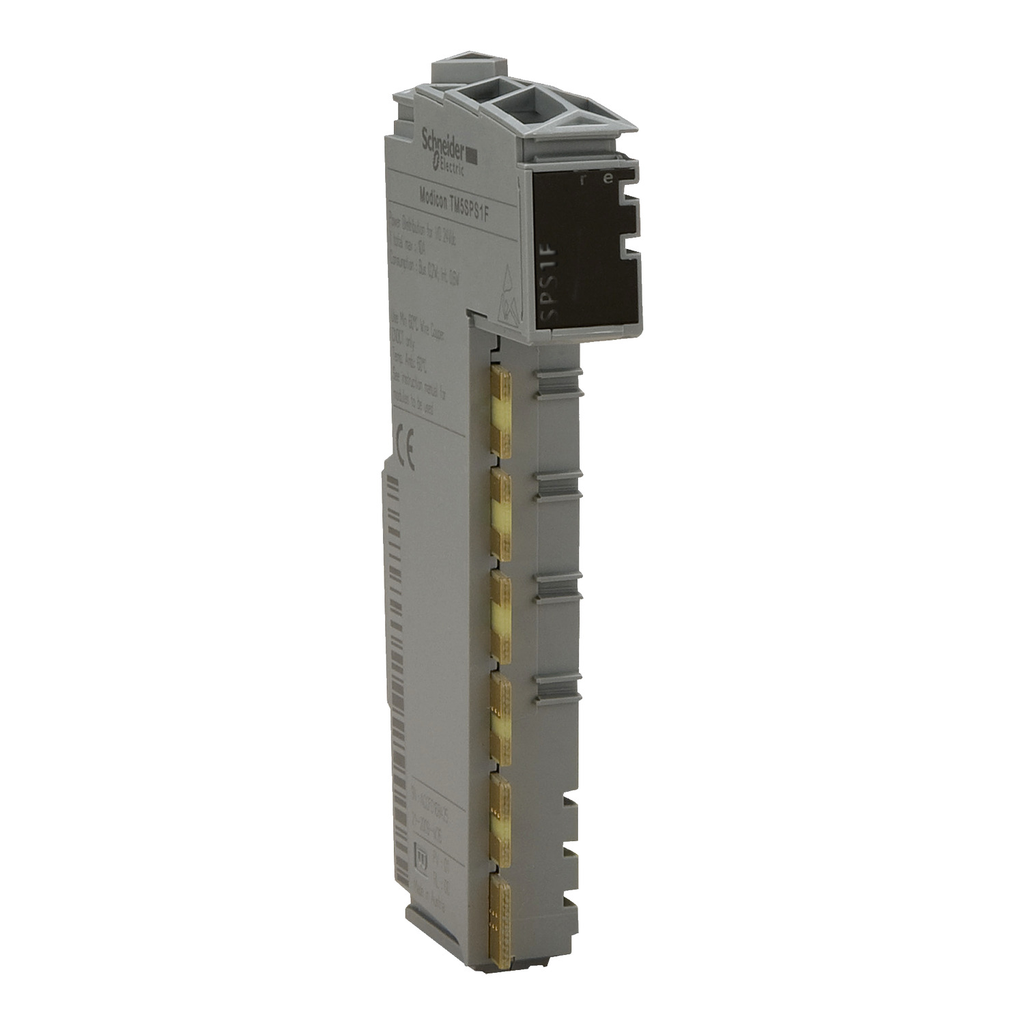

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a power distribution module with a rated supply voltage of 24V DC. It offers a maximum power dissipation of 0.8W and supplies a 10A current for I/O power segment. This product is part of a flexible and scalable I/O configuration for automation solutions. It has a 6.3A internal fuse. It is an IP20 rated product. The housing colour is grey. It weighs 0.03kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon M258 and Modicon LMC058 controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : C-tick, CSA, GOST-R, cULus
• Standards : IEC 61131-2, UL 508, CSA C22.2 No 142, CSA C22.2 No 213
• Complementary Attributes
• Maximum Power Dissipation In W : 1.02 W
• Important Information Attributes
• Persona Type Ids : EU, OM, OM8
• Persona Type Names : End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
• Shock Resistance : 15 gn 11 ms, 15 gn 11 ms
• Auxiliaries : TM5ACTCH100, TM5ACTLC100
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-25
• Device Type : PLC System - PLC Component
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 20 year(s)
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1511026EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• WD Status : 1 - GSC certified
• Function Option Id : ADVANCED
• Function Option : Advanced
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• Bearing Track Assembly Possible : true
• Front Installation Possible : false
• Network Type : DC
• Optical Interface Present : false
• Package Weight Lbs : 37.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : power distribution module with internal fuse
• Rack Assembly Possible : false
• Radio Standard Bluetooth : false
• Radio Standard GPRS : false
• Radio Standard GSM : false
• Radio Standard UMTS : false
• Range Of Product : Modicon TM5
• Returnability : No
• Supporting Protocol For As Interface Safety At Work : false
• Supporting Protocol For Can : false
• Supporting Protocol For Data Highway : false
• Supporting Protocol For Devicenet : false
• Supporting Protocol For Devicenet Safety : false
• Supporting Protocol For Ethercat : false
• Supporting Protocol For Ethernet Ip : false
• Supporting Protocol For Foundation Fieldbus : false
• Supporting Protocol For Interbus : false
• Supporting Protocol For Knx : false
• Supporting Protocol For Lon : false
• Supporting Protocol For Modbus : false
• Supporting Protocol For Other Bus Systems : false
• Supporting Protocol For Profibus : false
• Supporting Protocol For Profinet Cba : false
• Supporting Protocol For Profinet Io : false
• Supporting Protocol For Profisafe : false
• Supporting Protocol For Safetybus P : false
• Supporting Protocol For Sercos : false
• Supporting Protocol For Suconet : false
• Supporting Protocol For TCP IP : false
• Sustainable Packaging : No
• Wall Mounting Direct Mounting Possible : false
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Appendant Operation Agent Ex Ia : false
• Appendant Operation Agent Ex Ib : false
• Certified For Ul Hazardous Location Class I : false
• Certified For Ul Hazardous Location Class Ii : false
• Certified For Ul Hazardous Location Class Iii : false
• Certified For Ul Hazardous Location Division 1 : false
• Certified For Ul Hazardous Location Division 2 : false
• Certified For Ul Hazardous Location Group A Acetylene : false
• Certified For Ul Hazardous Location Group B Hydrogen : false
• Certified For Ul Hazardous Location Group C Ethylene : false
• Certified For Ul Hazardous Location Group D Propane : false
• Certified For Ul Hazardous Location Group E Metal Dusts : false
• Certified For Ul Hazardous Location Group F Carbonaceous Dust : false
• Certified For Ul Hazardous Location Group G Non Conductive Dust : false
• DC Supply Voltage : 24-24 V
• Radio Standard Wi Fi 802 11 : false
• Supporting Protocol For Interbus Safety : false
• Pep Code : ENVPEP1511026EN
• Bus Diagnosis Possible : false
• Performance Level According To En Iso 13849 1 : none
• Potential Separation Present : false
• System Accessory : false
• With Power Supply Module : false
• Product Kit Identifier : N
• Support B296 B318ing Protocol For Asi : false
• Environment Attributes Main
• Ambient Air Temperature For Operation : -10-55 °C without derating horizontal installation), -10-55 °C without derating horizontal installation), -10-55 °C without derating horizontal installation), 55-60 °C with derating factor horizontal installation), 55-60 °C with derating factor horizontal installation), 55-60 °C with derating factor horizontal installation), -10-50 °C vertical installation), -10-50 °C vertical installation)
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• Relative Humidity : 5-95 % without condensation, 5-95 % without condensation
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Storage : -25-70 °C
• Circularity Profile : ENVEOLI1511026EN
• Environmental Disclosure : ENVPEP1511026EN
• Operating Altitude : 0...6561.68 ft (0...2000 m)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1511026EN
• General Attributes
• Product Or Component Type : power distribution module with internal fuse
• Range Of Product : Modicon TM5
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
