Schneider Electric at Mayer

power distribution module, Modicon TM5, for CANopen interface and 24V DC IO

FIELDBUS INTERFACE 24VDC POWER

SQDTM5SPS3 TM5SPS3 3595864093024
223.33 / EA
http://schema.org/OutOfStock

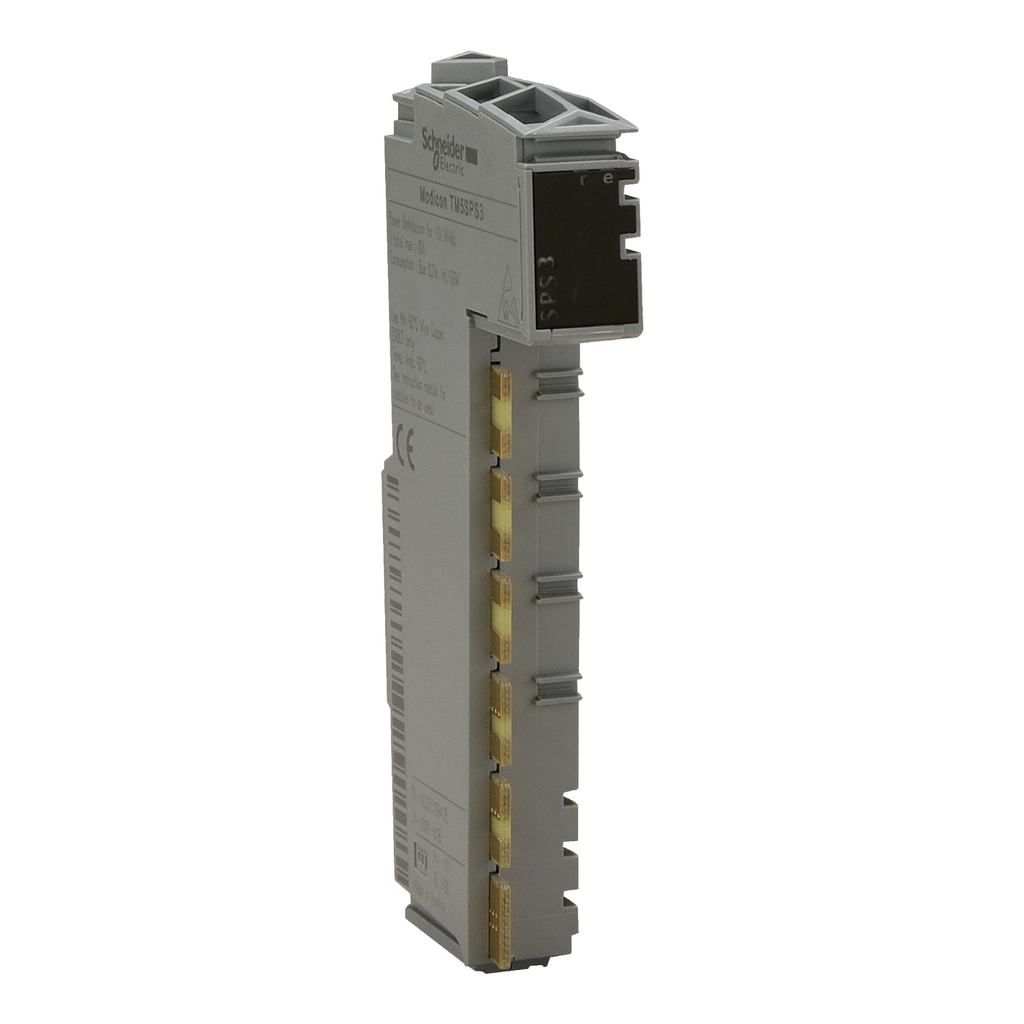

Mayer-DDS-power distribution module, Modicon TM5, for CANopen interface and 24V DC IO-1
  • Country of Origin: USA
  • Warranty Length: 18 mth
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a power distribution module with a rated supply voltage of 24V DC. It offers a maximum power dissipation of 1.91W with 10A external fuse short-circuit protection. This product is part of a flexible and scalable I/O configuration for automation solutions. It has a short-circuit protection with 10A external fuse. It is an IP20 rated product. The housing colour is grey. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with distributed safety I/O on Sercos bus Modicon M258 logic controllers, Modicon LMC058 and Modicon LMC078 motion controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
QTY
  • Product Description
  • Features
  • Specifications
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a power distribution module with a rated supply voltage of 24V DC. It offers a maximum power dissipation of 1.91W with 10A external fuse short-circuit protection. This product is part of a flexible and scalable I/O configuration for automation solutions. It has a short-circuit protection with 10A external fuse. It is an IP20 rated product. The housing colour is grey. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with distributed safety I/O on Sercos bus Modicon M258 logic controllers, Modicon LMC058 and Modicon LMC078 motion controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : GOST-R || C-tick || CSA || cULus
    • Resistance To Electromagnetic Fields : 1 V/m 2...2.7 GHz EN/IEC 61000-4-3 || 10 V/m 80...2000 MHz EN/IEC 61000-4-3
    • Standards : CSA C22.2 No 213 || CSA C22.2 No 142 || IEC 61131-2 || UL 508
    • Storage Altitude : 0-3000 m
    • Ambient Air Temperature For Operation : -10-55 °C without derating horizontal installation) || 55-60 °C with derating factor horizontal installation) || -10-50 °C vertical installation)
    • Vibration Resistance : 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
    • Shock Resistance : 15 gn 11 ms
    • Disturbance Radiated/Conducted : CISPR 11
    • Electromagnetic Compatibility : EN/IEC 61000-4-6
    • Surge Withstand : 0.5 kV differential mode EN/IEC 61000-4-5 || 1 kV common mode EN/IEC 61000-4-5
    • Ambient Air Temperature For Storage : -40-70 °C
    • Relative Humidity : 5-95 % without condensation
    • Resistance To Electrostatic Discharge : 4 kV on contact EN/IEC 61000-4-2 || 8 kV in air EN/IEC 61000-4-2
    • Resistance To Fast Transients : 1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 shielded cable) || 2 kV EN/IEC 61000-4-4 power lines)
    • Operating Altitude : 0...6561.68 ft (0...2000 m)
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : No
    • Environmental Disclosure : ENVPEP1511026EN
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : d442029a-1e06-4345-b16d-dc0ea46a51b1
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI1511026EN
    • Take-Back : No
    • Pvc Free : Yes
  • Complementary
    • [Us] Rated Supply Voltage : 24 V
    • Network Type : DC
    • Marking : CE
    • Power Supply Output Current : 750-750 mA TM5 power bus -10-55 °C || 500-500 mA TM5 power bus 55-60 °C || 10-10 A I/O power segment
    • Current Consumption : <= 25 mA 24 V DC
    • Maximum Power Dissipation In W : 1.91 W
    • Color : Gray
    • Short-Circuit Protection : 10 A external fuse
    • Range Compatibility : Modicon LMC078 || Modicon LMC058 || Modicon M258
    • Product Compatibility : logic controller || motion controller
  • Specifications
    • Country of Origin : United States
    • Range Of Product : Modicon TM5
    • Product Or Component Type : power distribution module
    • Product Specific Application : supply 24 V DC I/O modules and bus CANopen || supply 24 V DC I/O modules and bus Sercos III
