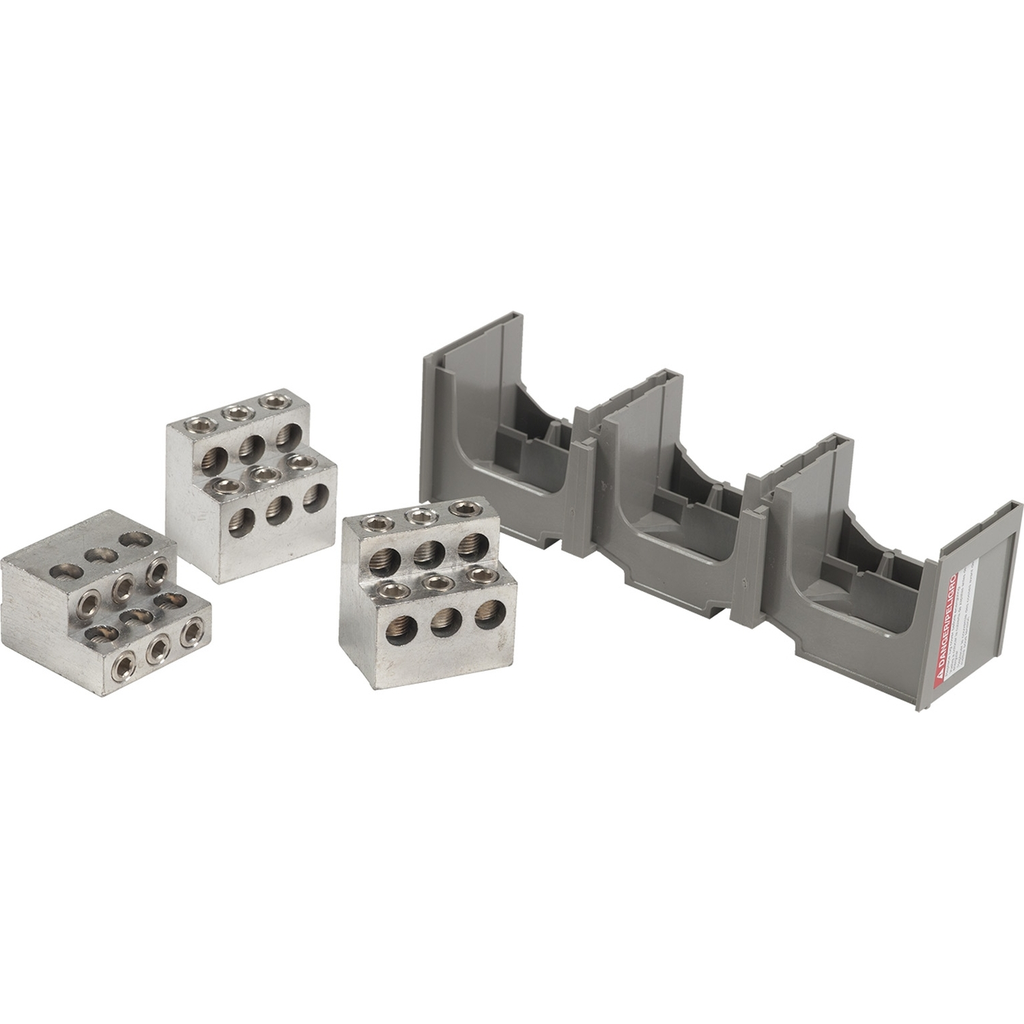

Circuit breaker accessory, PowerPacT M/P, connector, power distribution, 250A to 1200A, qty 3

CB POWER DISTRIBUTION CONNECTO

SQDPDC6P20 PDC6P20 785901854388
391.07 / EACH
http://schema.org/OutOfStock
  • Country of Origin: USA
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. Power distribution connectors can be used for multiple load wire connections on one circuit breaker. This power distribution connector is available for PowerPacT M and P circuit breakers. The connector accepts six 12 AWG to 2/0 AWG copper wires. Kit contents mounting hardware, lugs and special purpose label and instructions, quantity of three per kit. The connector complies with UL and CSA standards.
QTY
  • Product Description
  • Features
  • Specifications
PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. Power distribution connectors can be used for multiple load wire connections on one circuit breaker. This power distribution connector is available for PowerPacT M and P circuit breakers. The connector accepts six 12 AWG to 2/0 AWG copper wires. Kit contents mounting hardware, lugs and special purpose label and instructions, quantity of three per kit. The connector complies with UL and CSA standards.
  • Features
    • Power distribution connector for PowerPacT L circuit breakers 250 to 1200A rated
    • For use with load connections on one circuit breaker in place of standard distribution block to save space and time.
    • Use on load end of circuit breaker only
    • Terminal data is (6) 12–2/0 AWG only copper wire
    • Kit contens mounting hardware, lugs, special purpose label and instructions
    • Use in UL508 Industrial Control applications only and in UL1995/CSA C22.2 No. 236 heating and cooling equipment
  • Complementary Attributes
    • Line Rated Current : 250-1200 A
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Range Of Product : PowerPact M, PowerPact P
    • Tightening Torque : 4.5-4.5 N.m (8 AWG)5.6-5.6 N.m 35-70 mm² (12 AWG...10 AWG)4.5-4.5 N.m 10-10 mm², 4.0-4.0 N.m 2.5-6 mm² (6 AWG...4 AWG), 4.5-4.5 N.m 10-10 mm² (8 AWG)
    • Certificate Agency : UL, CSA
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-09-05
    • Return Indicator : Y
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 1909
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Energy Efficiency Optimized : False
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : power distribution connector
    • Quantity Per Set : set of 3
    • Returnability : Yes
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Nbr. Of Units In Pkg. : 1
    • Customs Code : 8536904000
    • Warranty In Months : 18
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Mercury Free : Yes
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • General Attributes
    • Range Of Product : PowerPact M, PowerPact P
    • Product Or Component Type : power distribution connector
  • Specifications
    • Country of Origin : United States
