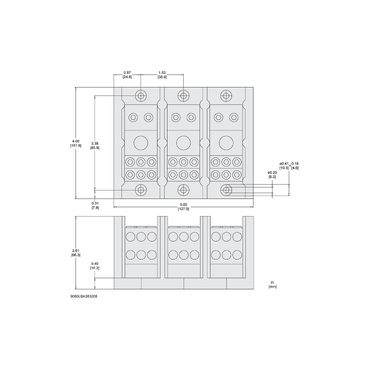

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has two lug openings on the line (main) side and six lug openings on the load (branch) side. The line side lugs are rated to accept one 14 to 2/0 copper or aluminum wire. Each load side lug is rated to accept one 14 to 4 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 350 amperes with copper wire and 270 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Wire Stripping Length : load: 0.44 in for top connection, load: 0.44 in for top connection, load: 0.44 in for top connection, load: 0.75 in for bottom connection, load: 0.75 in for bottom connection, load: 0.75 in for bottom connection, line: 1.06 in, line: 1.06 in
• Complementary Attributes
• Line Rated Current : 270-270 A aluminium, 270-270 A aluminium, 350-350 A copper, 350-350 A copper
• ICS Rated Service Breaking Capacity : 100 kA UL 508 A, 100 kA UL 508 A
• UE Rated Operational Voltage : 600 V AC/DC, 600 V AC/DC
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB, SI
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Electrical Connection : tin plated aluminium lugs, tin plated aluminium lugs
• Material : phenolic: block, phenolic: block
• Number Of Cables : line 2 , AWG 14...AWG 2/0, copper or aluminium, line 2 , AWG 14...AWG 2/0, copper or aluminium, line 2 , AWG 14...AWG 2/0, copper or aluminium, line 2 , AWG 14...AWG 2/0, copper or aluminium, load 6 , AWG 14...AWG 4, copper or aluminium, load 6 , AWG 14...AWG 4, copper or aluminium, load 6 , AWG 14...AWG 4, copper or aluminium, load 6 , AWG 14...AWG 4, copper or aluminium
• Number Of Terminals : 2 load, 2 load, 6 line, 6 line
• ICS Rated Service Breaking Capacity : 100 kA UL 508 A, 100 kA UL 508 A
• Connections Terminals : line lug 40 lbf.in AWG 8 copper or aluminium, line lug 40 lbf.in AWG 8 copper or aluminium, line lug 40 lbf.in AWG 8 copper or aluminium, line lug 40 lbf.in AWG 8 copper or aluminium, line lug 40 lbf.in AWG 8 copper or aluminium, line lug 120 lbf.in AWG 6...AWG 2/0 copper or aluminium, line lug 120 lbf.in AWG 6...AWG 2/0 copper or aluminium, line lug 120 lbf.in AWG 6...AWG 2/0 copper or aluminium, line lug 120 lbf.in AWG 6...AWG 2/0 copper or aluminium, line lug 120 lbf.in AWG 6...AWG 2/0 copper or aluminium, line lug 35 lbf.in AWG 14...AWG 10 copper or aluminium, line lug 35 lbf.in AWG 14...AWG 10 copper or aluminium, line lug 35 lbf.in AWG 14...AWG 10 copper or aluminium, line lug 35 lbf.in AWG 14...AWG 10 copper or aluminium, line lug 35 lbf.in AWG 14...AWG 10 copper or aluminium, load lug 35 lbf.in AWG 14...AWG 4 copper or aluminium, load lug 35 lbf.in AWG 14...AWG 4 copper or aluminium, load lug 35 lbf.in AWG 14...AWG 4 copper or aluminium, load lug 35 lbf.in AWG 14...AWG 4 copper or aluminium, load lug 35 lbf.in AWG 14...AWG 4 copper or aluminium
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-18
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 2 - SELECTED (Migration)
• Function Option Id : STANDARD
• Function Option : Standard
• Energy Efficiency Optimized : False
• Package Weight Lbs : 562.455 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Power Distribution Block
• Range Of Product : 9080LB
• Returnability : Yes
• Sustainable Packaging : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Compliant
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• General Attributes
• Product Or Component Type : Power Distribution Block
• Range Of Product : 9080LB
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
