Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This one pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one 6 to 350 kcmil copper or aluminum wire. The load side lug is rated to accept one 6 to 350 kcmil copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 310 amperes with copper wire and 250 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

• Connections Terminals
• line lug 275 lbf.in AWG 6...350 kcmil copper or aluminium
• load lug 275 lbf.in AWG 6...350 kcmil copper or aluminium

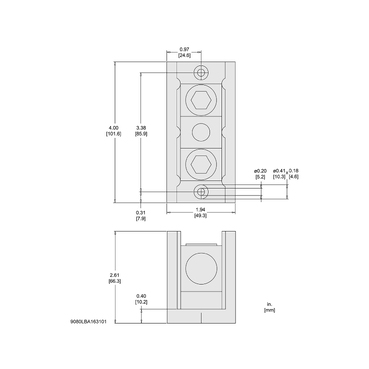

• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003065_3D-CAD&p_File_name=MCADPP0003065_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003065_3D-CAD&p_File_name=MCADPP0003065_2D-back.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003065_3D-CAD&p_File_name=MCADPP0003065_2D-back.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003065_3D-CAD&p_File_name=MCADPP0003065_2D-bottom.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003065_3D-CAD&p_File_name=MCADPP0003065_2D-bottom.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003065_3D-CAD&p_File_name=MCADPP0003065_2D-front.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003065_3D-CAD&p_File_name=MCADPP0003065_2D-front.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003065_3D-CAD&p_File_name=MCADPP0003065_2D-isometric.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003065_3D-CAD&p_File_name=MCADPP0003065_2D-isometric.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003065_3D-CAD&p_File_name=MCADPP0003065_2D-left.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003065_3D-CAD&p_File_name=MCADPP0003065_2D-left.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003065_3D-CAD&p_File_name=MCADPP0003065_2D-right.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003065_3D-CAD&p_File_name=MCADPP0003065_2D-right.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003065_3D-CAD&p_File_name=MCADPP0003065_2D-top.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003065_3D-CAD&p_File_name=MCADPP0003065_2D-top.dxf
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Electrical Connection
• tin plated aluminium lugs
• ICS Rated Service Breaking Capacity
• 100 kA UL 508 A
• Material
• phenolic: block
• Number Of Cables
• line 1 , AWG 6...350 kcmil, copper or aluminium
• load 1 , AWG 6...350 kcmil, copper or aluminium
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Line Rated Current
• 310-310 A copper
• 250-250 A aluminium
• Persona Type Ids
• LC
• OM
• OM8
• PB
• Number Of Terminals
• 1 line
• 1 load
• Wire Stripping Length
• line: 1.06 in
• load: 1.06 in
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• UE Rated Operational Voltage
• 600 V AC/DC

• Important Information Attributes
• B2B Bullet Point 1 : Power Distribution Blocks is perfect for splicing or distributing wires within control panels
• B2B Bullet Point 2 : Has numerous configurations for power distribution and also allows customer save on panel space
• B2B Bullet Point 3 : Ideal for distributing power to multiple loads
• B2B Bullet Point 4 : UL component recognized and CSA certified
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-18
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1909
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• China ROHS Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : A - SELECTED - PCE ONLY (Migration)
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Energy Efficiency Optimized : False
• Number Of Poles : 1
• Package Weight Lbs : 276.691 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : Power Distribution Block
• Range Of Product : 9080LB
• Returnability : Yes
• Sustainable Packaging : No
• Relationship Type : Compatible relationship
• Accessories : 9080LB31
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : Power Distribution Block
• Range Of Product : 9080LB
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=372927&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• EU ROHS Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United States
