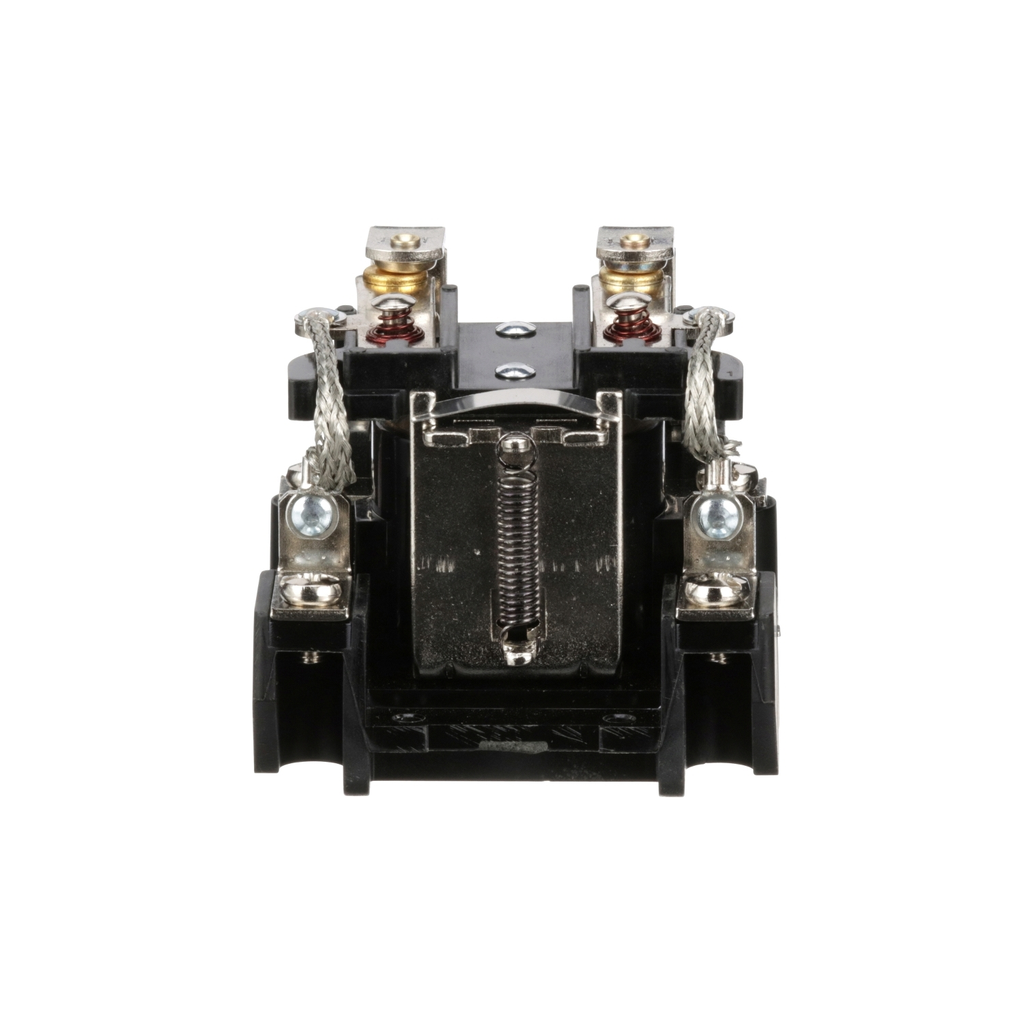

8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a DPDT contact configuration with two normally open and two normally closed contact. A variety of coil voltages are available. This relay has a 120 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : UL listed file E78351 CCN NLDX || CSA || CE
• Ambient Air Temperature For Operation : -22-122 °F
• Height : 3.12 in
• Width : 2.5 in
• Depth : 2.31 in
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Packaging Made With Recycled Cardboard : No
• Environmental Disclosure : ENVPEP1705008EN
• Packaging Without Single Use Plastic : No
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• China Rohs Regulation : X
• Circularity Profile : N/A
• Take-Back : No
• Complementary
• Connections - Terminals : screw clamp terminal
• Mounting Support : panel mounting
• Hold-In Power Consumption In Va : 10-10 VA
• Phase : 1 phase
• Catalog Class : 8501
• Awg Gauge : AWG 10 copper
• Tightening Torque : 11-15 lbf.in
• Specifications
• Country of Origin : China
• Width : 2.5 in
• Height : 3.12 in
• [Uc] Control Circuit Voltage : 120 V AC 50/60 Hz
• Range Of Product : Power Relay 8501C
• Product Or Component Type : power relay
• Maximum Switching Voltage : 600 V AC
• Rated Power In Hp : 2.0 hp
• Contacts Type And Composition : 2 NO/2 NC
• Line Rated Current : 30 A
• Switch Function : DPDT
• Device Application : suited for controlling small single phase motors and other light loads
• Device Short Name : type C
