SQUARE D

Power Distribution Block, 3 pole, 1 line, 6 load, 175 A 600 V CU / 135 A 600 V AL

Power Distribution Block, 3 pole, 1 line, 6 load, 175 A 600 V CU / 135 A 600 V AL

SQD9080LBA362106 9080LBA362106 785901132615
127.70 / EACH
  • Depth: 2.06 in, 52.32 mm
  • Height: 2.9 in, 73.66 mm
  • Number of Poles: 3
  • Strip Length: 0.38 in, 9.65 mm
  • Weight: 0.35 kg, 0.77 lbs
  • Width: 136.65 mm, 5.38 in
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and six lug openings on the load (branch) side. The line side lug is rated to accept one #14 to 2/0 copper or aluminum wires. Each load side lug is rated to accept one #14 to #4 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 175 amperes with copper wire and 135 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact thermoplastic. These Linergy power distribution blocks are UL component recognized and CSA certified.
  • Product Description
  • Additional Information
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and six lug openings on the load (branch) side. The line side lug is rated to accept one #14 to 2/0 copper or aluminum wires. Each load side lug is rated to accept one #14 to #4 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 175 amperes with copper wire and 135 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact thermoplastic. These Linergy power distribution blocks are UL component recognized and CSA certified.
  • Features
    • Open Power Distribution Blocks
    • Available in a wide variety of sizes
    • These open power distribution blocks are available in one, two, and three pole versions.
    • They are available with either aluminum or copper lugs.
    • Many blocks have been tested to achieve SCCR up to 100 kA.
    • They are UL component recognized, CSA approved and RoHS compliant
    • A selection of covers completes this family
  • Specifications
    • Main
      • Range : 9080LB
      • Product : Power Distribution Block
      • Current Rating : 175 A copper || 135 A aluminium
      • Short Circuit Current Rating : 65 kA
    • Complementary
      • Voltage Rating : 600 V AC/DC
      • Mounting Type : Surface mount
      • Number Of Poles : 3
      • Terminals Per Pole : 1 line || 6 load
      • Wire Size : Line 2, AWG 14...AWG 2/0, copper or aluminium || Load 6, AWG 14...AWG 4, copper or aluminium
      • Electrical Connection : Tin plated aluminium lugs
      • Sccr : 100 kA UL 508 A
      • Ambient Air Temp For Op : -40…302 °F (-40…150 °C)
      • Block Material : Phenolic block
      • Terminal Tightening Torque : Line lug 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium || Line lug 120 lbf.in (13.56 N.m) AWG 6...AWG 2/0 copper or aluminium || Line lug 35 lbf.in (3.95 N.m) AWG 14...AWG 10 copper or aluminium || Load lug 35 lbf.in (3.95 N.m) AWG 14...AWG 4 copper or aluminium
      • Wire Stripping Length : Load 0.38 in (9.65 mm) top || Load 0.75 in (19.05 mm) bottom || Line 0.69 in (17.53 mm)

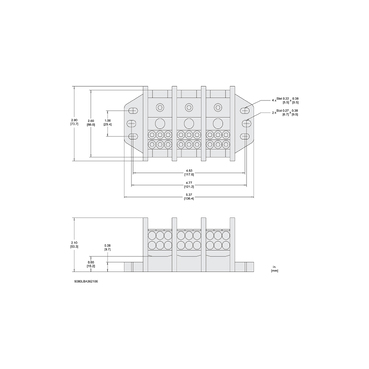

      • Height : 2.9 in (73.66 mm)
      • Width : 5.38 in (136.65 mm)
      • Depth : 2.06 in (52.32 mm)
      • Product Weight : 0.77 lb(US) (0.35 kg)
    • Environment
      • Certifications : UL recognized E60616 CCN XCFR2 || CSA file 70361 class 6228 01 || CE
    • Ordering And Shipping Details
      • Category : 21711 - 9080 LB
      • Discount Schedule : CP1
      • GTIN : 00785901132615
      • Nbr. Of Units In Pkg. : 1
      • Returnability : Yes
      • Country Of Origin : US
    • Offer Sustainability
      • REACh Free Of SVHC : Yes
      • EU RoHs Directive : Compliant
      • Toxic Heavy Metal Free : Yes
      • Mercury Free : Yes
    • Contractual Warranty
      • Warranty : 18 months
