SQUARE D

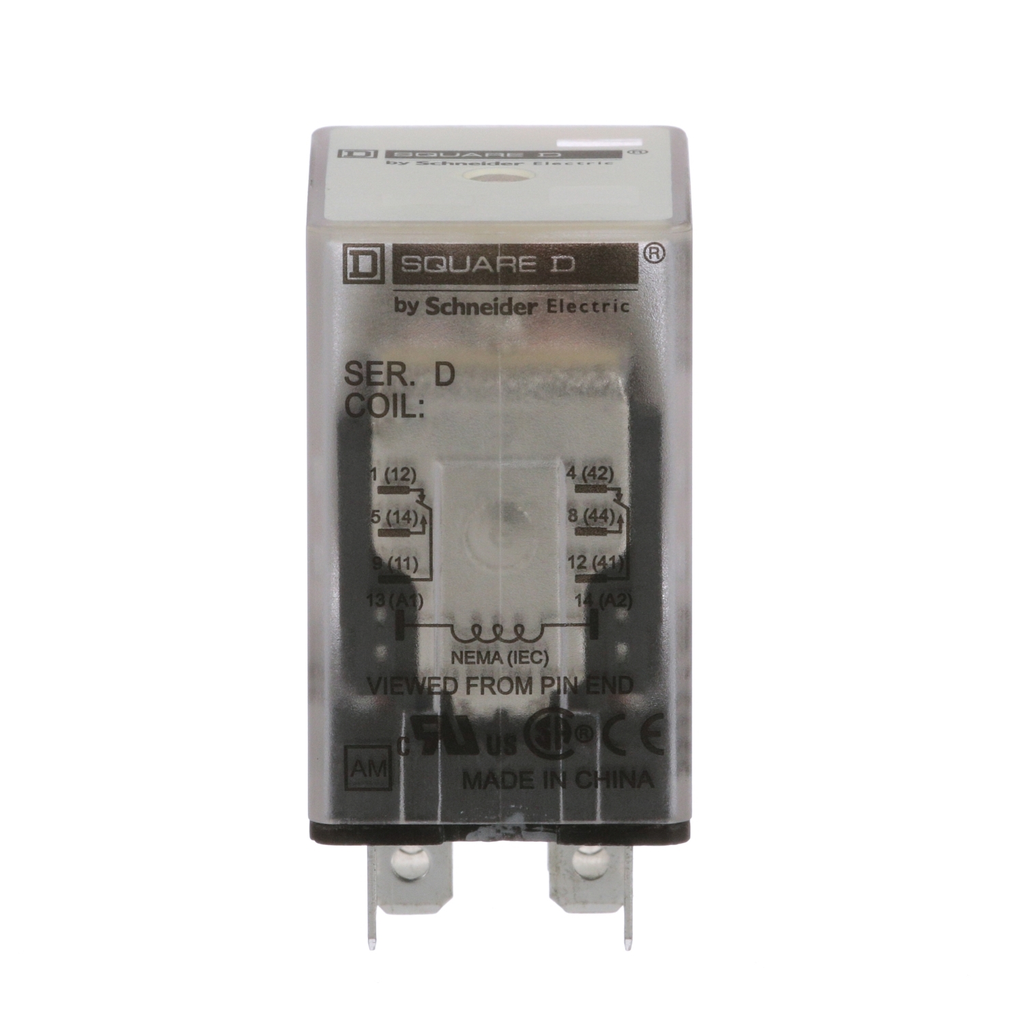

Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 24 VDC coil

RELAY 240VAC 10AMP TYPE R +OPT

SQD8501RSD42V53 8501RSD42V53 785901131366
44.56 / EACH
  • Certifications: CE, CSA, UL Listed, UL Recognized
  • Country of Origin: China
  • Depth: 1.65 in, 41.8 mm
  • Height: 1.07 in, 27.3 mm
  • Mounting Type: Socket
  • Warranty Length: 18 mth
  • Width: 0.83 in, 21 mm
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR42 or 8501NR42B relay socket. Relay is available with DPDT contact arrangements. It has two normally open and two normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
  • Product Description
  • Specifications
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR42 or 8501NR42B relay socket. Relay is available with DPDT contact arrangements. It has two normally open and two normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
  • Environment
    • Product Certifications : UL Listed || UL Recognized || CSA || CE
    • Ambient Temperature Range - Operational : -40…131 °F (-40…55 °C)
  • Main
    • Product Range : 8501R
    • Relay Type : Standard
    • Product Type : Miniature Relay
  • Complementary
    • Depth : 1.65 in (41.8 mm)
    • [Uc] Control Circuit Voltage : 24 V DC
    • For Use With : 8501NR42
    • Manual Operator : Without test button
    • Pilot Light : No indicator
    • Maximum Switching Voltage : 300 V AC || 30 V DC
    • Height : 1.07 in (27.3 mm)
    • Operating Time : 20 ms - pick-up || 20 ms - drop-out
    • Mounting Type : Socket
    • Breaking Capacity : 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 15 A 120 V AC resistive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 15 A 28 V DC resistive control circuit UL 508
    • Width : 0.83 in (21 mm)
    • Shape Of Pins : Spade
    • Contact Material : Silver alloy, gold flashed
    • Horsepower Rating : 0.5 120 V AC || 1 277 V AC
    • Contact Composition : DPDT
  • Offer Sustainability
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • REACh Free Of SVHC : Yes
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Green Premium Status : Green Premium product
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Ordering And Shipping Details
    • Country Of Origin : CN
    • Returnability : Yes
    • GTIN : 00785901131366
    • Discount Schedule : CP2
    • Category : 21143 - 8501 R
  • Contractual Warranty
    • Warranty : 18 months
