Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 5 blade, SPDT, 1 NO, 1 NC, 24 VDC coil

Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 5 blade, SPDT, 1 NO, 1 NC, 24 VDC coil

SQD8501RSD41V53 8501RSD41V53 785901137054
40.09 / EACH
  • Certifications: CE, CSA, UL Listed, UL Recognized
  • Country of Origin: China
  • Depth: 1.65 in, 41.8 mm
  • Height: 1.07 in, 27.3 mm
  • Mounting Type: Socket
  • Warranty Length: 18 mth
  • Width: 0.55 in, 14 mm

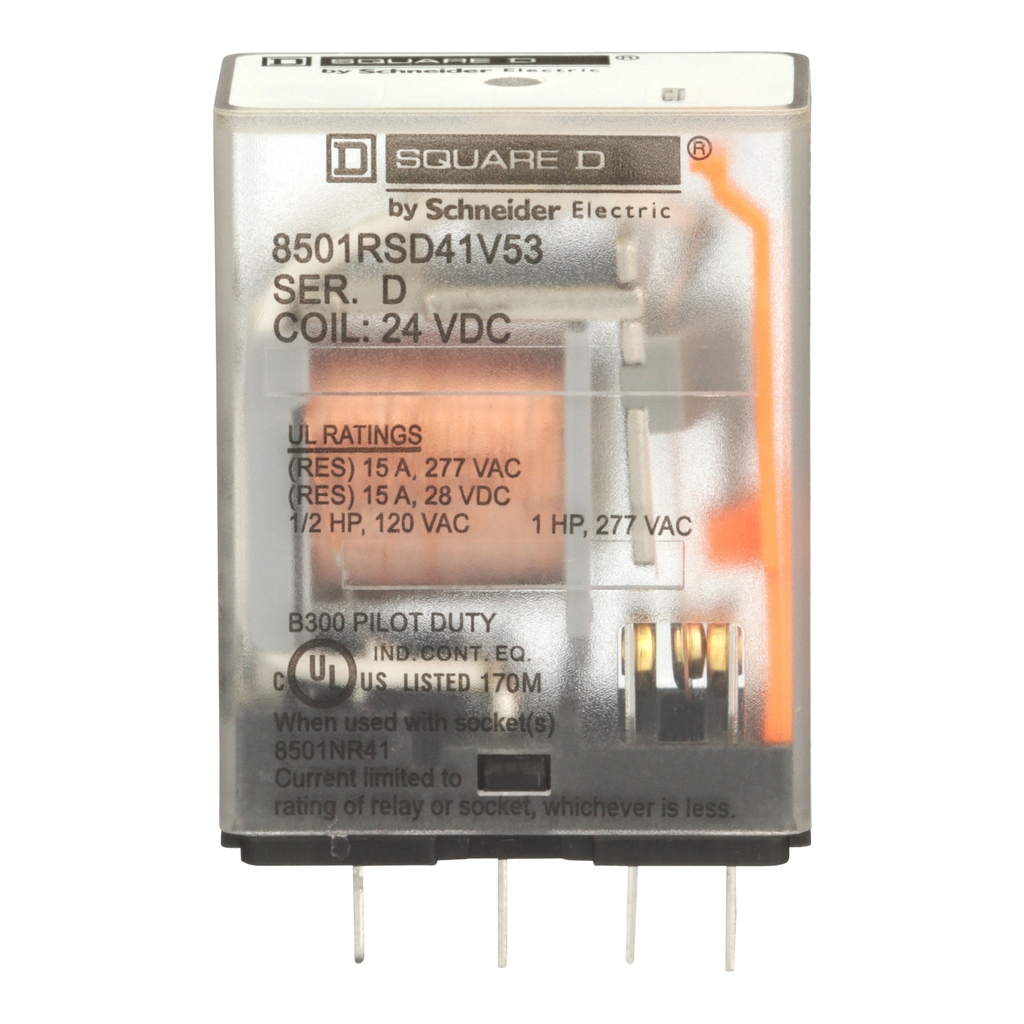

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR41 or 8501NR41B relay socket. Relay is available with SPDT contact arrangements. It has one normally open and one normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
  • Product Description
  • Specifications
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR41 or 8501NR41B relay socket. Relay is available with SPDT contact arrangements. It has one normally open and one normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
  • Main
    • Product Range : 8501R
    • Relay Type : Standard
    • Product Type : Miniature Relay
  • Complementary
    • [Uc] Control Circuit Voltage : 24 V DC
    • Manual Operator : Without test button
    • Contact Composition : SPDT
    • Mounting Type : Socket
    • For Use With : 8501NR41
    • Breaking Capacity : 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 15 A 120 V AC resistive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 15 A 28 V DC resistive control circuit UL 508
    • Maximum Switching Voltage : 300 V AC || 30 V DC
    • Horsepower Rating : 0.5 120 V AC || 1 277 V AC
    • Operating Time : 20 ms - pick-up || 20 ms - drop-out
    • Height : 1.07 in (27.3 mm)
    • Pilot Light : No indicator
    • Shape Of Pins : Spade
    • Contact Material : Silver alloy, gold flashed
    • Width : 0.55 in (14 mm)
    • Depth : 1.65 in (41.8 mm)
  • Offer Sustainability
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • REACh Free Of SVHC : Yes
    • Green Premium Status : Green Premium product
  • Ordering And Shipping Details
    • Returnability : Yes
    • Category : 21143 - 8501 R
    • GTIN : 00785901137054
    • Nbr. Of Units In Pkg. : 1
    • Discount Schedule : CP2
    • Country Of Origin : CN
  • Contractual Warranty
    • Warranty : 18 months
  • Environment
    • Ambient Temperature Range - Operational : -40…131 °F (-40…55 °C)
    • Product Certifications : UL Listed || UL Recognized || CSA || CE
