Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 5 blade, SPDT, 1 NO, 1 NC, 120 VAC coil

Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 5 blade, SPDT, 1 NO, 1 NC, 120 VAC coil

SQD8501RS41V20 8501RS41V20 785901137030
40.09 / EACH
  • Certifications: CE, CSA, UL Listed, UL Recognized
  • Country of Origin: China
  • Depth: 1.65 in, 41.8 mm
  • Height: 1.07 in, 27.3 mm
  • Mounting Type: Socket
  • Warranty Length: 18 mth
  • Width: 0.55 in, 14 mm

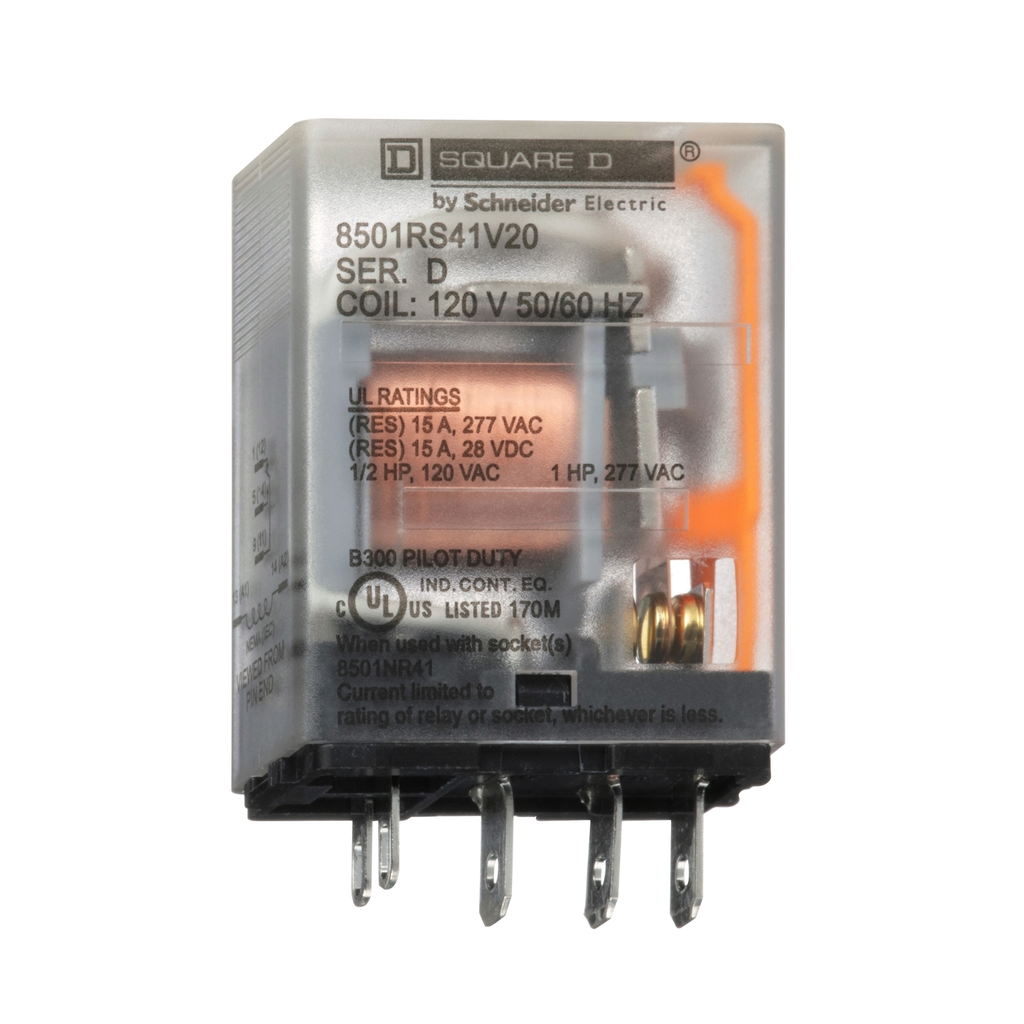

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR41 or 8501NR41B relay socket. Relay is available with SPDT contact arrangements. It has one normally open and one normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
  • Product Description
  • Features
  • Specifications
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR41 or 8501NR41B relay socket. Relay is available with SPDT contact arrangements. It has one normally open and one normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
  • UL Component Recognized and CSA Certified
  • Designed for multiple switching applications
  • Available with SPDT, DPDT, 3PDT or 4PDT contact arrangements
  • An optional green LED pilot light is available
  • Blade termination for sockets
  • Miniature Plug-In Relays
  • Wide variety of coil voltages available
  • Environment
    • Ambient Temperature Range - Operational : -40…131 °F (-40…55 °C)
    • Product Certifications : UL Listed || UL Recognized || CSA || CE
  • Offer Sustainability
    • Toxic Heavy Metal Free : Yes
    • REACh Free Of SVHC : Yes
    • Green Premium Status : Green Premium product
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Main
    • Product Range : 8501R
    • Relay Type : Standard
    • Product Type : Miniature Relay
  • Ordering And Shipping Details
    • Category : 21143 - 8501 R
    • GTIN : 00785901137030
    • Country Of Origin : CN
    • Discount Schedule : CP2
    • Returnability : Yes
  • Complementary
    • Maximum Switching Voltage : 300 V AC || 30 V DC
    • Operating Time : 20 ms - pick-up || 20 ms - drop-out
    • Mounting Type : Socket
    • Shape Of Pins : Spade
    • Contact Composition : SPDT
    • Height : 1.07 in (27.3 mm)
    • Width : 0.55 in (14 mm)
    • Pilot Light : No indicator
    • For Use With : 8501NR41
    • Horsepower Rating : 0.5 120 V AC || 1 277 V AC
    • [Uc] Control Circuit Voltage : 120 V AC
    • Breaking Capacity : 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 15 A 120 V AC resistive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 15 A 28 V DC resistive control circuit UL 508
    • Depth : 1.65 in (41.8 mm)
    • Manual Operator : Without test button
    • Contact Material : Silver alloy, gold flashed
  • Contractual Warranty
    • Warranty : 18 months
