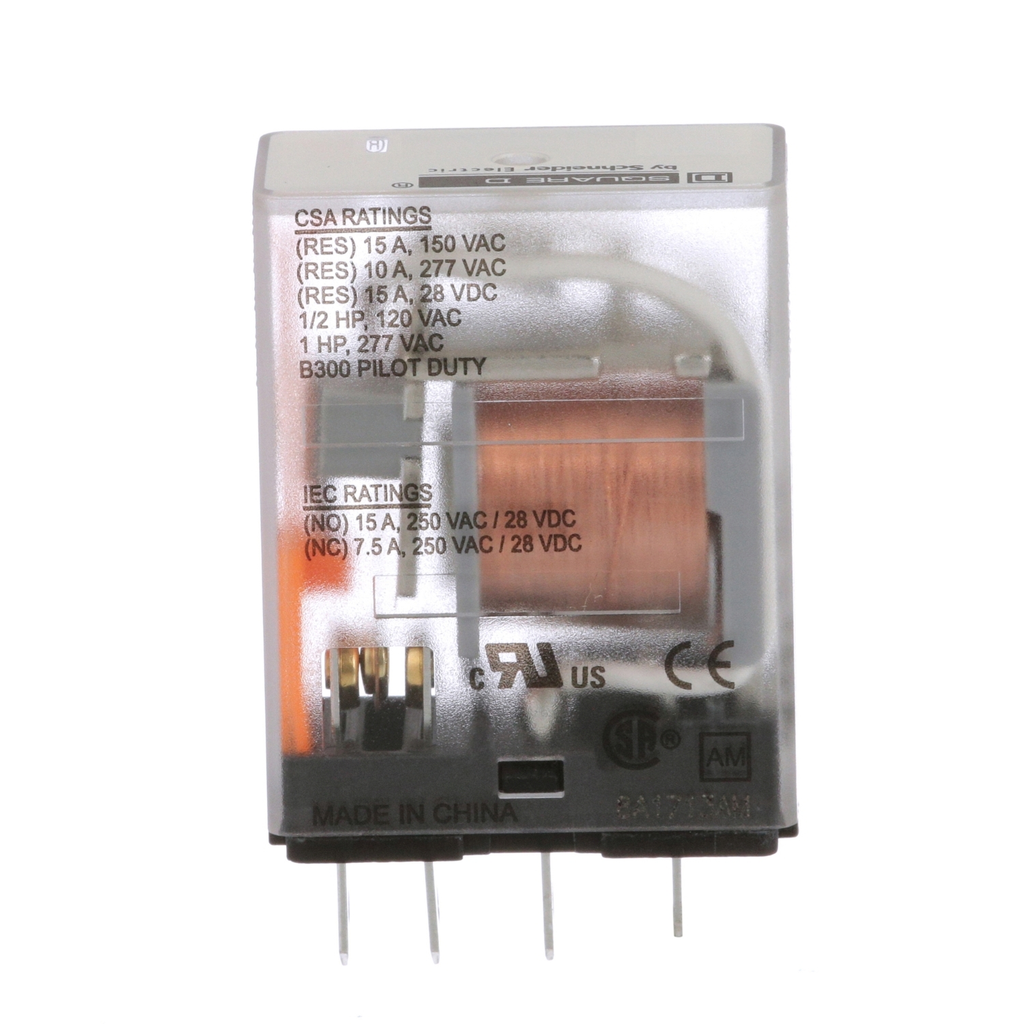

Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 5 blade, SPDT, 1 NO, 1 NC, 12 VDC coil

Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 5 blade, SPDT, 1 NO, 1 NC, 12 VDC coil

SQD8501RSD41V51 8501RSD41V51 785901137047
40.09 / EACH
  • Certifications: CE, CSA, UL Listed, UL Recognized
  • Country of Origin: China
  • Depth: 1.65 in, 41.8 mm
  • Height: 1.07 in, 27.3 mm
  • Mounting Type: Socket
  • Warranty Length: 18 mth
  • Width: 0.55 in, 14 mm
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR41 or 8501NR41B relay socket. Relay is available with SPDT contact arrangements. It has one normally open and one normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 12 VDC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
  • Product Description
  • Specifications
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR41 or 8501NR41B relay socket. Relay is available with SPDT contact arrangements. It has one normally open and one normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 12 VDC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
  • Offer Sustainability
    • Mercury Free : Yes
    • REACh Free Of SVHC : Yes
    • Toxic Heavy Metal Free : Yes
    • Green Premium Status : Green Premium product
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Contractual Warranty
    • Warranty : 18 months
  • Main
    • Product Range : 8501R
    • Relay Type : Standard
    • Product Type : Miniature Relay
  • Ordering And Shipping Details
    • Category : 21143 - 8501 R
    • Returnability : Yes
    • Discount Schedule : CP2
    • Nbr. Of Units In Pkg. : 1
    • Country Of Origin : CN
    • GTIN : 00785901137047
  • Complementary
    • Operating Time : 20 ms - pick-up || 20 ms - drop-out
    • Width : 0.55 in (14 mm)
    • Horsepower Rating : 0.5 120 V AC || 1 277 V AC
    • Pilot Light : No indicator
    • Shape Of Pins : Spade
    • For Use With : 8501NR41
    • Mounting Type : Socket
    • Contact Material : Silver alloy, gold flashed
    • Maximum Switching Voltage : 300 V AC || 30 V DC
    • [Uc] Control Circuit Voltage : 12 V DC
    • Height : 1.07 in (27.3 mm)
    • Manual Operator : Without test button
    • Breaking Capacity : 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 15 A 120 V AC resistive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 15 A 28 V DC resistive control circuit UL 508
    • Depth : 1.65 in (41.8 mm)
    • Contact Composition : SPDT
  • Environment
    • Product Certifications : UL Listed || UL Recognized || CSA || CE
    • Ambient Temperature Range - Operational : -40…131 °F (-40…55 °C)
