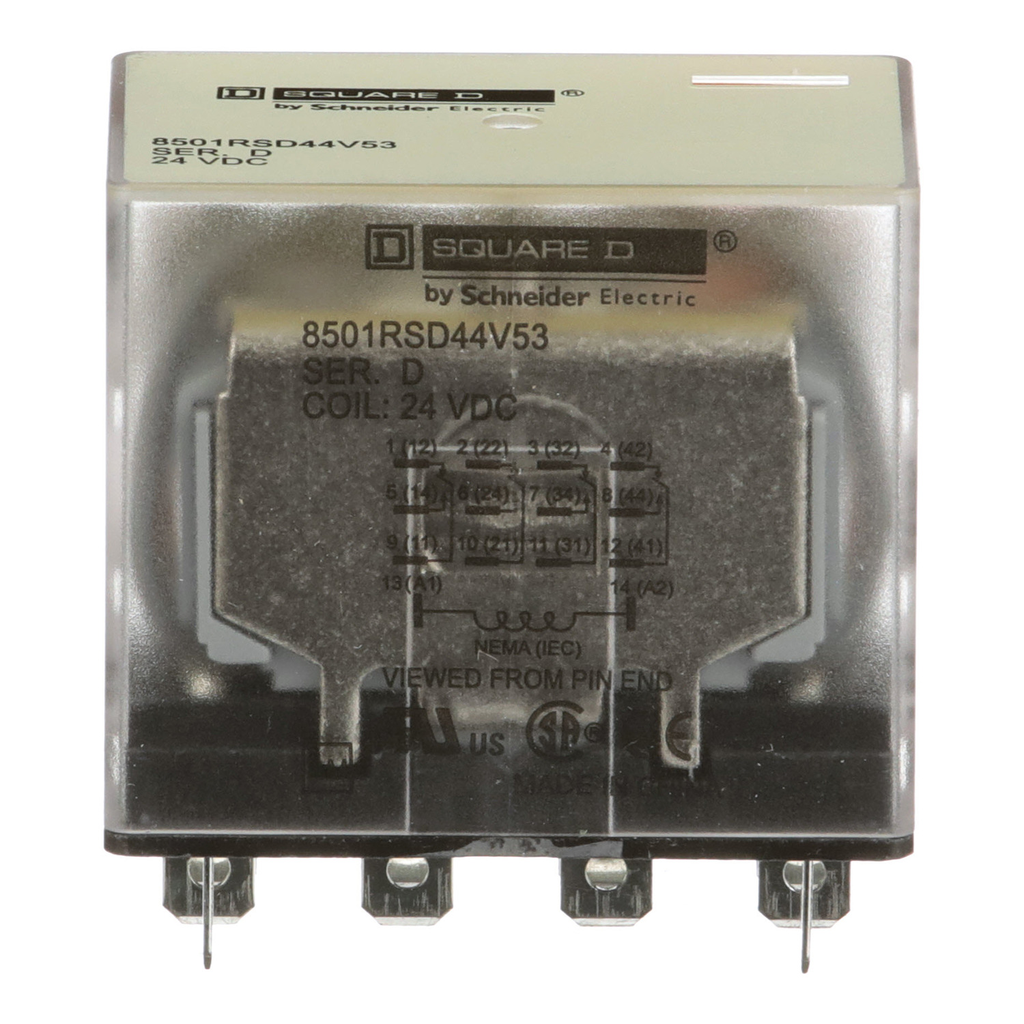

Relay, Type R, plug in, miniature, 1HP at 277VAC, 15A resistive at 120VAC, 14 blade, 4PDT, 4NO, 4NC, 24VDC coil

RELAY 250VAC 10AMP TYPE R +OPT

SQD8501RSD44V53 8501RSD44V53 785901137238
76.34 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Relay, Type R, plug in, miniature, 1HP at 277VAC, 15A resistive at 120VAC, 14 blade, 4PDT, 4NO, 4NC, 24VDC coil-2
  • Country of Origin: China
  • Warranty Length: 18 mth
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR34 or 8501NR34B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC and at 28VDC, a 10 ampere resistive rating at 277 VAC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay does not have a green LED indicator. Relay is 1.07 inches tall, 1.60 inches wide and 1.65 inches deep. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR34 or 8501NR34B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC and at 28VDC, a 10 ampere resistive rating at 277 VAC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay does not have a green LED indicator. Relay is 1.07 inches tall, 1.60 inches wide and 1.65 inches deep. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
  • Rated Power In HP
    • 0.5 120 V AC
    • 1 277 V AC
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Operating Time
    • 20 ms - pick-up
    • 20 ms - drop-out
  • Maximum Switching Voltage
    • 300 V AC
    • 30 V DC
  • UC Control Circuit Voltage
    • 24 V DC
  • Accessories
    • 8501NR34
    • 8501NH42
    • 8501NR34B
    • 9080MH320
    • 9080MH339
    • 9080MH220
    • 9080MH239
    • 9080MHA10
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Rated Breaking Capacity
    • 3 A 120 V AC inductive control circuit UL 508
    • 1.5 A 240 V AC inductive control circuit UL 508
    • 10 A 120 V AC resistive control circuit UL 508
    • 6.67 A 277 V AC resistive control circuit UL 508
    • 10 A 28 V DC resistive control circuit UL 508
  • Important Information Attributes
    • B2B Bullet Point 1 : They are ideal for applications where long life, high reliability and ease of maintenance are important
    • B2B Bullet Point 2 : This relay has contacts with a 10 ampere resistive current rating at 600 VAC
    • B2B Bullet Point 3 : The contacts also have an A600 inductive contact rating
    • B2B Bullet Point 4 : This relay is supplied with eight 8501XC1 contact cartridges
    • B2B Bullet Point 5 : The contact cartridges are installed as normally open contacts
    • B2B Bullet Point 6 : The machine tool relays have straight through wiring
    • B2B Bullet Point 7 : This makes wiring easier
    • B2B Bullet Point 8 : The eight plug in contact cartridges in this relay make contact conversion or replacement very easy
    • B2B Bullet Point 9 : Contact conversion or replacement can be done without removing any wiring
    • B2B Bullet Point 10 : Contacts are supplied with pressure wire connectors so wires can be easily terminated
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Legacy WEEE Scope : Out
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI1310013EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Local Signalling : no indicator
    • Package Weight Lbs : 68.492 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Miniature Relay
    • Range Of Product : 8501R
    • Returnability : Yes
    • Shape Of Pin : spade
    • Sustainable Packaging : No
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP1310013EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : Miniature Relay
    • Range Of Product : 8501R
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=367783&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Circularity Profile : ENVEOLI1310013EN
    • Environmental Disclosure : ENVPEP1310013EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1310013EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : China
