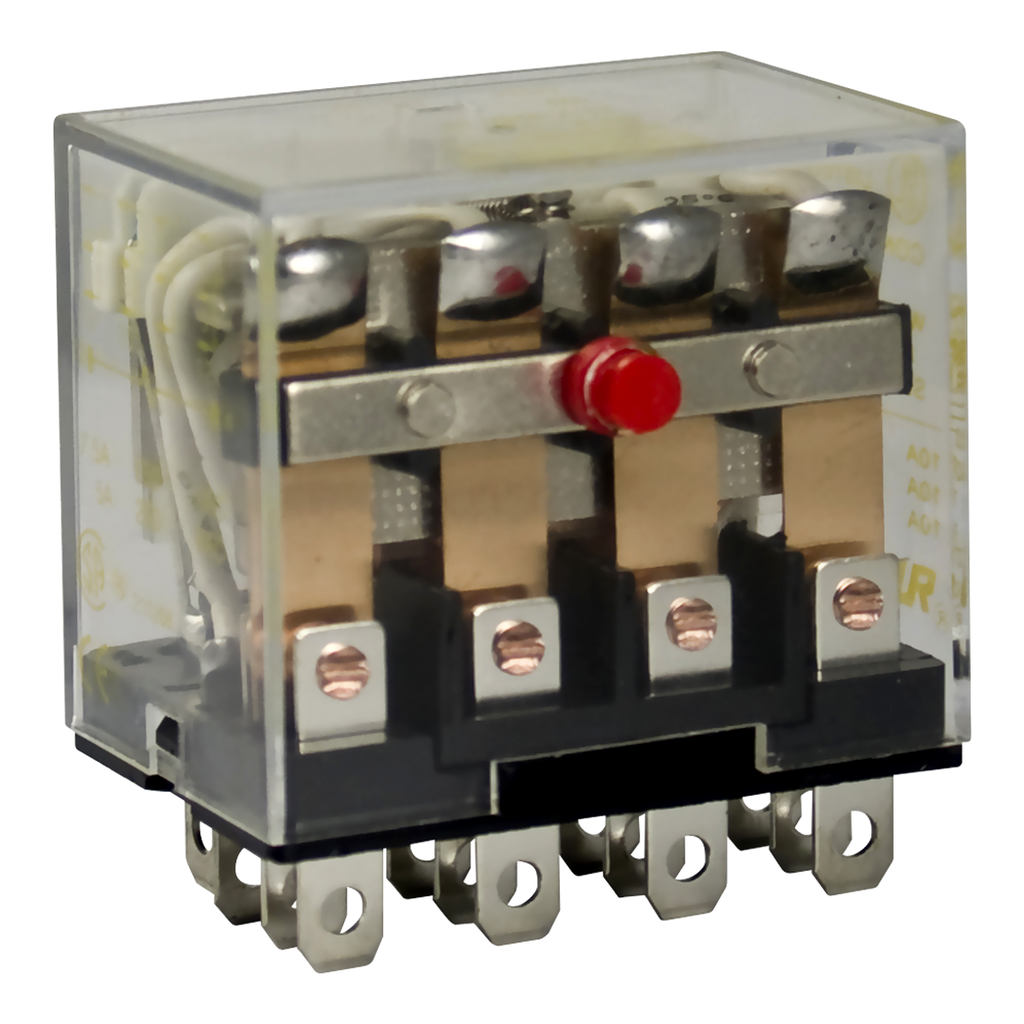

Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 14 blade, 4PDT, 4 NO, 4 NC, 24 VAC coil

Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 14 blade, 4PDT, 4 NO, 4 NC, 24 VAC coil

SQD8501RS44V14 8501RS44V14 785901137160
60.00 / EACH
  • Certifications: CE, CSA, UL Listed, UL Recognized
  • Country of Origin: China
  • Depth: 1.65 in, 41.8 mm
  • Height: 1.07 in, 27.3 mm
  • Mounting Type: Socket
  • Warranty Length: 18 mth
  • Width: 1.60 in, 40.6 mm
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR34 or 8501NR34B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contacts. The contacts have a 15 ampere resistive rating at 277 VAC and at 28VDC, a 10 ampere resistive rating at 277 VAC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VAC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
  • Product Description
  • Specifications
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR34 or 8501NR34B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contacts. The contacts have a 15 ampere resistive rating at 277 VAC and at 28VDC, a 10 ampere resistive rating at 277 VAC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VAC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
  • Environment
    • Ambient Temperature Range - Operational : -40…131 °F (-40…55 °C)
    • Product Certifications : UL Listed || UL Recognized || CSA || CE
  • Ordering And Shipping Details
    • Returnability : Yes
    • GTIN : 00785901137160
    • Category : 21143 - 8501 R
    • Country Of Origin : CN
    • Discount Schedule : CP2
  • Main
    • Relay Type : Standard
    • Product Range : 8501R
    • Product Type : Miniature Relay
  • Offer Sustainability
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Toxic Heavy Metal Free : Yes
    • REACh Free Of SVHC : Yes
    • Green Premium Status : Green Premium product
    • Mercury Free : Yes
  • Contractual Warranty
    • Warranty : 18 months
  • Complementary
    • Height : 1.07 in (27.3 mm)
    • Operating Time : 20 ms - pick-up || 20 ms - drop-out
    • Contact Material : Silver alloy, gold flashed
    • Horsepower Rating : 0.5 120 V AC || 1 277 V AC
    • For Use With : 8501NR34
    • Contact Composition : 4PDT
    • Manual Operator : Without test button
    • Mounting Type : Socket
    • Pilot Light : No indicator
    • Shape Of Pins : Spade
    • Breaking Capacity : 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 10 A 120 V AC resistive control circuit UL 508 || 6.67 A 277 V AC resistive control circuit UL 508 || 10 A 28 V DC resistive control circuit UL 508
    • Depth : 1.65 in (41.8 mm)
    • [Uc] Control Circuit Voltage : 24 V AC
    • Maximum Switching Voltage : 300 V AC || 30 V DC
    • Width : 1.60 in (40.6 mm)
