Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 11 blade, 3PDT, 3 NO, 3 NC, 24 VDC coil

RELAY250VAC15AMPTYPER+OPTIONS

SQD8501RSD43P14V53 8501RSD43P14V53 785901856108
53.85 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Plug in relay, Type R, miniature, 1 HP at 277 VAC, 15A resistive at 120 VAC, 11 blade, 3PDT, 3 NO, 3 NC, 24 VDC coil-2
  • Certifications: CE, CSA, UL Listed, UL Recognized
  • Contact Material: Silver Alloy, Gold Flashed
  • Depth: 41.8 mm
  • Height: 27.3 mm
  • Warranty Length: 18 mth
  • Width: 30.6 mm

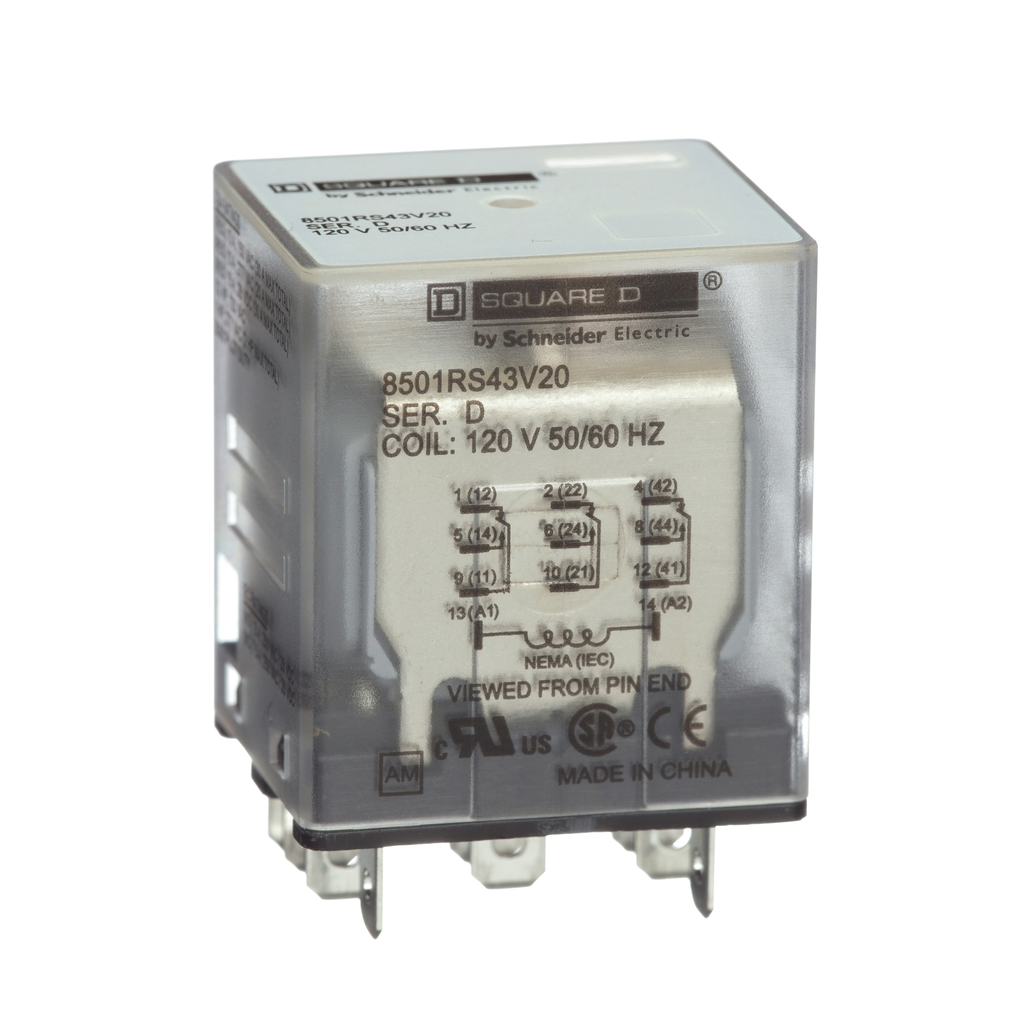

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR43 or 8501NR43B relay socket. Relay is available with 3PDT contact arrangements. It has three normally open and three normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC and at 28VDC, a 10 ampere resistive rating at 277 VAC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay has a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
QTY
  • Product Description
  • Specifications
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR43 or 8501NR43B relay socket. Relay is available with 3PDT contact arrangements. It has three normally open and three normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC and at 28VDC, a 10 ampere resistive rating at 277 VAC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay has a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
  • Environment
    • Product Certifications : UL Listed || UL Recognized || CSA || CE
    • Ambient Air Temperature For Operation : -40-131 °F
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Environmental Disclosure : ENVPEP1511008EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
  • Complementary
    • [Uc] Control Circuit Voltage : 24 V DC
    • Height : 27.3 mm
    • Local Signalling : green indicator relay energised LED
    • Mounting Support : socket
    • Contacts Material : silver alloy, gold flashed
    • Rated Power In Hp : 0.5 120 V AC || 1 277 V AC
    • Shape Of Pin : spade
    • Switch Function : 3PDT
    • Rated Breaking Capacity : 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 10 A 120 V AC resistive control circuit UL 508 || 6.67 A 277 V AC resistive control circuit UL 508 || 10 A 28 V DC resistive control circuit UL 508
    • Operating Time : 20 ms - pick-up || 20 ms - drop-out
    • Width : 30.6 mm
    • Depth : 41.8 mm
    • Product Compatibility : 8501NR43
    • Maximum Switching Voltage : 300 V AC || 30 V DC
    • Control Type : without test button
  • Specifications
    • Relay Type : standard
    • Range Of Product : 8501R
    • Product Or Component Type : Miniature Relay
