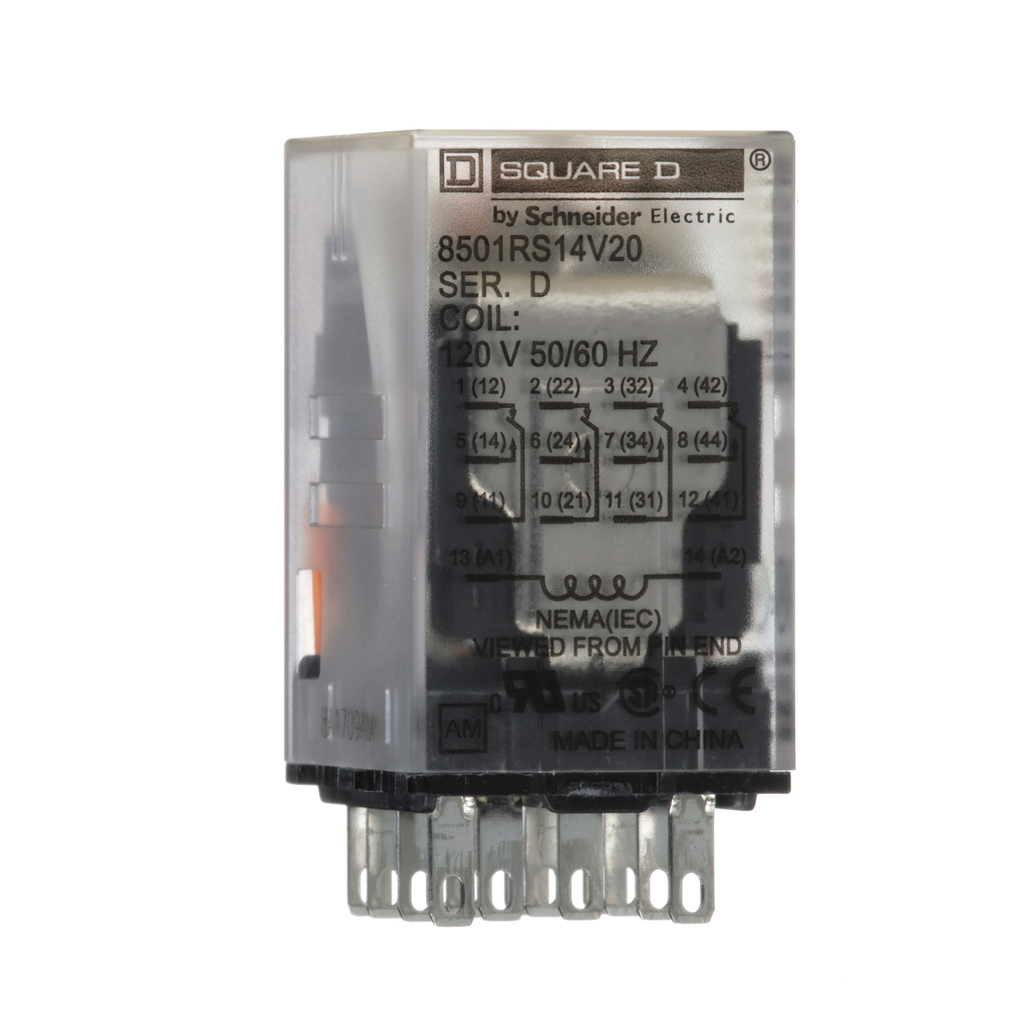

Plug in relay, Type R, miniature, 0.5 HP at 277 VAC, 8A resistive at 120 VAC, 14 blade, 4PDT, 4 NO, 4 NC, 120 VAC coil

RELAY 240VAC 5AMP TYPE R +OPTI

SQD8501RS14V20 8501RS14V20 785901559290
44.28 / EACH
  • Certifications: CE, CSA, UL Listed, UL Recognized
  • Country of Origin: China
  • Depth: 1.63 in, 41.5 mm
  • Height: 1.10 in, 27.9 mm
  • Mounting Type: Socket
  • Warranty Length: 18 mth
  • Width: 0.83 in, 21 mm
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR45 or 8501NR45B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contacts. The contacts have a 6 ampere resistive rating at 277 VAC, an 8 ampere resistive rating at 120 VAC and 30 VDC, a 1/3 HP rating at 120 VAC, a 1/2 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
  • Product Description
  • Features
  • Specifications
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR45 or 8501NR45B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contacts. The contacts have a 6 ampere resistive rating at 277 VAC, an 8 ampere resistive rating at 120 VAC and 30 VDC, a 1/3 HP rating at 120 VAC, a 1/2 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
  • UL Component Recognized and CSA Certified
  • Blade termination for sockets
  • Designed for multiple switching applications
  • Available with SPDT, DPDT, 3PDT or 4PDT contact arrangements
  • Wide variety of coil voltages available
  • An optional green LED pilot light is available
  • Miniature Plug-In Relays
  • Complementary
    • Operating Time : 20 ms - pick-up || 20 ms - drop-out
    • Width : 0.83 in (21 mm)
    • Contact Composition : 4PDT
    • Horsepower Rating : 0.33 120 V AC || 0.5 277 V AC
    • For Use With : 8501NR45
    • Shape Of Pins : Spade
    • Maximum Switching Voltage : 300 V AC || 30 V DC
    • Manual Operator : Without test button
    • Contact Material : Silver alloy, gold flashed
    • Breaking Capacity : 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 8 A 120 V AC resistive control circuit UL 508 || 6 A 277 V AC resistive control circuit UL 508 || 8 A 30 V DC resistive control circuit UL 508
    • Depth : 1.63 in (41.5 mm)
    • [Uc] Control Circuit Voltage : 120 V AC
    • Mounting Type : Socket
    • Pilot Light : No indicator
    • Height : 1.10 in (27.9 mm)
  • Ordering And Shipping Details
    • Nbr. Of Units In Pkg. : 1
    • Country Of Origin : CN
    • Returnability : Yes
    • GTIN : 00785901559290
    • Discount Schedule : CP2
    • Category : 21143 - 8501 R
  • Main
    • Product Type : Miniature Relay
    • Relay Type : Low voltage
    • Product Range : 8501R
  • Environment
    • Ambient Temperature Range - Operational : -40…131 °F (-40…55 °C)
    • Product Certifications : UL Listed || UL Recognized || CSA || CE
  • Offer Sustainability
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • REACh Free Of SVHC : Yes
    • Green Premium Status : Green Premium product
  • Contractual Warranty
    • Warranty : 18 months
