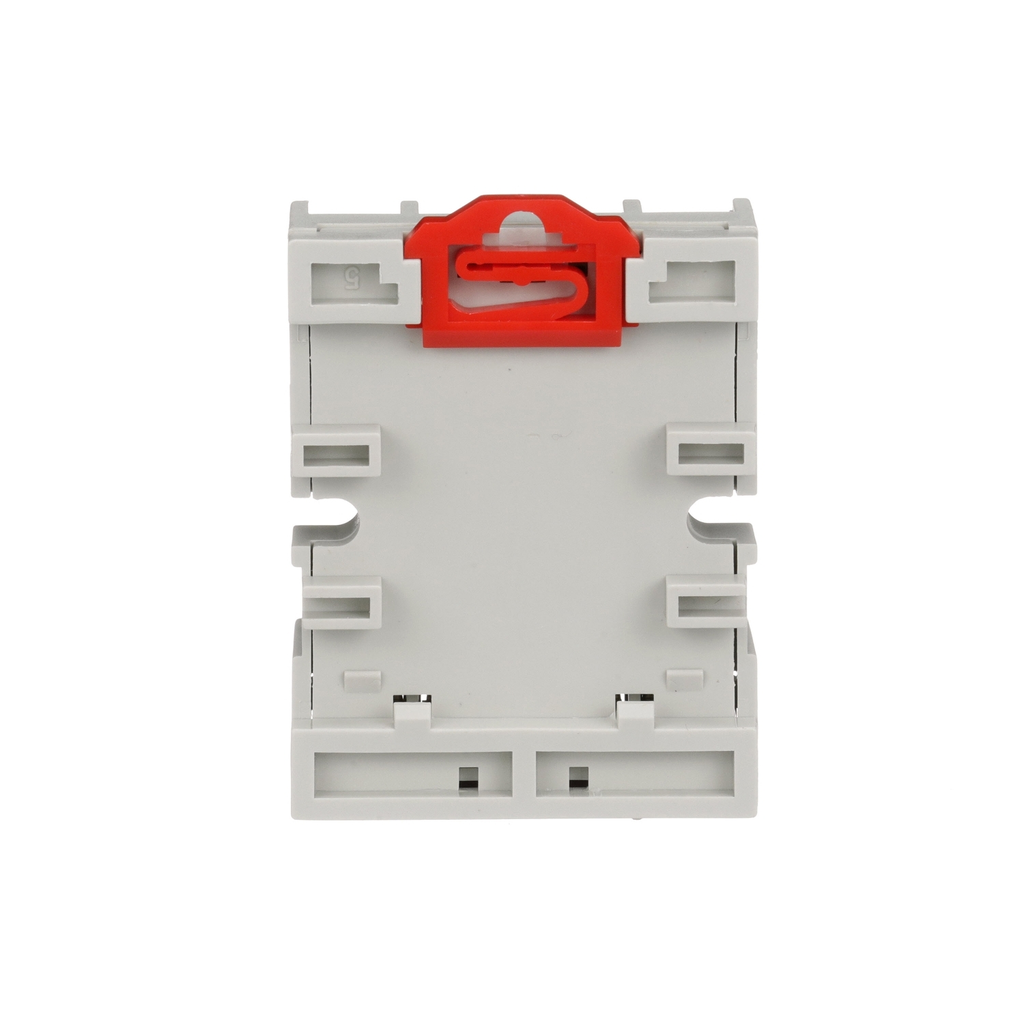

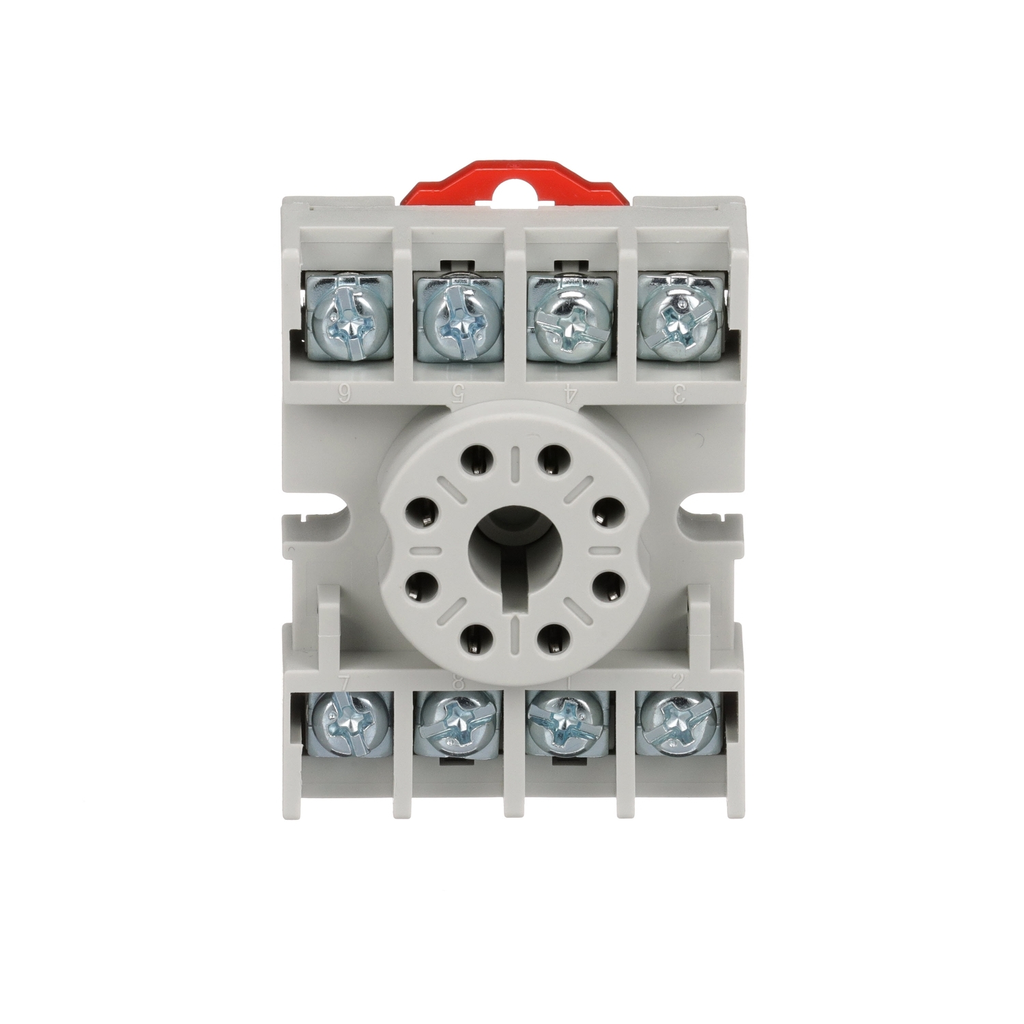

Plug in relay, Type N, relay socket, 8 tubular pin, single tier, for 8501KP relays and 9050JCK timers

Plug in relay, Type N, relay socket, 8 tubular pin, single tier, for 8501KP relays and 9050JCK timers

SQD8501NR51 8501NR51 785901583592
18.63 / EACH
  • Country of Origin: China
  • Depth: 0.97 in, 24.6 mm
  • Height: 2.13 in, 54 mm
  • Mounting Type: DIN Rail, Panel
  • Warranty Length: 18 mth
  • Width: 1.57 in, 40 mm
8501NR plug in relay sockets are designed for the proper wiring of 8501K plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501KPR12 and 8501KPDR12 relays and 9050JCK timers will plug into this relay socket which is designed for 8 tubular pins. The socket terminals have pressure wire clamps for a good secure connection. To make wiring easier the terminals are not stacked. 8501NR plug in relay sockets are UL component recognized and CSA certified.
  • Product Description
  • Features
  • Specifications
8501NR plug in relay sockets are designed for the proper wiring of 8501K plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501KPR12 and 8501KPDR12 relays and 9050JCK timers will plug into this relay socket which is designed for 8 tubular pins. The socket terminals have pressure wire clamps for a good secure connection. To make wiring easier the terminals are not stacked. 8501NR plug in relay sockets are UL component recognized and CSA certified.
  • For use with 8501 K plug in relays and 8501R miniature plug in relays
  • Single or bulk packaged
  • UL Component Recognized and CSA Certified
  • Pressure wire connectors
  • Plug-In Relay Sockets
  • Environment
    • Certifications : UL Recognized || CSA || RoHS || CE
    • Width : 1.57 in (40 mm)
    • Depth : 0.97 in (24.6 mm)
    • Height : 2.13 in (54 mm)
  • Complementary
    • Package Quantity : 1
    • Mounting Type : DIN rail || Panel
    • Electrical Connection : Single tiered screw clamp terminals
  • Offer Sustainability
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Green Premium Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • REACh Free Of SVHC : Yes
  • Contractual Warranty
    • Warranty : 18 months
  • Main
    • Number Of Pins : 8
    • Product Range : 8501N
    • [In] Rated Current : 15 A 300 V AC || 5 A 600 V AC
    • Product Type : Relay Socket
    • Pin Shape : Tubular
  • Ordering And Shipping Details
    • Returnability : Yes
    • Country Of Origin : CN
    • Discount Schedule : CP2
    • GTIN : 00785901583592
    • Category : 21142 - 8501 N
