SQUARE D

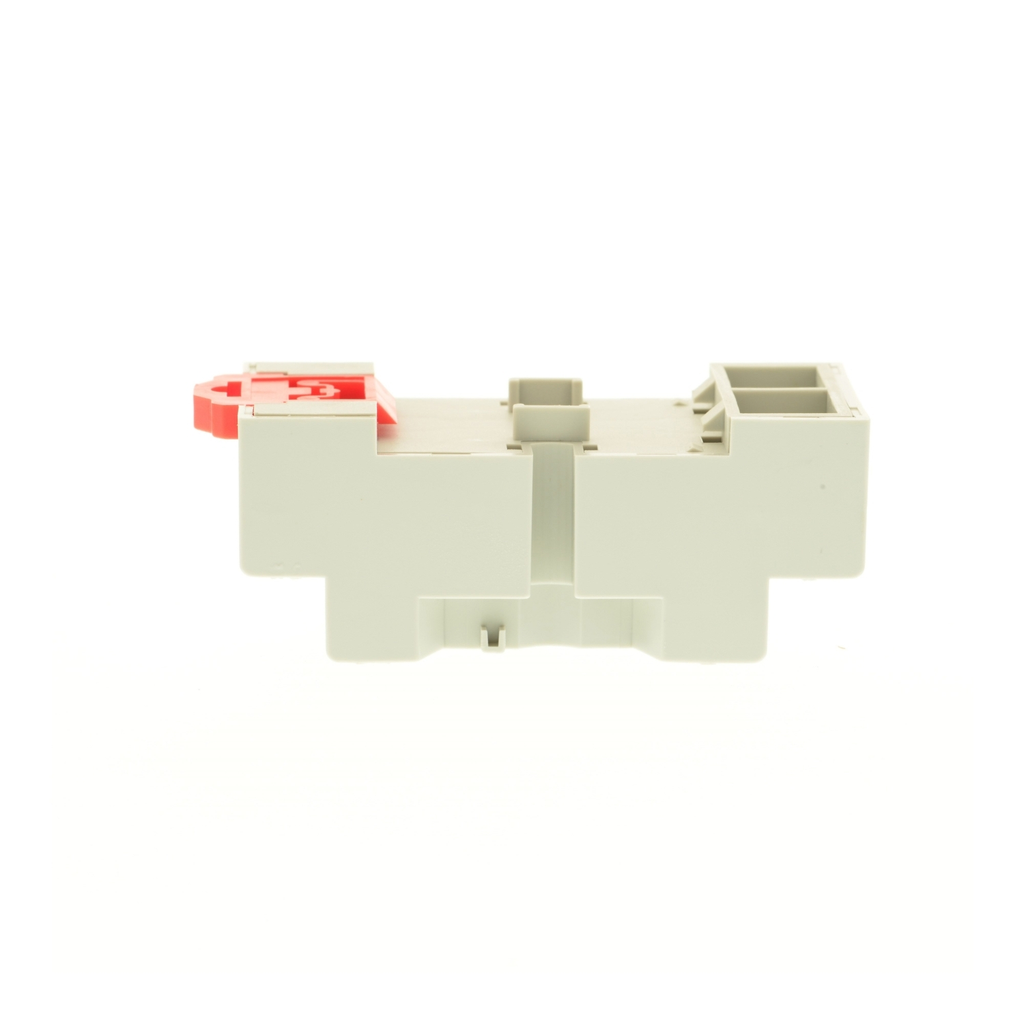

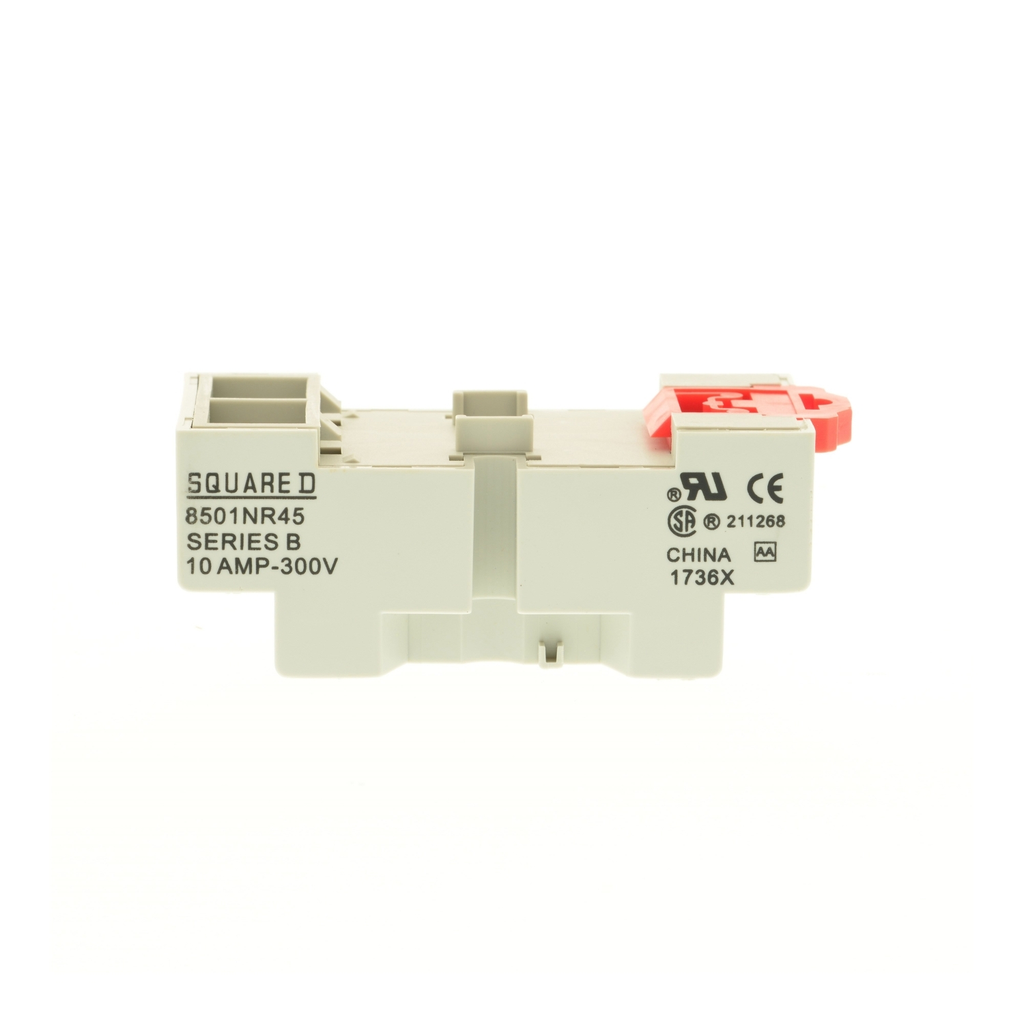

Plug in relay, Type N, relay socket, 14 blade, for 8510R relays, bulk packaged

RELAY SOCKET 300VAC 10AMP TYPE

SQD8501NR45B 8501NR45B 785901006015
40.42 / EACH
  • Country of Origin: China
  • Depth: 1.00 in, 25.4 mm
  • Height: 2.72 in, 69 mm
  • Mounting Type: DIN Rail, Panel
  • Warranty Length: 18 mth
  • Width: 1.21 in, 30.7 mm
8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS14, 8501RS24 or 8501RS34 relays will plug into this relay socket which is designed for 14 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified. These relay sockets are packed with ten sockets per box to make it quicker to get the sockets out on the packing and to reduce packing waste.
  • Product Description
  • Specifications
8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS14, 8501RS24 or 8501RS34 relays will plug into this relay socket which is designed for 14 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified. These relay sockets are packed with ten sockets per box to make it quicker to get the sockets out on the packing and to reduce packing waste.
  • Ordering And Shipping Details
    • Category : 21142 - 8501 N
    • Returnability : Yes
    • Country Of Origin : CN
    • GTIN : 00785901006015
    • Discount Schedule : CP2
  • Complementary
    • Electrical Connection : Double tiered screw clamp terminals
    • Package Quantity : Set of 10
    • Mounting Type : DIN rail || Panel
  • Contractual Warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Green Premium Status : Green Premium product
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • REACh Free Of SVHC : Yes
  • Main
    • Number Of Pins : 14
    • Product Type : Relay Socket
    • Product Range : 8501N
    • Pin Shape : Spade
    • [In] Rated Current : 10 A 300 V AC
  • Environment
    • Width : 1.21 in (30.7 mm)
    • Depth : 1.00 in (25.4 mm)
    • Height : 2.72 in (69 mm)
    • Certifications : UL Recognized || CSA || RoHS || CE
