SQUARE D

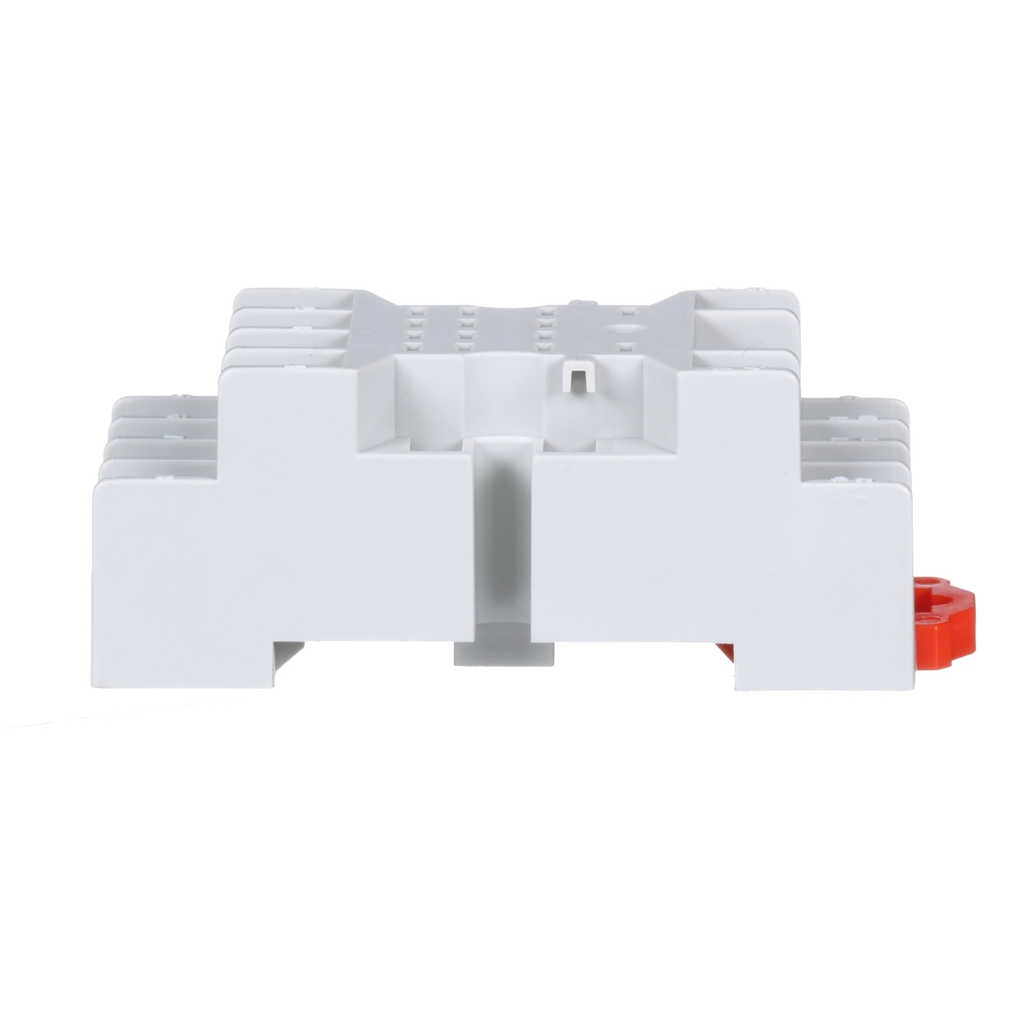

Plug in relay, Type N, relay socket, 14 blade, for 8510R relays

8501-NR45 SQD SOCKET

SQD8501NR45 8501NR45 785901583660
43.46 / EACH
Mayer-Plug in relay, Type N, relay socket, 14 blade, for 8510R relays-1
  • Country of Origin: China
  • Depth: 1.00 in, 25.4 mm
  • Height: 2.72 in, 69 mm
  • Mounting Type: DIN Rail, Panel
  • Warranty Length: 18 mth
  • Width: 1.21 in, 30.7 mm
8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS14, 8501RS24 or 8501RS34 relays will plug into this relay socket which is designed for 14 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.
  • Product Description
  • Features
  • Specifications
8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS14, 8501RS24 or 8501RS34 relays will plug into this relay socket which is designed for 14 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.
  • For use with 8501 K plug in relays and 8501R miniature plug in relays
  • Single or bulk packaged
  • Pressure wire connectors
  • Plug-In Relay Sockets
  • UL Component Recognized and CSA Certified
  • Main
    • Product Type : Relay Socket
    • Number Of Pins : 14
    • Product Range : 8501N
    • Pin Shape : Spade
    • [In] Rated Current : 10 A 300 V AC
  • Complementary
    • Package Quantity : 1
    • Electrical Connection : Double tiered screw clamp terminals
    • Mounting Type : Panel || DIN rail
  • Contractual Warranty
    • Warranty : 18 months
  • Offer Sustainability
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Green Premium Status : Green Premium product
    • Mercury Free : Yes
    • REACh Free Of SVHC : Yes
    • Toxic Heavy Metal Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Height : 2.72 in (69 mm)
    • Depth : 1.00 in (25.4 mm)
    • Width : 1.21 in (30.7 mm)
    • Certifications : UL Recognized || CSA || RoHS || CE
  • Ordering And Shipping Details
    • Returnability : Yes
    • GTIN : 00785901583660
    • Country Of Origin : CN
    • Discount Schedule : CP2
    • Category : 21142 - 8501 N
    • Nbr. Of Units In Pkg. : 1
