SQUARE D

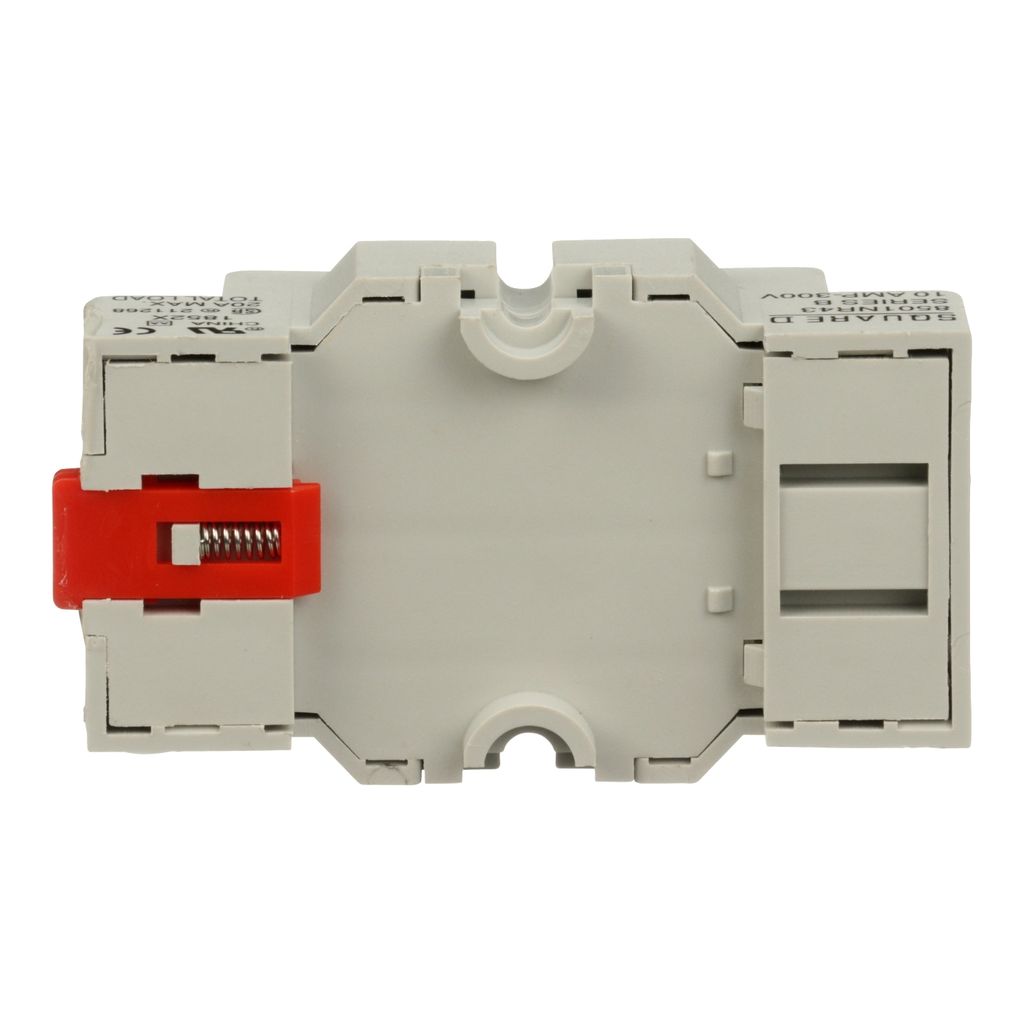

Plug in relay, Type N, relay socket, 11 blade, for 8510R relays

Plug in relay, Type N, relay socket, 11 blade, for 8510R relays

SQD8501NR43 8501NR43 785901137290
40.84 / EACH
  • Country of Origin: China
  • Depth: 1.09 in, 27.7 mm
  • Height: 2.74 in, 69.6 mm
  • Mounting Type: DIN Rail, Panel
  • Warranty Length: 18 mth
  • Width: 1.59 in, 40.4 mm
8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS43 or 8501RSD43 relay will plug into this relay socket which is designed for 11 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.
  • Product Description
  • Specifications
8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS43 or 8501RSD43 relay will plug into this relay socket which is designed for 11 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.
  • Contractual Warranty
    • Warranty : 18 months
  • Ordering And Shipping Details
    • Discount Schedule : CP2
    • GTIN : 00785901137290
    • Nbr. Of Units In Pkg. : 1
    • Category : 21142 - 8501 N
    • Country Of Origin : CN
    • Returnability : Yes
  • Offer Sustainability
    • Mercury Free : Yes
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Green Premium Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • REACh Free Of SVHC : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Main
    • Product Type : Relay Socket
    • Product Range : 8501N
    • Number Of Pins : 11
    • Pin Shape : Spade
    • [In] Rated Current : 10 A 300 V AC
  • Complementary
    • Package Quantity : 1
    • Mounting Type : DIN rail || Panel
    • Electrical Connection : Double tiered screw clamp terminals
  • Environment
    • Height : 2.74 in (69.6 mm)
    • Width : 1.59 in (40.4 mm)
    • Depth : 1.09 in (27.7 mm)
    • Certifications : UL Recognized || CSA || RoHS || CE
