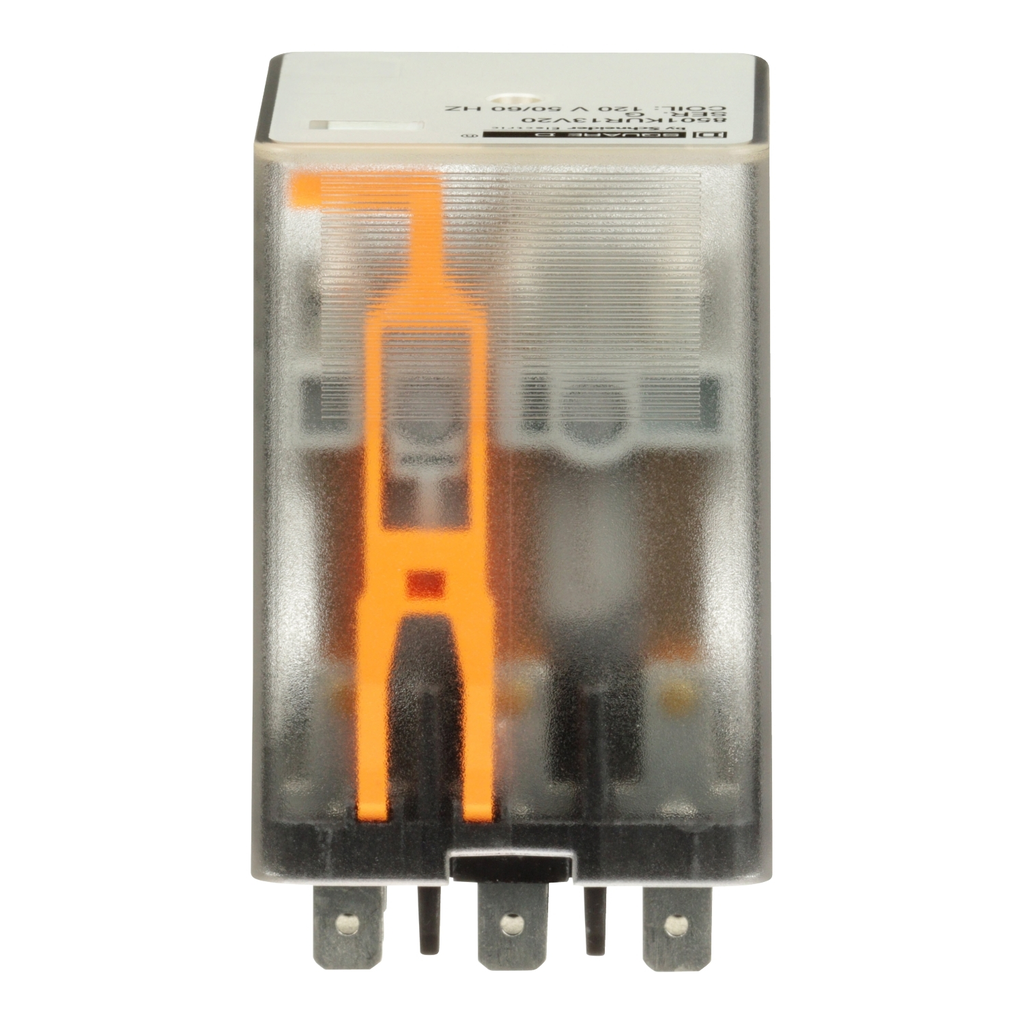

Relay, Harmony 8501K, 3PDT, 11 blades, coil, 10A resistive at 120V AC, 0.5 HP at 240V AC, 120V AC, 3NO + 3NC

RELAY 3CO QC PIN 6.6A@240V 120

SQD8501KUR13V20 8501KUR13V20 785901978831
32.86 / EA
http://schema.org/OutOfStock

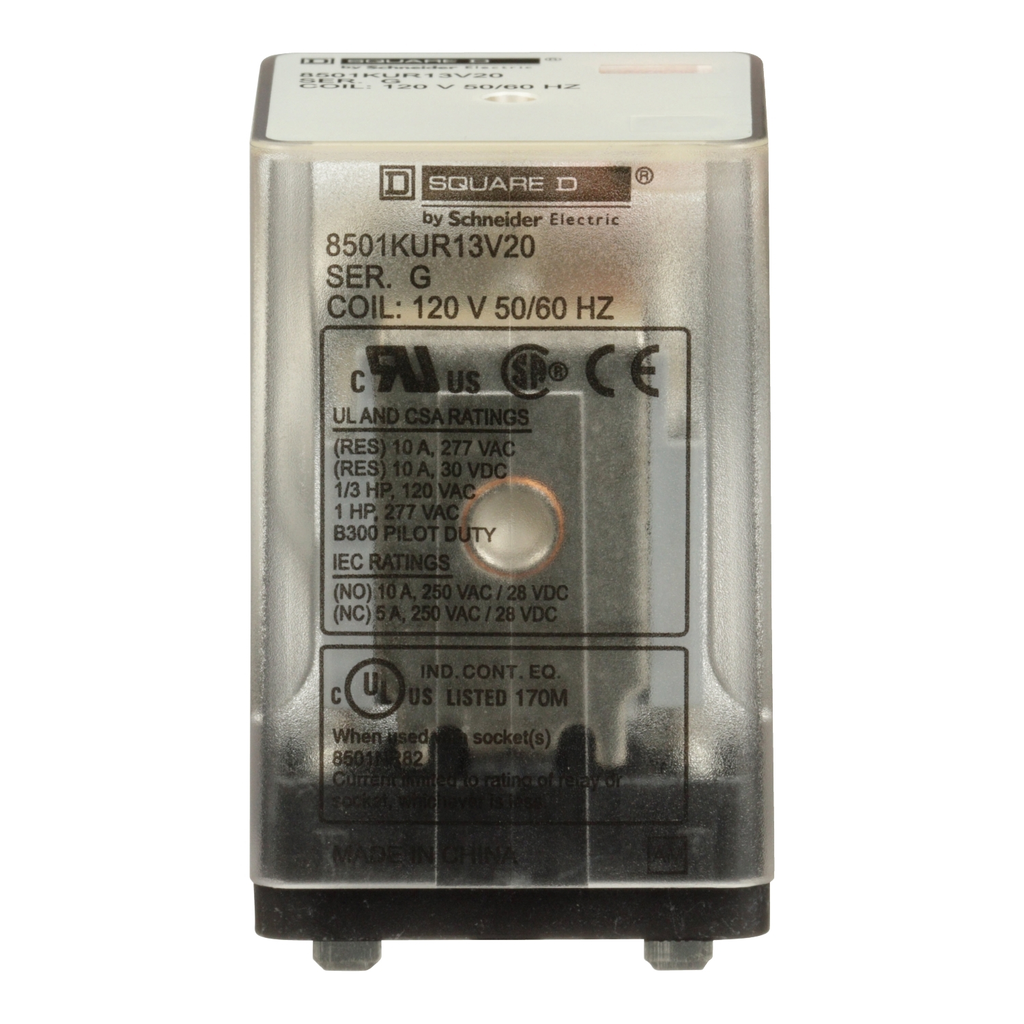

Mayer-DDS-Relay, Harmony 8501K, 3PDT, 11 blades, coil, 10A resistive at 120V AC, 0.5 HP at 240V AC, 120V AC, 3NO + 3NC-1
  • Depth: 1.4 in
8501KU universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR82 relay socket. This relay has a 3PDT contact arrangements. It has three normally open and three normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KU relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
8501KU universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR82 relay socket. This relay has a 3PDT contact arrangements. It has three normally open and three normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 120 VAC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KU relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Conformance Attributes
    • Product Certifications : UL Listed, UL Recognized, CSA, CE
  • Complementary Attributes
    • Maximum Switching Voltage : 300 V AC, 30 V DC
    • Rated Breaking Capacity : 3 A 120 V AC inductive control circuit UL 508, 1.5 A 240 V AC inductive control circuit UL 508, 10 A 277 V AC resistive control circuit UL 508, 10 A 30 V DC resistive control circuit UL 508
    • Rated Power In Hp : 1 hp 277 V AC, 0.33 hp 120 V AC
    • Uc Control Circuit Voltage : 120 V AC
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Operating Time : 20 ms - pick-up, 20 ms - drop-out
    • Carbon Footprint Of The Distribution Phase A4 : 0.011862795, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.1426203937
    • Carbon Footprint Of The Installation Phase A5 : 0.000731471, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.6 kg CO2 eq., 0.6038382604
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 25 kg CO2 eq., 24.5363507625
    • Medium Desc : Relay, Harmony 8501K, 3PDT, 11 blades, coil, 10A resistive at 120V AC, 0.5 HP at 240V AC, 120V AC, 3NO + 3NC
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Html Descr : General Purpose Plug-In Relay BladeSwitch Function: 3PDTControl Circuit Voltage: 120V AC10A at 250V ACRated Power in HP: 1 HP 277V, 0.33 HP 120VClear CoverNo LED
    • Return Indicator : Y
    • Stocking Flag : N
    • Manufacturer : Schneider Electric
    • Legacy Weee Scope : Out
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2403024EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Contacts Material : silver alloy (AgNi)
    • Local Signalling : no indicator
    • Mounting Support : socket
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : relay
    • Range Of Product : 8501K
    • Relay Type : general purpose
    • Returnability : Yes
    • Shape Of Pin : spade
    • Software Version : v5.9.4
    • Sustainable Packaging : No
    • Switch Function : 3PDT
    • Total Lifecycle Carbon Footprint : 25 kg CO2 eq.
    • Pep Code : ENVPEP2403024EN
    • Database Version : 2022-01
    • Pep Verification Date : 2022-10-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 10 years with a 99% use rate, in compliance with French standards.
    • Functional Unit Unit : unité (unit)
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Mexico
    • Energy Model Installation A5 2 : Ecobilan identifier / ECO-168-
    • Energy Model Use B6 2 : Ecobilan identifier / ECO-168-
    • Energy Model End Of Life C1 C4 2 : Ecobilan identifier / ECO-168-
    • Height Nominal : 2.25 in
    • Width Nominal : 1.37 in
  • Environment Attributes Main
    • Take Back : Nej
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Carbon Footprint : 25.2954036827
    • Ambient Air Temperature For Operation : -40-131 °F
    • Circularity Profile : ENVEOLI2403024EN
    • Environmental Disclosure : ENVPEP2403024EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Product Compatibility : 8501NR82
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2403024EN
    • Pep Verification Date : 2022-10-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : relay
    • Range Of Product : 8501K
  • Specifications
    • Depth : 1.4 in
