Relay, Harmony 8501K, DPDT, 8 pins, coil, 10A resistive at 120V AC, 240V AC, 1 HP at 277V AC, 2NO + 2NC

RELAY 2CO CYL PIN 10A@240V 240

SQD8501KPR12V24 8501KPR12V24 785901334187
66.08 / EA
http://schema.org/OutOfStock

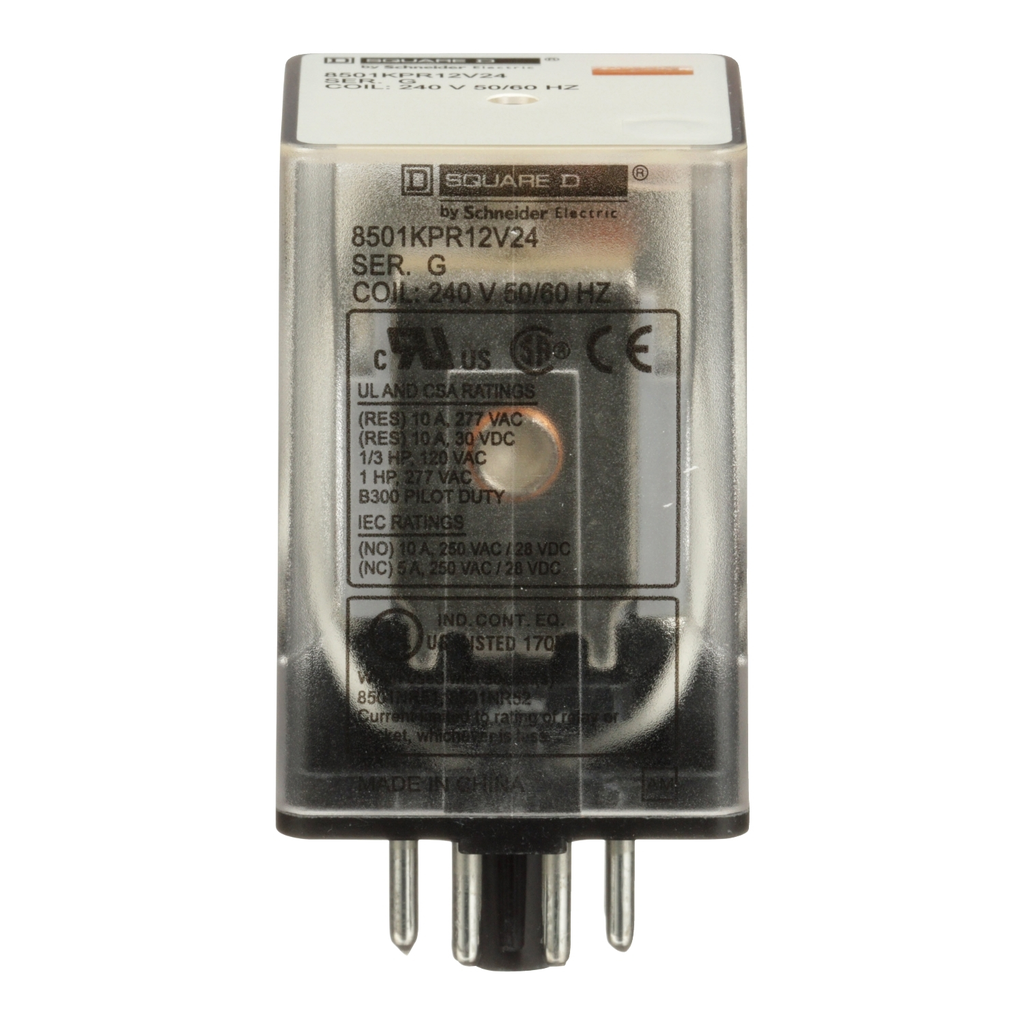

Mayer-DDS-Relay, Harmony 8501K, DPDT, 8 pins, coil, 10A resistive at 120V AC, 240V AC, 1 HP at 277V AC, 2NO + 2NC-2
  • Country of Origin: China
  • Depth: 1.4 in
  • Height: 2.66 in
  • Width: 1.4 in
8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR51 or 8501NR52 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 240 VAC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR51 or 8501NR52 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 240 VAC nonreplaceable coil. A green LED indicator is not supplied on this relay. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Specifications
    • Country of Origin : China
    • Width : 1.4 in
    • Height : 2.66 in
    • [Uc] Control Circuit Voltage : 240 V AC
    • Range Of Product : 8501K
    • Mounting Support : socket
    • Product Or Component Type : relay
    • Control Type : without test button
    • Relay Type : general purpose
    • Switch Function : DPDT
  • Complementary
    • Contacts Material : silver alloy (AgNi)
    • Shape Of Pin : tubular
    • Maximum Switching Voltage : 300 V AC || 30 V DC
    • Rated Power In Hp : 1 hp 277 V AC
    • Operating Time : 20 ms - pick-up || 20 ms - drop-out
    • Product Compatibility : 8501NR52 || 8501NR51
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : No
    • Environmental Disclosure : ENVPEP1406038EN
    • Packaging Without Single Use Plastic : No
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 24.5363507625
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.6340308391
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 25 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.1497515706
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 25.3333571654
  • Environment
    • Product Certifications : UL Listed || UL Recognized || CSA || CE
    • Ambient Air Temperature For Operation : -40-131 °F
    • Height : 2.66 in
    • Width : 1.4 in
    • Depth : 1.4 in
