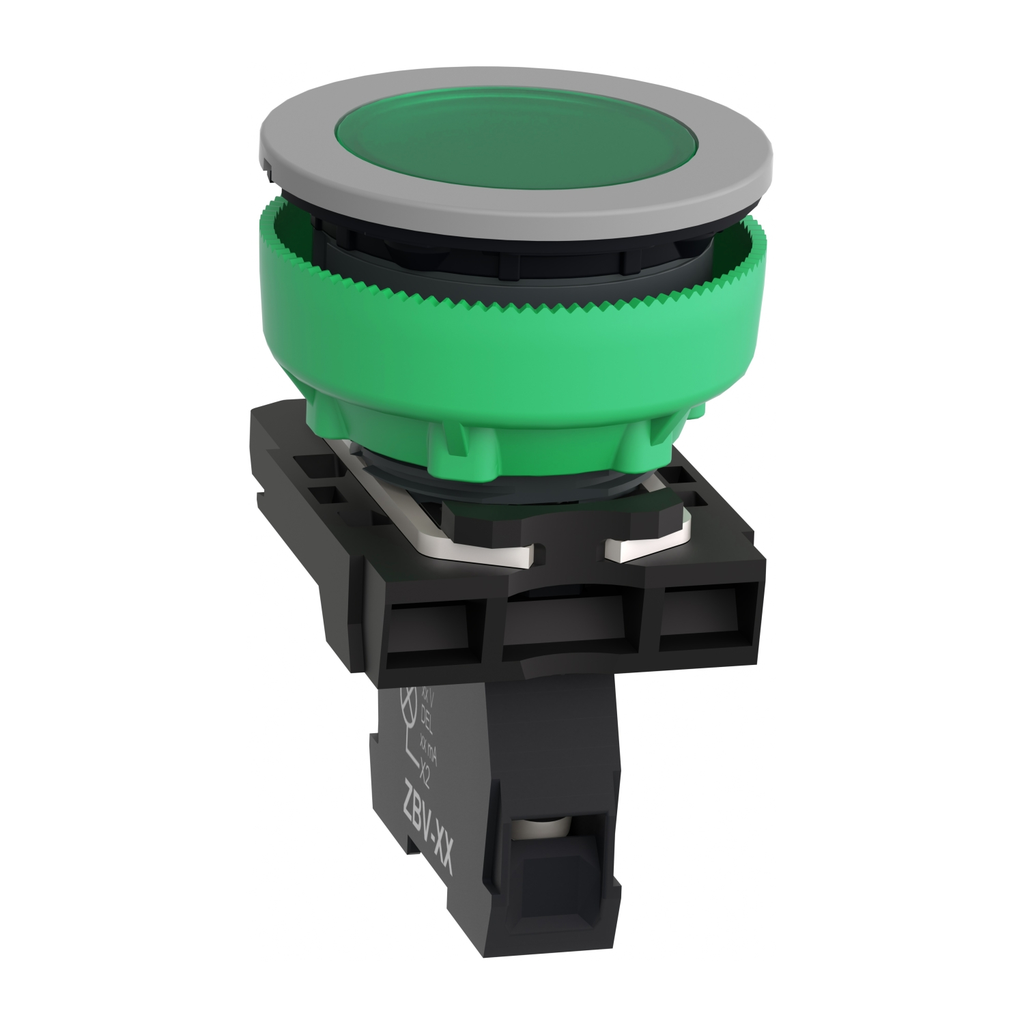

This flush mounted pilot light is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 24 V AC/DC. Customized marking option through web customization tool is available in S

• US Rated Supply Voltage
• 24 V AC/DC 50/60 Hz
• Connections Terminals
• screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
• screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60
• Overvoltage Category
• class II conforming to IEC 60536
• Supply Voltage Limits
• 19.2-30 V DC
• 21.6-26.4 V AC
• IP Degree Of Protection
• IP66 IEC 60529
• IP67 IEC 60529
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Standards
• JIS C8201-5-1
• CSA C22.2 No 14
• UL 508
• IEC 60947-1
• IEC 60947-5-4
• IEC 60947-5-1
• JIS C8201-1
• Nema Degree Of Protection
• NEMA 13
• NEMA 4X
• UI Rated Insulation Voltage
• 250 V 3)IEC 60947-1
• Accessories
• ZB5AZ905
• ZBE101
• ZBE102
• ZBYF2101C0
• ZBYLEG503001
• Service Life
• 100000 h at rated voltage and 25 °C
• Vibration Resistance
• 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
• Electromagnetic Compatibility
• electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2
• electrostatic discharge - test level: 6 kV (on conta
• Resistance To Fast Transients
• 2 kV IEC 61000-4-4
• Surge Withstand
• 1 kV IEC 61000-4-5
• Electromagnetic Emission
• class B IEC 55011
• Customizable
• no
• 1
• Resistance To Electrostatic Discharge
• 6 kV on contact (on metal parts) IEC 61000-4-2
• 8 kV in free air (in insulating parts) IEC 61000-4-2
• 8 kV in
• Resistance To High Pressure Washer
• 7000000 Pa 55 °C 0.1 m
• Resistance To Electromagnetic Fields
• 10 V/m IEC 61000-4-3
• Shock Resistance
• 50 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• 30 gn 11 ms) half sine wave ac
• UIMP Rated Impulse Withstand Voltage
• 4 kV IEC 60947-1

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0002197_3D-CAD
• Important Information Attributes
• B2B Bullet Point 1 : Quick and easy assembly and disassembly
• B2B Bullet Point 2 : Robustness to withstand harsh environments
• B2B Bullet Point 3 : With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
• B2B Bullet Point 4 : A wide choice of contact blocks for general purposes or specific applications
• B2B Bullet Point 5 : Excellent mechanical connection with operator head
• B2B Bullet Point 6 : A large set of accessories to customize your panels
• Local Data Status : Publishable
• Local Publishable Date : 2/26/2025
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308027EN
• Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1930
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Bezel Material : plastic colour plated grey
• Bulb Base : integral LED
• Device Short Name : XB5F
• Fixing Collar Material : plastic
• GCR Bridge : XB5FVCUST02
• Head Type : built-in-flush
• Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
• Mounting Diameter : 30.5 mm
• Package Weight Lbs : 42.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : pilot light
• Product Repair Index : A
• Range Of Product : Harmony XB5
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : round
• Signalling Type : steady
• Sustainable Packaging : Yes
• Terminals Description ISO N 1 : (X1-X2)PL
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
• Pep Code : ENVPEP2308027EN
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : pilot light
• Range Of Product : Harmony XB5
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=495749238&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : X
• Mercury Free : Yes
• Circularity Profile : ENVEOLI2308027EN
• Environmental Disclosure : ENVPEP2308027EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308027EN
• Specifications
• Country of Origin : France
• Overview Attributes
• Device Presentation : complete product
