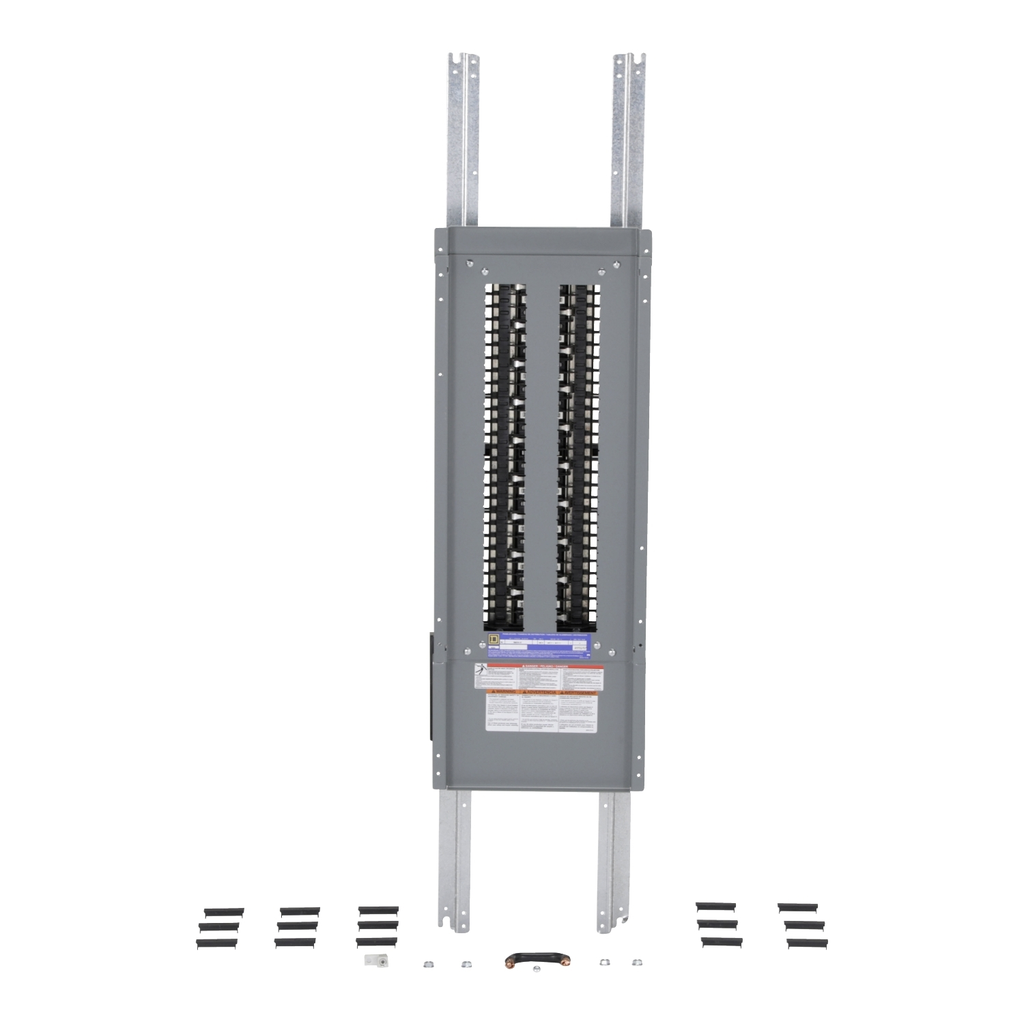

Panelboard interior, NQ, main lugs, 600A, Cu bus, 54 pole spaces, 3 phase, 4 wire, 240 VAC, 48 VDC

Panelboard interior, NQ, main lugs, 600A, Cu bus, 54 pole spaces, 3 phase, 4 wire, 240 VAC, 48 VDC

SQDNQ454L6C NQ454L6C 785901988526
2547.24 / EA
  • Amperage: 600 A
  • Standard: CSA, UL
  • Voltage: 240 V, 48 V
NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboard interiors are field convertible to top or bottom feed. NQ Panelboards are convertible from main lug to main breaker. NQ Panelboards provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. This interior provides protection for your commercial and industrial applications. The main lugs are rated at 600A, 240 VAC 3 phase or 48 VDC. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 54 spaces and has a copper bus bar. Interior is for QOB, QOBVH and QHB branch circuit breakers. Lug connections will accept two 1/0 AWG to 750 kcmil aluminum wire. This NQ panelboard interior is UL listed and CSA certified.
  • Product Description
  • Specifications
NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboard interiors are field convertible to top or bottom feed. NQ Panelboards are convertible from main lug to main breaker. NQ Panelboards provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. This interior provides protection for your commercial and industrial applications. The main lugs are rated at 600A, 240 VAC 3 phase or 48 VDC. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 54 spaces and has a copper bus bar. Interior is for QOB, QOBVH and QHB branch circuit breakers. Lug connections will accept two 1/0 AWG to 750 kcmil aluminum wire. This NQ panelboard interior is UL listed and CSA certified.
  • Ordering And Shipping Details
    • Category : 09151 - NQ RTA PANELBOARDS
    • Discount Schedule : PE1A
    • Returnability : Yes
    • Nbr. Of Units In Pkg. : 1
    • GTIN : 00785901988526
  • Offer Sustainability
    • Toxic Heavy Metal Free : Yes
    • EU RoHs Directive : Compliant
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • REACh Free Of SVHC : Yes
    • Mercury Free : Yes
  • Complementary
    • Wiring Configuration : 4-wire
    • Enclosure Nominal Height : 68 in (1727.20 mm)
    • Enclosure Nominal Depth : 5.75 in (146.05 mm) NEMA 1 || 6.5 in (165.10 mm) NEMA 3R/5/12
    • Iu Rated Interrupted Current : 10 kA || 22 kA || 65 kA
    • Number Of Spaces : 54
    • Number Of Phases : 3 phase
    • Enclosure Nominal Width : 20 in (508.00 mm)
    • Voltage Rating : 240 V AC || 48 V DC
    • In Rated Current : 600 A
    • Connections - Terminals : Lug line AWG 1/0...750 kcmil aluminium || Lug neutral AWG 1/0...750 kcmil aluminium
    • Tightening Torque : 274.99…300.04 lbf.in (31.07…33.90 N.m) 0.08…0.59 in² (53.48…380 mm²) AWG 1/0...750 kcmil) || 274.99…300.04 lbf.in (31.07…33.90 N.m) 0.08…0.27 in² (53.48…177.3 mm²) AWG 1/0...350 kcmil) || 549.98 lbf.in (62.14 N.m) 0.08…0.59 in² (53.48…380 mm²) AWG 1/0...750 kcmil) || 549.98 lbf.in (62.14 N.m) 0.08…0.24 in² (53.48…152 mm²) AWG 1/0...300 kcmil) || 375.01 lbf.in (42.37 N.m) 0.08…0.59 in² (53.48…380 mm²) AWG 1/0...750 kcmil) || 375.01 lbf.in (42.37 N.m) 0.08…0.24 in² (53.48…152 mm²) AWG 1/0...300 kcmil)
  • Environment
    • Standards : CSA || UL
  • Main
    • Branch Circuit Breaker Type : QOB || QOB-VH || QHB
    • Busbar Material : Copper
    • Panelboard Type : Main lugs
