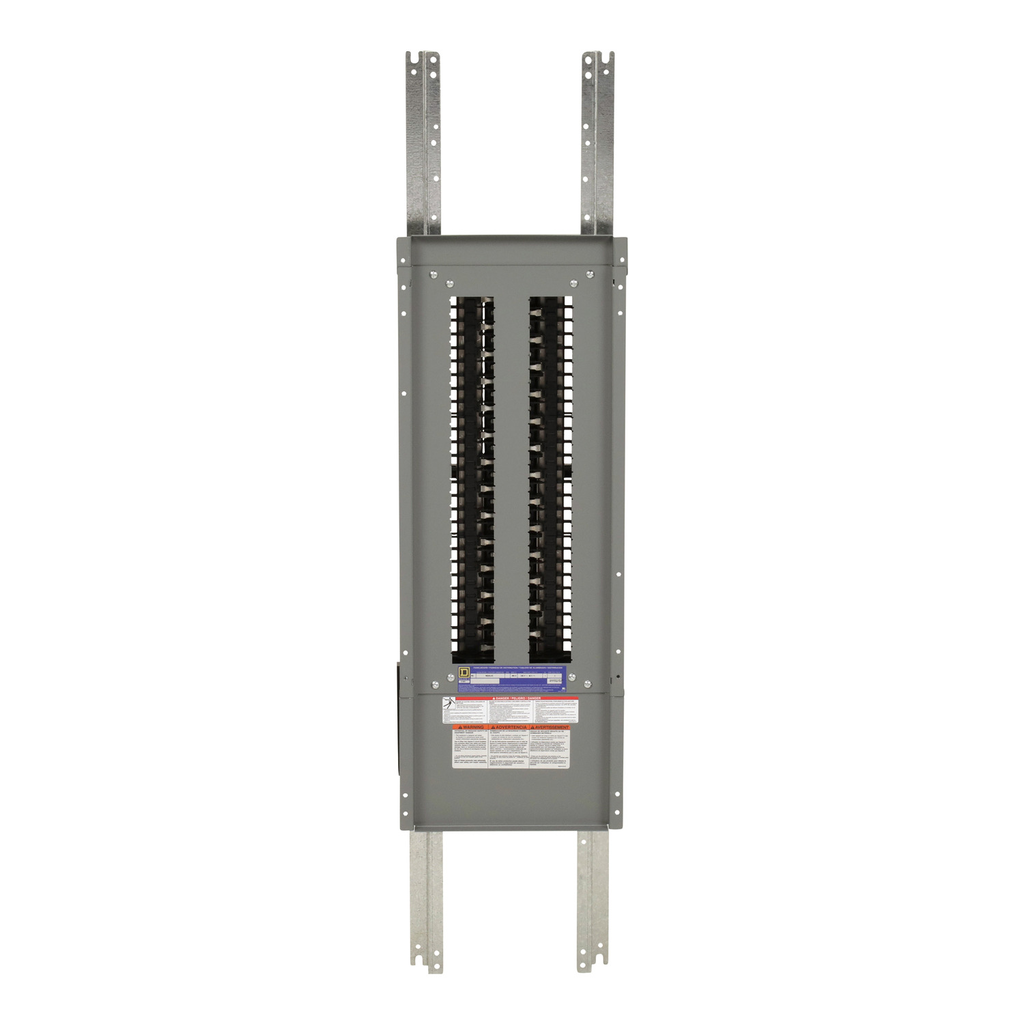

Panelboard interior, NQ, main lugs, 400A, Cu bus, 54 pole spaces, 1 phase, 3 wire, 240VAC, 48VDC

400A 1P 54 CKT CU

SQDNQ54L4C NQ54L4C 785901049081
2459.98 / EA
http://schema.org/OutOfStock
  • Country of Origin: Mexico
  • Enclosure Height: 68 in
  • Enclosure Width: 20 in
  • Material: Copper
  • Number of Spaces: 54
NQ Panelboard interiors may be used in a wide variety of applications including: commercial buildings; industrial buildings; data centers; stadiums; and offices. NQ Panelboards are versatile panelboards that feature a wide selection of bolt-on and plug-o
QTY
  • Product Description
  • Features
  • Specifications
NQ Panelboard interiors may be used in a wide variety of applications including: commercial buildings; industrial buildings; data centers; stadiums; and offices. NQ Panelboards are versatile panelboards that feature a wide selection of bolt-on and plug-o
  • Circuit Breaker Type
    • QOB
    • QOB-VH
    • QHB
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm.
  • Carbon Footprint Of The Installation Phase A5
    • 0.3516473819
    • 0.4 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 22 kg CO2 eq.
    • 22.2106845092
  • Standards
    • CSA
    • UL
  • Ue Rated Operational Voltage
    • 240 V AC
    • 48 V DC
  • Phase
    • 1 phase 3 wires
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 61 kg CO2 eq.
    • 61.2565713078
  • Accessories
    • NQFTL4H
    • NQN6CU
    • NQFP15
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 45 kg CO2 eq.
    • 44.7040371444
  • Persona Type Ids
    • EU
    • LC
    • OM
  • Iu Rated Interrupted Current
    • 10 kA
    • 22 kA
    • 65 kA
  • Carbon Footprint Of The Distribution Phase A4
    • 2.7457049641
    • 3 kg CO2 eq.
  • Tightening Torque
    • 31.07-33.90 N.m 53.48-380 mm² (AWG 1/0...750 kcmil)
    • 31.07-33.90 N.m 53.48-177.3 mm² (AWG 1/0...350 kcmil)
    • 31.07-33.90 N.m 53.48-177.3 mm² (AWG 1/0...3
  • Boxes
    • MH56
    • MH56WP
    • MH68
  • Physical Attributes
    • Enclosure Nominal Height : 68 in
    • Enclosure Nominal Width : 20 in
  • Complementary Attributes
    • Line Rated Current : 400 A
  • Important Information Attributes
    • Country Id : US
    • B2B Bullet Point 1 : Ready to install interior assembly
    • B2B Bullet Point 2 : Field convertible to top or bottom feed
    • B2B Bullet Point 3 : Available as main lug or main breaker
    • B2B Bullet Point 4 : Interiors accept QO(VH) plug in and QOB(VH) bolt on circuit breakers
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-19
    • Manufacturing Carbon Footprint : 61.2565713078
    • Distribution Carbon Footprint : 2.7457049641
    • Installation Carbon Footprint : 0.3516473819
    • Use Carbon Footprint : 44.7040371444
    • End Of Life Carbon Footprint : 22.2106845092
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 2532
    • ROHS Eur Full Compliance Status : Compliant
    • ROHS Eur Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • China ROHS Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : L - LOB initialized
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : COMMERCIAL
    • Market Segmentation : Commercial
    • H And D Domain : Safety
    • H And D Subrange : COM
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : ENCLOSURES
    • H And D Enrichment Class 3 : Panel components
    • H And D Enrichment Class 4 : Panelboard interior
    • Energy Efficiency Optimized : False
    • Load Center Type : main lugs
    • Material : copper
    • Number Of Spaces : 54
    • Package Weight Lbs : 9.525 kg
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : interiors
    • Returnability : No
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 131 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 131.2686453074
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : interiors
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=423257420&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 131.2686453074
    • Environmental Disclosure : ENVPEP2303004
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Specifications
    • Country of Origin : Mexico
